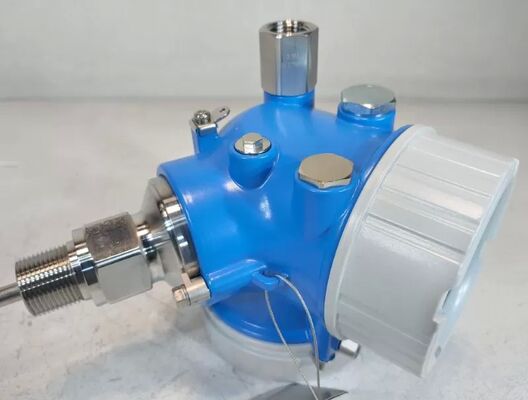

E+H FMP51-PRRQ5/0 Levelflex Guided Wave Radar Level Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. : FMP51-PRRQ5/0
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Endress+Hauser (E+H) FMP51-PRRQ5/0 is a Levelflex series guided wave radar transmitter designed for continuous liquid level and layer interface measurement in process industrial tanks, vessels and pipelines. Built with Endress+Hauser’s Multi-Echo Tracking algorithm and HistoROM data storage, FMP51-PRRQ5/0 delivers stable, drift-free readings regardless of foam, vapor, tank baffles, or fluctuating medium dielectric constants. This model supports rod, rope and coaxial probe configurations, covering low to ultra-long measurement ranges under extreme process temperature and pressure conditions. Compliant with IEC 61508 SIL3 safety standards, it carries global explosion-proof certifications for chemical, oil & gas, food & beverage, pharmaceutical and water treatment industrial environments.
Detail:
| Specification Item |
FMP51-PRRQ5/0 Standard Parameter |
| Product Series |
Endress+Hauser Levelflex FMP51 |
| Full Model Code |
FMP51-PRRQ5/0 |
| Measurement Principle |
Guided Wave Radar (Time-of-Flight) |
| Measurable Media |
Liquids, slurries, viscous pastes, liquid interface layers |
| Minimum Medium Dielectric Constant (DK) |
Rod: >1.6; Rope: >1.6–1.9; Coaxial: >1.4 |
| Measurement Accuracy |
Rod/Coax/Rope ≤15m: ±2 mm; Rope >15m: ±10 mm |
| Maximum Measuring Range |
Rod probe: 10 m; Rope probe: 45 m; Coaxial probe: 6 m |
| Process Temperature Range |
-50 °C to +200 °C (-58 °F to +392 °F) |
| Process Pressure Limit |
Vacuum to 40 bar (Vacuum to 580 psi) |
| Ambient Operating Temperature |
-40 °C to +80 °C (-40 °F to +176 °F) |
| Blocking Distance |
Coax probe: 0 mm; Rod/Rope ≤8m: 200 mm; Rod/Rope >8m: 2.5% probe length |
| Safety Integrity Level |
SIL3 (IEC 61508 certified) |
| Data Storage |
HistoROM integrated data memory for on-site commissioning backup |
| Core Measurement Algorithm |
Multi-Echo Tracking anti-interference processing |
| Configuration Category |
FMP51-PRRQ5/0 Standard Details |
| Supported Probe Types |
Solid Rod, Flexible Rope, Coaxial |
| Wetted Material Options |
316L stainless steel, Alloy C, industrial ceramic, PFA lining (coax only) |
| Standard Process Connections |
3/4" NPT thread, DN50/DN80 flange, Tri-Clamp hygienic fitting |
| Supply Voltage |
12 VDC to 36 VDC two-wire loop power |
| Signal Output Protocol |
4–20 mA HART, PROFIBUS PA, Modbus optional |
| Cable Gland Standard |
M20 metal cable gland, IP66/IP68 ingress protection |
| Global Certifications |
ATEX, IECEx, UL explosion protection, WHG, marine ship approval, EN10204-3.1 material test |
| Mounting Clearance Requirement |
Metal tank wall ≥50mm gap; Plastic tank wall ≥300mm gap; Internal baffles ≥300mm probe clearance |
| Storage Temperature |
-40 °C to +80 °C |
| Instrument Housing Material |
Die-cast aluminum, corrosion-resistant coating |
