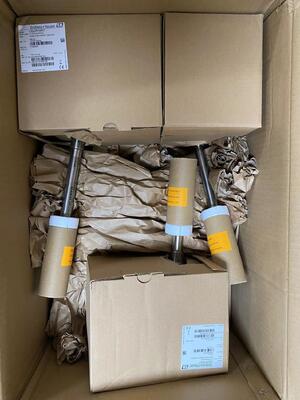

E+H FTL51B-3M7P5/0 Liquiphant Tuning Fork Level Switch
Product Details:
Manufacturer : Endress+Hauser
Product No. : FTL51B-3M7P5/0
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Endress+Hauser FTL51B-3M7P5/0 is a standard Liquiphant vibronic tuning fork point level sensor developed by Endress+Hauser (E+H), designed for reliable liquid high/low limit detection in process tanks, pipelines and storage vesselsEndress+Ha.... This FTL51B variant features built-in HART digital communication, stainless steel wetted components and full functional safety certification compliant with IEC 61508 SIL2/SIL3 standards.
Detail:
| Parameter Item |
Standard Value of FTL51B-3M7P5/0 |
| Full Model Code |
Endress+Hauser FTL51B-3M7P5/0 |
| Measuring Principle |
Vibronic resonant tuning fork |
| Detected Medium |
All types of homogeneous liquids |
| Minimum Medium Density |
0.5 g/cm³ (0.4 g/cm³ configurable via parameter) |
| Allowable Medium Viscosity |
≤ 10,000 mPa·s |
| Communication Protocol |
4–20mA HART (2-wire loop-powered) |
| Optional Wireless Interface |
Bluetooth® (SmartBlue App configuration) |
| Supply Voltage Range |
DC 10.5 V ~ 32 V |
| Loop Current Consumption |
4 mA (uncovered fork) ~ 20 mA (covered fork) |
| Power Consumption |
< 1.3 W |
| Functional Safety Grade |
SIL2 / SIL3 per IEC 61508 |
| Safety Approval |
WHG overfill protection certification |
| Diagnostic Function |
Heartbeat Technology continuous self-test |
| Test Mode |
External push-button test / magnetic remote test |
| Output Signal Mode |
SIO 8/16mA switch mode + continuous frequency proportional output |
| Galvanic Isolation |
Isolated between sensor probe and electronic circuit |
| Parameter Item |
Standard Value of FTL51B-3M7P5/0 |
| Wetted Material |
316L stainless steel tuning fork & extension tube |
| Process Temperature Range |
-50 °C ~ +150 °C (-58 °F ~ +302 °F) |
| Max Process Overpressure |
100 bar (1450 psi), full vacuum compatible |
| Ambient Operating Temperature |
-40 °C ~ +60 °C |
| Storage/Transport Temperature |
-50 °C ~ +85 °C |
| Protection Class |
IP66 / IP67 (aluminum die-cast housing) |
| Standard Process Connection |
ISO 228 G thread (3M order variant thread spec) |
| Max Allowable Flow Velocity |
5 m/s (medium density ≥0.8 g/cm³) |
| Permitted Relative Humidity |
5% ~ 95% RH, non-condensing |
| Vibration Resistance |
Compliant with IEC 60068-2-6 industrial vibration standard |
| Shock Resistance |
Compliant with IEC 60068-2-27 mechanical shock standard |
| Global Certifications |
ATEX, IECEx, CSA, NEPSI, DNV GL marine, CRN, NACE MR0175 |
| Explosion Temperature Class |
T4 / T5 / T6 configurable per application |
| Mounting Orientation |
Any vertical/horizontal installation angle inside tanks/pipes |
| Max Lateral Load Capacity |
75 Nm dynamic torque on probe extension |
