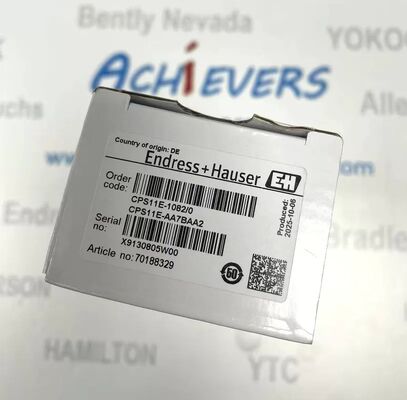

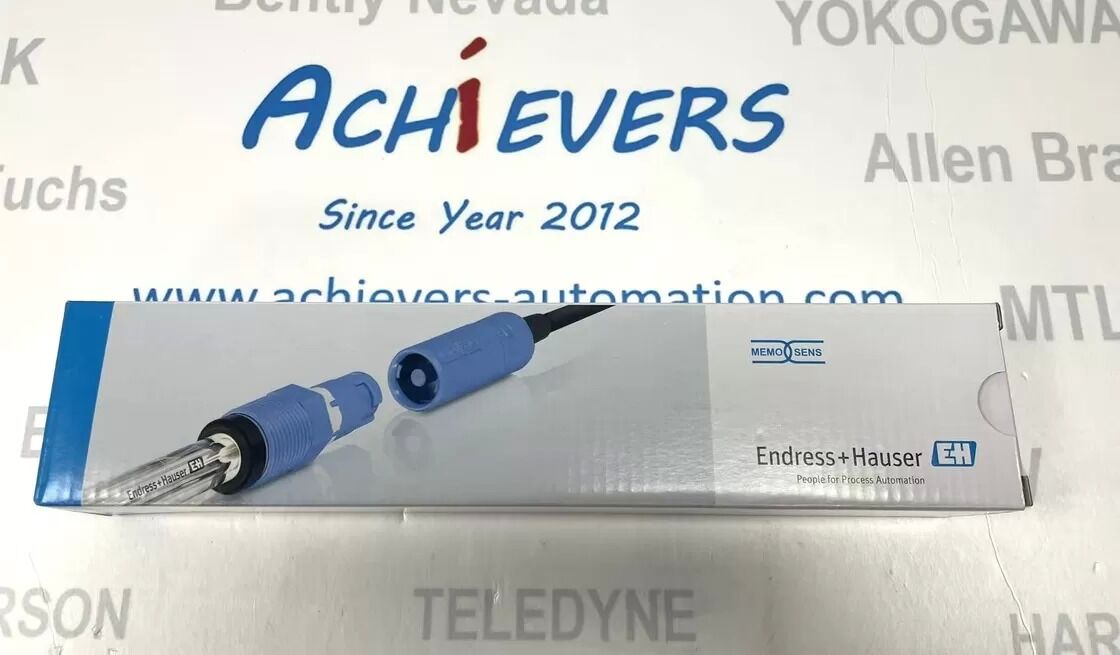

E+H cps11e endress Memosens 2.0 Digital pH Electrode
Product Details:
Manufacturer : Endress+Hauser
Product No. : cps11e
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The

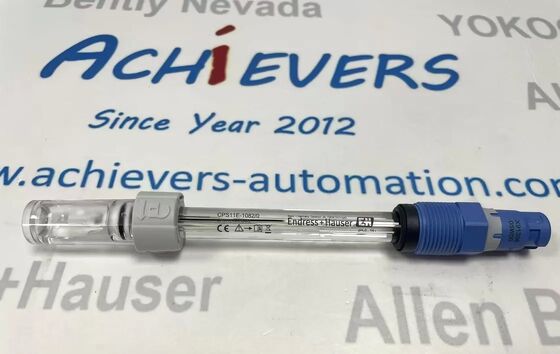

E+H CPS11E is a universal digital pH measuring electrode built on Memosens 2.0 inductive non-contact transmission technology, designed for stable industrial liquid analysis across water, wastewater, chemical, food & beverage and environmental engineering sectors
BDIH Downl....
This all-purpose pH sensor features a dirt-repellent ring-shaped PTFE diaphragm, integrated NTC 30K temperature sensor and on-board calibration data storage. Three glass membrane variants (A/B/F) cover different pH ranges, temperature limits and medium compatibility, supporting autoclave sterilization and offline lab calibration without field re-calibration. It eliminates signal drift caused by cable moisture, corrosion and electrical interference, delivering long-term stable pH measurement with low maintenance requirements.
Detail:
| Parameter Item |
Standard CPS11E Technical Value |
| Full Product Series |
CPS11E Memosens 2.0 pH Electrode |
| Brand |
Endress+Hauser (E+H) |
| Measuring Principle |
Glass pH membrane + Ag/AgCl double junction reference |
| pH Measuring Ranges |
Type A: 1–12 pH
Type B: 0–14 pH
Type F: 0–10 pH |
| Built-in Temperature Sensor |
NTC 30K, full-range automatic temperature compensation |
| Digital Transmission |
Memosens 2.0 inductive non-contact signal transfer |
| Ingress Protection |
IP68 (10m water column, 45 days immersion) |
| Measuring Accuracy |
±0.01 pH under stable medium conditions |
| Minimum Conductivity Requirement |
50 μS/cm (0.1 μS/cm for AS low-conductivity variant) |
| On-Sensor Storage |
Stores calibration records, temperature & process load history |
| EMC Compliance |
EN 61326-1:2013 industrial electromagnetic standard |
| Specification Category |
Detailed Technical Data |
| Shaft Material |
Borosilicate process glass, outer PPS reinforced housing |
| Shaft Diameter |
12 mm (0.47 in) |
| Standard Shaft Length Options |
120 mm, 225 mm, 360 mm, 425 mm |
| Diaphragm Type |
Sterilisable ring PTFE anti-fouling junction |
| Process Temperature Limits |
Type A: -15 ~ 80°C
Type B: 0 ~ 135°C (autoclavable)
Type F: 0 ~ 70°C |
| Absolute Working Pressure |
Type A/B: 0.8–17 bar (11.6–246.5 psi)
Type F: 0.8–7 bar (11.6–101.5 psi) |
| Process Connection Thread |
Pg 13.5 standard interface |
| Explosion Protection |
Optional ATEX / IECEx / CSA hazardous area certification |
| Compatible Transmitters |
Endress+Hauser CM42, CPM153, CPM223 Memosens liquid transmitters |
| Sterilization Capacity |
Steam autoclavable up to 135°C (Type B version) |
| Anti-Poisoning Design |
Optional TA double gel junction against sulfide & cyanide contamination |
Brand
