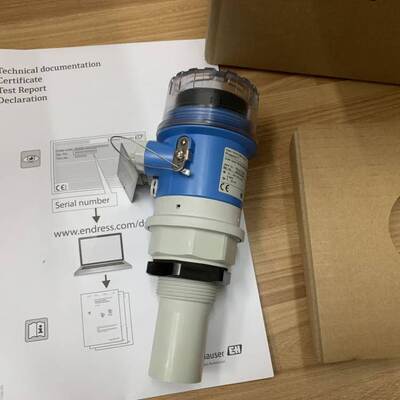

E+H FMU30-1020/0 Prosonic FMU30 Compact Ultrasonic Level Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. : FMU30-1020/0
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The measurement principle relies on ultrasonic sound wave emission: the transducer sends sound pulses toward the liquid or solid surface, records echo travel time, and converts time-of-flight data into linear level, volume or distance values via internal signal processing. Non-contact operation avoids direct medium contact, making the FMU30-1020/0 immune to corrosion, abrasion, sticky coating, and medium viscosity interference common to contact-type level sensors. Advanced digital echo suppression filters out false signals from tank walls, internal pipes, agitators and surface foam to stabilize measurement accuracy.
Detail:
| Parameter Group |
Specification Item |
Official Datasheet Standard Value |
| Measuring Principle |
Detection Technology |
Time-of-flight ultrasonic echo measurement, digital echo processing |
| Measuring Range (FMU30-1020/0) |
Min / Max Distance |
0.25 m minimum dead band ~ 2.0 m maximum measuring range |
| Ultrasonic Frequency |
Transducer Operating Frequency |
Approx. 75 kHz |
| Standard Measurement Accuracy |
Full Scale Deviation |
±3 mm or ±0.15% of measured distance (whichever greater) |
| Measurement Resolution |
Output Signal Step |
0.01% FS digital resolution, 4–20mA analog 16-bit conversion |
| Echo Suppression Function |
False Signal Filtering |
Auto-learn tank obstacle mapping, adjustable noise attenuation threshold |
| Process Medium Compatibility |
Supported Media |
Clean liquids, slurries, fine-grained bulk solids; not for heavy foam / high dust silos |
| Power Supply Architecture |
Wiring Type |
2-wire loop-powered (4–20mA+HART) |
| Supply Voltage Operating Window |
DC Loop Voltage |
12 V DC ~ 30 V DC; Ex ia hazardous zone version: 12–28 V DC |
| Loop Load Resistance Max |
Allowable Cable Load |
Max 500 Ω at 24 V DC supply |
| Analog Output Signal |
Standard Loop Signal |
4 mA (empty) to 20 mA (full), configurable reverse output |
| Digital Communication Protocol |
HART Version |
HART 7, supports burst mode, multi-drop operation |
| Fault Signal Definition |
Error Current Output |
3.6 mA (under-range) / 22 mA (over-range) / 2.4 mA (device fault) |
| Optional Wireless Interface |
Bluetooth SmartBlue |
2.4 GHz BLE for mobile parameter setup, log & diagnostic reading |
| Response Time Adjustable Range |
Measurement Update Delay |
0.5 s ~ 60 s configurable digital damping |
| EMC Compliance Standards |
Electromagnetic Compatibility |
IEC 61326, NE 21 heavy industrial site standard |
| Diagnostic Self-Monitoring Items |
Built-In Health Check |
Transducer fault, echo loss, power undervoltage, memory error alarm |
| Classification Category |
Attribute Item |
Standardized Technical Parameter |
| Model Defined Process Connection (FMU30-1020/0) |
Thread Standard |
G1½ external male thread for tank nozzle mounting |
| Transducer Wetted Material |
Sound Emission Face |
PVDF polyvinylidene fluoride chemical resistant plastic |
| Main Enclosure Housing Material |
Electronic Body |
Glass-fiber reinforced PBT plastic, corrosion resistant |
| Cable Entry Interface |
Wiring Gland Standard |
Integrated M16 cable gland, sealed single cable entry |
| Enclosure Ingress Protection Rating |
Waterproof & Dustproof Class |
IP68 per EN 60529; fully submersible short-term temporary immersion |
| Overall Unit Dimensions (L × Ø) |
Compact Housing Size |
Approx. 165 mm length × 60 mm outer diameter |
| Net Unit Weight |
Single Transmitter Mass |
Approx. 380 g |
| Ambient Operating Temperature Range |
Outdoor / Cabinet Installation |
-40 °C ~ +60 °C (-40 °F ~ +140 °F) |
| Long-Term Storage Temperature Limit |
Offline Storage Condition |
-45 °C ~ +70 °C |
| Process Medium Temperature Limit |
Air Medium Above Liquid Surface |
-20 °C ~ +60 °C (no direct liquid contact, non-contact design) |
| Process Pressure Allowance |
Vessel Internal Pressure |
-0.5 bar vacuum to +2 bar gauge pressure |
| Mechanical Vibration Resistance |
Shock & Vibration Standard |
IEC 60068-2-6, 10–2000 Hz, 10 m/s² continuous vibration tolerance |
| Hazardous Area Explosion Certifications |
Global Approvals |
ATEX II 1/2G Ex ia IIC, ATEX II 1/2D Ex ia, IECEx, FM, CSA C/US, EAC Ex |
| General Compliance Marks |
Global Industrial Certifications |
CE marking, RoHS industrial directive compliant |
| Allowable Mounting Angle |
Installation Flexibility |
Vertical downward orientation only; ±10° minor angular tolerance |
| Onboard Visual Status Indication |
LED Diagnostic Lights |
Green power LED, yellow measurement active LED, red fault alarm LED |
| Tank Shape Calculation Libraries |
Built-In Volume Curves |
Cylindrical vertical, cylindrical horizontal, spherical, custom linear tank curves |
