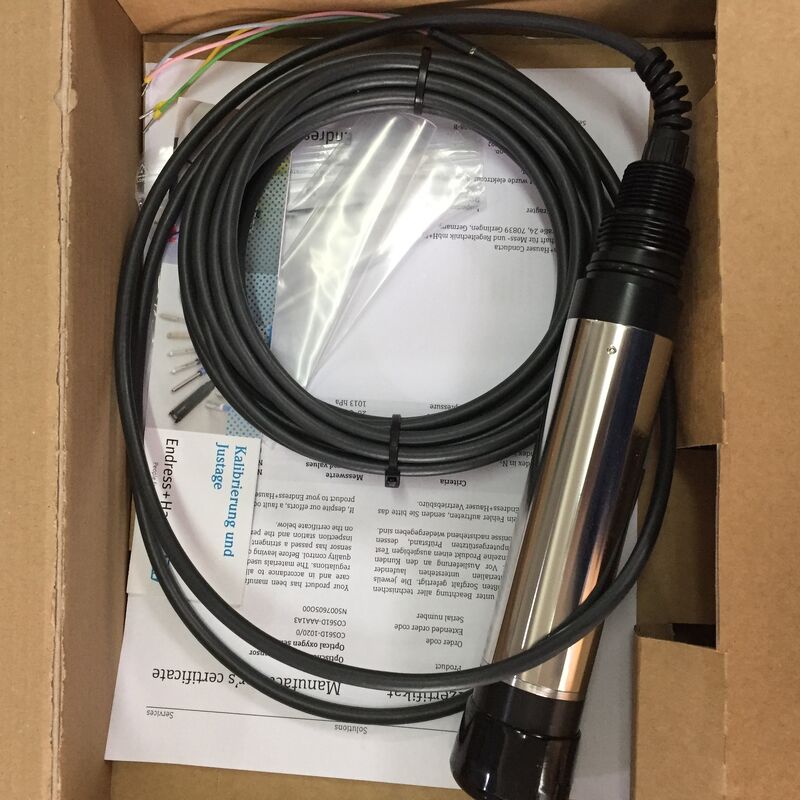

E+H COS61 Digital Dissolved Oxygen Sensor
Product Details:
Manufacturer : Endress+Hauser
Product No. : COS61
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
COS61 adopts classic polarographic electrode design with a semi-permeable oxygen membrane to selectively capture dissolved oxygen molecules in aqueous media, eliminating cross-interference from most common water-borne contaminants. Integrated Memosens digital architecture converts raw electrode signals directly at the probe head, separating analog measurement circuits from transmission cables to resist EMI/RFI noise in industrial plant environments. The fully sealed IP68 submersible housing enables long-term permanent immersion without regular retrieval, while standardized 12 mm probe diameter supports pairing with E+H FCPS flow cells and CYH submersible holders.
Detail:
| Parameter Item |
Standard Specification of Endress+Hauser COS61 |
| Brand |
Endress+Hauser (E+H) |
| Full Model Code |
COS61 |
| Product Series |
COS Dissolved Oxygen Polarographic Sensor |
| Measurement Principle |
Polarographic dissolved oxygen electrode |
| Signal Interface |
Memosens digital non-contact inductive transmission |
| Measurable DO Concentration Range |
0 – 20 mg/L (0 – 200 % air saturation) |
| Measurement Accuracy |
± 0.2 mg/L (0 – 8 mg/L); ± 2.5 % FS (8 – 20 mg/L) |
| Integrated Compensation |
Built-in Pt1000 temperature sensor, automatic DO compensation |
| Medium Operating Temperature |
0 ℃ ~ 50 ℃ continuous immersion |
| Ambient Air Temperature |
-20 ℃ ~ +60 ℃ |
| Maximum Submersion Pressure |
10 bar (100 m water depth) |
| Ingress Protection Rating |
IP68 (permanent full submersion) |
| Probe Outer Diameter |
12 mm standard industrial analytical probe size |
| Standard Probe Length Variants |
120 mm / 220 mm / 360 mm factory options |
| Membrane Cap Service Cycle |
6 – 12 months under typical wastewater conditions |
| Electrolyte Cartridge Lifespan |
12 months standard operation |
| Calibration Storage |
Internal Memosens chip stores up to 10 calibration datasets |
| Response Time T90 |
< 60 seconds in clean aqueous media |
| Medium Flow Requirement |
≥ 0.05 m/s flow velocity for stable readings |
| Net Weight (220mm base length) |
165 g |
| Compliance Standards |
IEC 60584, EPA 40 CFR water monitoring, RoHS, Memosens protocol standard |
| Component Name |
Raw Material Grade |
Functional Description for E+H COS61 |
| Main Wetted Probe Shaft |
AISI 316L Stainless Steel |
High corrosion resistance for wastewater, surface water and low-salinity industrial effluent, anti-sludge surface finish |
| Oxygen Permeable Membrane Cap |
PP Polypropylene Frame + PTFE Semi-Permeable Membrane |
Selectively permeates oxygen molecules, blocks liquid ions and suspended solids, replaceable consumable component |
| Internal Electrode Assembly |
Platinum Cathode / Silver/Silver Chloride Anode |
Polarographic core electrode pair for dissolved oxygen redox reaction signal generation |
| Internal Electrolyte Filling Solution |
Potassium Chloride saturated aqueous electrolyte |
Stable ion conduction between cathode and anode, supplied in pre-filled replaceable cartridges |
| Memosens Inductive Head Housing |
Reinforced PA66 UL94 V0 Flame Retardant Plastic |
Sealed digital signal transmission cavity, non-contact cable connection without exposed metal contacts |
| Internal Pt1000 Temperature Sensor |
Platinum thin-film resistance element |
Real-time medium temperature detection to correct temperature-dependent DO solubility errors |
| Probe Sealing O-Rings |
EPDM standard sealing elastomer |
Water-tight isolation of internal electronic components, resistant to algae cleaners and mild oxidants |
| Membrane Cap Lock Thread |
AISI 316 Stainless Steel threaded collar |
Hand-tightened lock structure for quick membrane/electrolyte replacement without specialized tools |
| Internal Signal PCB Board |
FR4 high-temperature insulating printed circuit board |
Hosts Memosens memory chip and electrode signal conditioning circuits, fully potted waterproof construction |
| Cable Connection Inductive Coil |
Copper winding encapsulated in epoxy resin |
Inductive signal coupling eliminates galvanic contact points to prevent corrosion at wiring joints |
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
