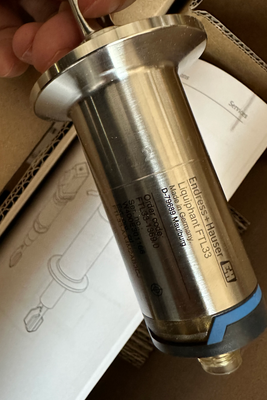

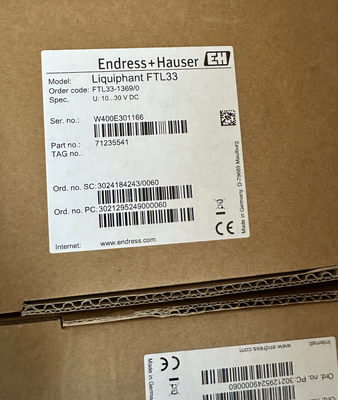

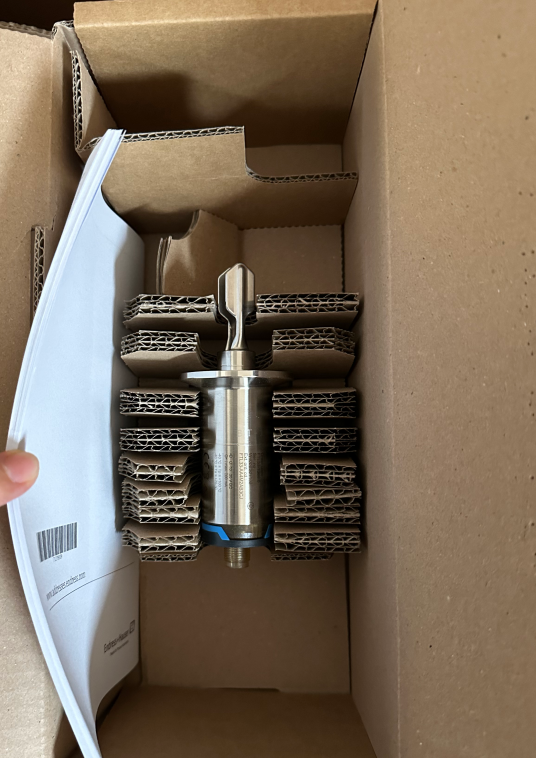

E+H FTL33-1369/0 Liquiphant Hygienic Vibronic Tuning Fork Level Switch
Product Details:
Manufacturer : Endress+Hauser
Product No. :FTL33-1369/0
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The E+H FTL33-1369/0 belongs to Endress+Hauser Liquiphant FTL33 sanitary vibronic tuning fork series, adopting piezoelectric resonant frequency shift measurement principle for reliable point-level detection of homogeneous liquid medium with minimum density ≥0.7 g/cm³ (custom ≥0.5 g/cm³ optional). This specific 1369/0 variant is equipped with standard Tri-Clamp DN25~DN38 hygienic clamping process connection, dual 3-wire PNP switching + IO-Link digital communication output, full 1.4404 (AISI316L stainless steel) wetted components and seamless stainless steel housing complying with food sanitary standard, supporting CIP/SIP high-temperature on-site cleaning for food, beverage and pharmaceutical production lines. Built-in continuous electronic self-diagnosis circuit monitors tuning fork operating status in real time to eliminate false triggering caused by component aging or damage; plug-and-play installation without on-site calibration required, measurement performance remains stable against liquid foam, medium adhesion, pipeline turbulence and fluid conductivity fluctuation. Mainly applied for tank overflow prevention and pump dry-run protection in sanitary-grade fluid processing industries.
Detail:
| Parameter Item |
Standard Technical Specification |
| Full Model Code |
FTL33-1369/0 (E+H Liquiphant FTL33 Sanitary Series) |
| Measuring Principle |
Vibronic tuning fork resonant frequency variation detection |
| Minimum Detectable Medium Density |
≥0.7 g/cm³; custom option ≥0.5 g/cm³ available |
| Output Configuration |
3-wire DC PNP switch + IO-Link digital communication |
| Rated Operating Power Supply |
DC 10 V ~ 30 V |
| Max PNP Switch Load Current |
200 mA |
| Onboard Core Function |
Full electronic self-monitoring + local LED working status indicator |
| Adjustable Switch Delay |
Configurable 0.5s~10s via IO-Link parameter programming |
| On-site Test Feature |
External magnetic test point for non-disassembly function inspection |
| Spec Classification |
Detailed Parameter Data |
| Wetted Tuning Fork Material |
1.4404 / AISI316L stainless steel |
| Standard Process Connection |
Sanitary Tri-Clamp DN25~DN38 |
| Housing Material |
Solid seamless 316L stainless steel |
| Ingress Protection Grade |
IP67, optional IP69K for high-pressure washdown |
| Ambient Working Temperature |
-40°C ~ +70°C (-40°F ~ +158°F) |
| Allowed Process Medium Temperature |
-40°C ~ +150°C (-40°F ~ +302°F) |
| Absolute Process Pressure Range |
Full vacuum ~ 40 bar abs (0~580 PSI maximum overpressure) |
| Wetted Surface Roughness |
Ra 0.76μm sanitary finish for food contact |
| Sanitary Certification |
FDA, 3A compliant, EN10204-3.1 material test certificate |
