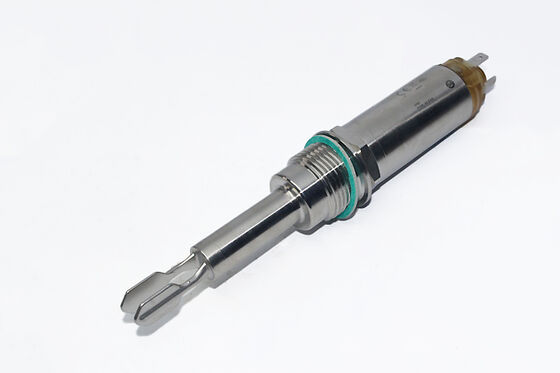

E+H FTL31-1E40/40 Liquiphant Tuning Fork Point Level Switch
Product Details:
Manufacturer : Endress+Hauser
Product No. :FTL31-1E40/40
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The E+H FTL31-1E40/40 belongs to Endress+Hauser Liquiphant FTL31 compact vibronic tuning fork series, operating based on resonant frequency shift principle of piezoelectric-driven tuning fork for reliable point-level detection of homogeneous liquids with minimum medium density ≥0.7 g/cm³. This specific 1E40/40 variant is equipped with ISO G1 threaded process connection, integrated IO-Link + 3-wire PNP switching output, full 316L stainless steel wetted component and compact all-metal housing without explosion-proof certification for non-hazardous general industrial sites. The built-in continuous self-diagnosis circuit monitors fork vibration status in real time to avoid false switching caused by component failure; no on-site calibration or parameter tuning is required after installation to realize plug-and-play commissioningEndress+Hauser. Unaffected by liquid conductivity, surface foam, medium adhesion and pipeline turbulence, this unit widely serves mechanical processing, hydraulic station, fine chemical and water treatment industries for tank overflow prevention and pump dry-running protection.
Detail:
| Parameter Item |
Standard Technical Specification |
| Full Model Code |
FTL31-1E40/40 (E+H Liquiphant FTL31 Series) |
| Measuring Principle |
Vibronic tuning fork resonant frequency detection |
| Minimum Detectable Medium Density |
≥0.7 g/cm³ (optional ≥0.5 g/cm³ on customized version) |
| Standard Output Mode |
3-wire PNP DC switch + IO-Link digital communication |
| Rated Supply Voltage |
DC 10~30V |
| Max Switch Load Current |
200mA (PNP contact capacity) |
| Built-in Function |
Continuous electronics self-monitoring + LED onsite status indicator |
| Switch Delay |
Configurable adjustable delay via IO-Link parameter setup |
| External Test Function |
Magnetic test point for on-site functional inspection without disassembly |
| Spec Classification |
Detailed Parameter Data |
| Wetted Tuning Fork Material |
1.4404 / 316L stainless steel |
| Standard Process Connection |
ISO G1 external thread |
| Housing Material |
Seamless 316L stainless steel |
| Ingress Protection Rating |
IP67 |
| Working Ambient Temperature |
-40°C ~ +70°C (-40°F ~ +158°F) |
| Allowed Process Medium Temp |
-40°C ~ +150°C (-40°F ~ +302°F)Endress+Hauser |
| Absolute Process Pressure Range |
Full vacuum ~ 40 bar abs (0~580 PSI max overpressure)Endress+Hauser |
| Surface Roughness of Wetted Part |
Ra 3.2μm standard finish |
| Certification Approval |
EN10204-3.1 material cert, DNV/LR/ABS marine certification |
