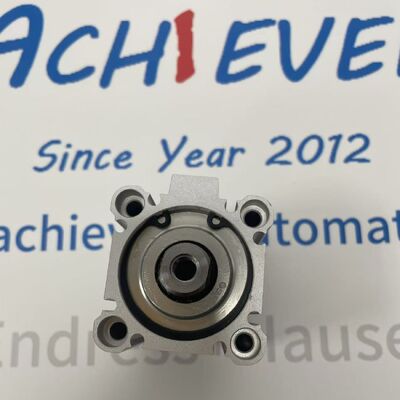

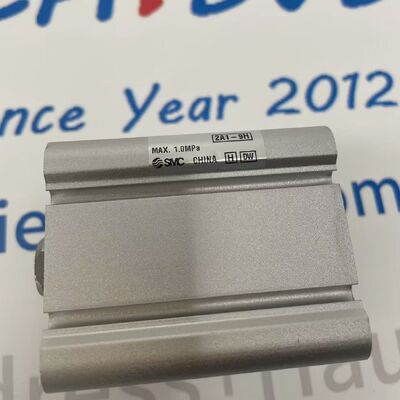

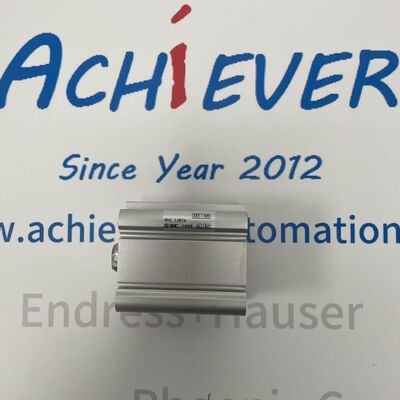

SMC CDQ2B40-25DZ high-performance double-acting pneumatic cylinder
Product Details:
Manufacturer : SMC
Product No. :CDQ2B40-25DZ
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The SMC CDQ2B40-25DZ is a high-performance double-acting pneumatic cylinder designed for precise linear actuation in industrial automation systems. As a core product of SMC Corporation (a global leader in pneumatic components and automation solutions), the CDQ2B40-25DZ integrates a compact design with reliable operation, making it ideal for a wide range of industrial scenarios that require smooth, efficient linear motion in limited installation space.
Description:
|
Specification Item
|
Details
|
|
Product Model
|
CDQ2B40-25DZ
|
|
Manufacturer
|
SMC Corporation (SMC)
|
|
Series
|
CDQ2 Series (Compact Pneumatic Cylinder)
|
|
Cylinder Type
|
Double-Acting, Single Rod
|
|
Bore Size
|
40 mm
|
|
Stroke Length
|
25 mm
|
|
Operating Pressure Range
|
0.15 MPa ... 1.0 MPa (1.5 bar ... 10 bar)
|
|
Operating Speed Range
|
50 mm/s ... 500 mm/s
|
|
Cushioning Type
|
Built-in Shock Absorber (Both Ends)
|
|
Port Thread Size
|
Rc1/8 (BSPP)
|
|
Rod Diameter
|
16 mm
|
|
Rod End Type
|
Male Thread (M16 x 1.5)
|
|
Standard Compliance
|
ISO 6431, JIS B8370
|
|
Characteristic Item
|
Details
|
|
Mounting Options
|
Basic Mounting (B-Type), Optional Foot, Flange Mounts
|
|
Cylinder Tube Material
|
Aluminum Alloy (Hard Anodized)
|
|
Piston Material
|
Aluminum Alloy
|
|
Piston Rod Material
|
Stainless Steel (SUS304)
|
|
Seal Material
|
NBR (Nitrile Rubber), Urethane
|
|
Overall Length (Approx.)
|
145 mm (without mounting accessories)
|
|
Product Weight (Approx.)
|
380 g
|
|
Ambient Operating Temperature
|
–10 °C ... +60 °C (without lubrication); 0 °C ... +60 °C (with lubrication)
|
|
Ambient Storage Temperature
|
–20 °C ... +80 °C
|
|
|
IP65 (When Equipped with Dust Cover)
|
|
Lubrication Requirement
|
Lubrication Optional (Oil-Free Operation Possible)
|
Brand
