Festo Vacuum Generator Cartridge OASP-G4-14-L3-UA High Suction Rate 3-stage

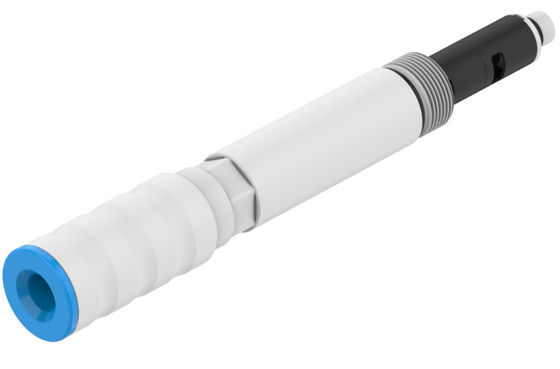

Festo Vacuum generator cartridge OASP-G4-14-L3-UA

Technical Data

• Nominal width of Laval nozzle
• 1.4 mm
• Muffler construction type
• Open
• Ejector characteristics
• High suction rate
• Integrated function
• Pneumatic muffler open
• Structural design
• Vacuum generator 3-stage
• Symbol
• 00991489
• Operating pressure for max. suction rate
• 0.8 MPa
• Operating pressure for max. suction rate
• 8 bar
• Operating pressure for max. suction rate
• 116 psi
• Operating pressure
• 0.1 MPa ... 0.8 MPa
• Operating pressure
• 1 bar ... 8 bar
• Operating pressure
• 14.5 psi ... 116 psi
• Operating pressure for max. vacuum
• 0.79 MPa
• Operating pressure for max. vacuum
• 7.9 bar
• Operating pressure for max. vacuum
• 114.55 psi
• Max. vacuum
• 81 %
• Nominal operating pressure
• 0.6 MPa
• Nominal operating pressure
• 6 bar
• Nominal operating pressure
• 87 psi
• Max. suction rate with respect to atmosphere
• 245 l/min
• Air supply time at nominal operating pressure
• 0.37 s
• Operating medium
• Compressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot media
• Operation with oil lubrication not possible
• Corrosion resistance class (CRC)
• 2 - Moderate corrosion stress
• LABS (PWIS) conformity
• VDMA24364-B1/B2-L
• Suitability for the production of Li-ion batteries
• Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils
• Temperature of medium
• 0 °C ... 60 °C
• Cleaning advice
• Soap suds (except silencers)
• Noise level at nominal operating pressure
• 60 dB(A)
• Ambient temperature
• 0 °C ... 60 °C
• Product weight
• 123 g
• Type of mounting
• Direct fastening via thread
• Seals material
• NBR
• Female nozzle material
• PA-reinforced
• Muffler material
• PA-reinforced
• PU foam
• Material of jet nozzle
• PA-reinforced
• Mounting position
• Any
