Festo Vacuum Generator VN-10-H-T3-PI4-VI4-RI4 Operation With Oil Lubrication Not Possible

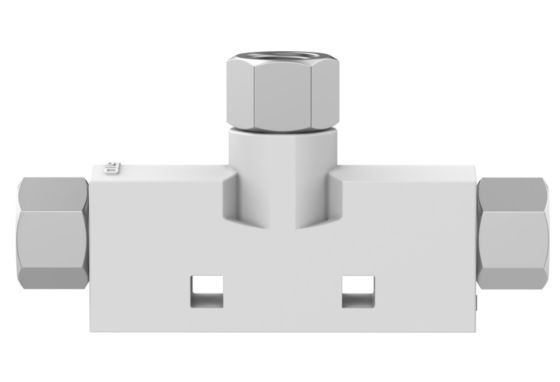

Festo Vacuum generator VN-10-H-T3-PI4-VI4-RI4

Technical Data

• Nominal width of Laval nozzle
• 0.95 mm
• Width dimension
• 14 mm
• Mounting position
• Any
• Ejector characteristics
• High vacuum
• Standard
• Structural design
• T-shape
• Symbol
• 00991490
• Operating pressure for max. suction rate
• 3.1 bar
• Operating pressure
• 1 bar ... 8 bar
• Operating pressure for max. vacuum
• 4.5 bar
• Max. vacuum
• 89 %
• Nominal operating pressure
• 6 bar
• Max. suction rate with respect to atmosphere
• 25 l/min
• Air supply time at nominal operating pressure
• 1.1 s
• Operating medium
• Compressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot media
• Operation with oil lubrication not possible
• Corrosion resistance class (CRC)
• 1 - Low corrosion stress
• LABS (PWIS) conformity
• VDMA24364-B1/B2-L
• Temperature of medium
• 0 °C ... 60 °C
• Ambient temperature
• 0 °C ... 60 °C
• Max. tightening torque
• 0.5 Nm
• Product weight
• 22 g
• Type of mounting
• With through-hole
• With accessories
• Pneumatic connection 1
• G1/8
• Pneumatic connection 3
• G1/8
• Vacuum connection
• G1/8
• Material of connecting thread
• Wrought aluminum alloy, anodized
• Note on materials
• RoHS-compliant
• Seals material
• NBR
• Female nozzle material
• POM
• Housing material
• POM-reinforced
• Material of jet nozzle
• Wrought aluminum alloy
