Product Details:
Manufactuer : ROSEMOUNT
Product No. : 3900-01-10
Product Type : General Purpose pH/ORP Sensor
Product Description

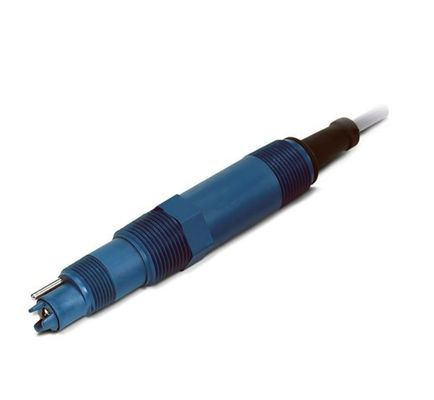

The Rosemount 3900 pH Sensor / ORP Sensor features a double junction reference that aids in the sensors' resistance to harsh environments and helps prolong sensor life. The double junction protects the reference element from poisoning ions-such as ammonia, chlorine, cyanides, and sulfides. Both sensors are made with a porous Teflon® junction. The robust ph/ORP sensor design provides reliability in a wide range of aqueous solutions found in pipelines, open tanks or ponds.
Specification:
Operating Temperature:–10° to 100°C (14° to 212°F)
Max. Operating Pressure:Maximum Pressure: 790 kPa [abs] (100 psig) at 100°C (212°F)
Materials of Construction:Stainless steel, glass, Teflon®, polyphenylene sulfide (PPS), EPDM and silicone (If selecting the ORP sensor, an additional wetted material is Platinum.)
Process Connection:Front facing: 3⁄4" and 1" MNPT; Rear facing: 1" MNPT
Features:
Extended pH sensor / ORP sensor life and protection against poisoning ions using a double junction reference
Enhanced performance and increased life with cracking resistant glass
Maximum chemical resistance provided by a rugged polyphenylene sulfide body
Operates in sub-zero temperatures down to -10°C (14°F)
Built-in solution ground for advanced diagnostics
pH/ORP sensor body features a one-piece construction with both front facing and rear facing process threads
¾” and 1” MNPT process connections to meet a variety of application installation requirements
SMART enabled for pH measurements
PARTS & ACCESSORIES:
| 24091-00 |
Rosemount™ Cell, Low Flow, .25" Inlet And Outlet |
| 33893-00 |
Rosemount™ Nut, Low Flow Cell |
| 33898-00 |
Rosemount™ Cell, Low Flow Molded |
| 9210012 |
Rosemount™ Buffer Solution, PH 4.01, 16 Oz |
| R508-8OZ |
Rosemount™ ORP Standard, 475mV, 8oz |
| 23555-00 |
Rosemount™ Junction Box, Model 54/5081/1055/Xmt Compatible Preamplifier |
