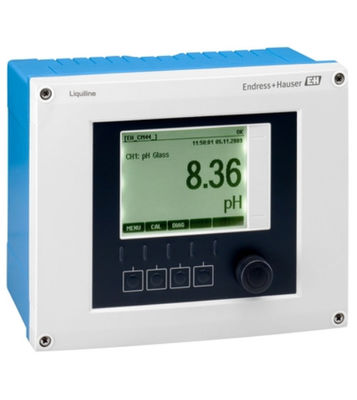

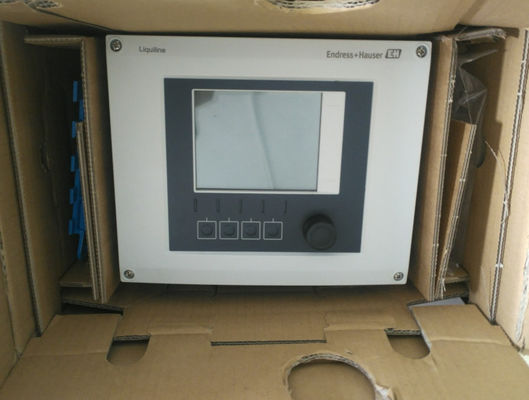

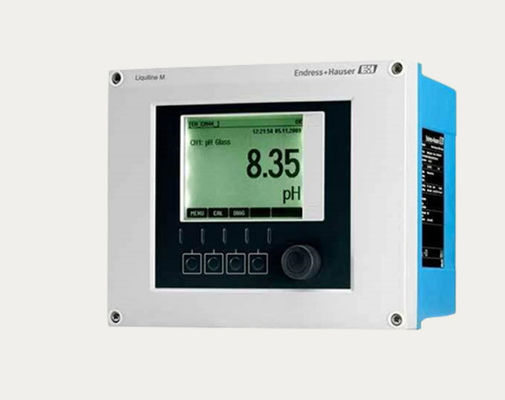

CM442-3PQ7/0 CM442-AAM1A2F010A+AK Endress+Hauser 1-/2-channel transmitter Liquiline CM442
SPECIFICATIONS:
1. Approval: AA Non-hazardous area
2. Sensor Input: M1 1x digital sensor
3. Communication: A2 2x output 0/4...20mA, HART
4. Additional Features: F0 W/o
5. Power supply: 1 100...230VAC (50/60Hz)
6. Cable Entry: 0 Metric
7. Cable Entry Set: A enclosed
8. >Presetting Operation Language: AK Chinese
Specs at a glance
1. Input
1 to 2x Memosens digital input
2x 0/4 to 20mA input optional
2x Digital input optional
2. Output / communication
2 to 8x 0/4 to 20 mA current outputs
Alarmrelay, 2x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet
3. Ingress protection
IP66 / IP67
Field of application
The Liquiline CM442 transmitter allows you to connect up to 2 Memosens sensors of your choice from over 12 measurement parameters. It offers automatic sensor recognition, easy operation, and standardized spare parts with all other devices of the Liquiline platform. With its inputs, outputs, controllers, and math modules, you can even control cleaning systems or dosing pumps. Heartbeat Technology helps you find the ideal balance between measuring point availability and maintenance costs.
Liquiline CM442 is suitable for all industries and their utilities, such as:
- Food & Beverages
- Life Sciences
- Power & Energy
- Water & Wastewater
- Chemicals
- Marine
It features the following communication protocols and interfaces:
- 0/4...20 mA
- HART
- PROFIBUS DP
- Modbus RS485/RTU
- Modbus TCP
- EtherNet/IP
- PROFINET
- Webserver
The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.
Benefits
- Clever simplicity:One controller for all parameters and applications, intuitive user interface, automatic sensor recognition, hot plug & play with pre-calibrated Memosens sensors.
- High flexibility:Universal modules for all parameters minimize spare part stock and allow for easy extension to up to 8 channels at any time.
- Seamless system integration:Unique portfolio of communication standards suits every distributed control system (DCS).
- Simple and safe commissioning:Saving configuration on SD card enables fast set-up on duplicate installations.
- Process control from a distance:Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.
- Higher availability, lower costs:Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.
