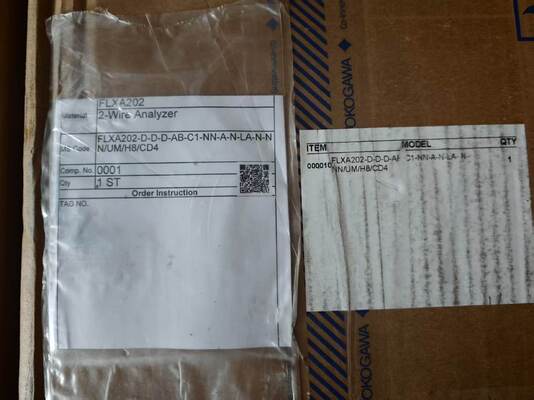

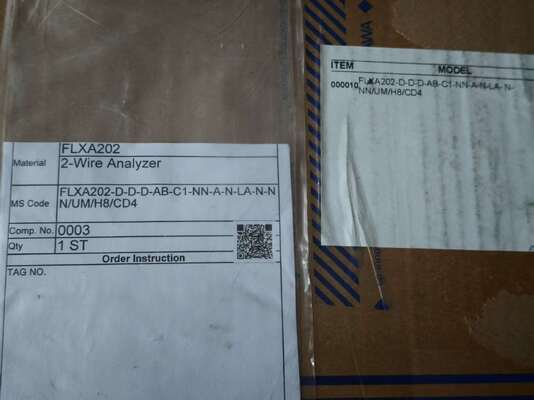

YOKOGAWA FLXA202-D-D-D-AB-C1-NN-A-N-LA-N-NN/UM/H8/CD4 2‑Wire Liquid Analyzer, Yokogawa FLEXA transmitter
Product Details:
Manufacturer : YOKOGAWA
Product No. : FLXA202-D-D-D-AB-C1-NN-A-N-LA-N-NN/UM/H8/CD4
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Yokogawa FLXA202‑D‑D‑D‑AB‑C1‑NN‑A‑N‑LA‑N‑N N/UM/H8/CD4 is a modular 2‑wire dual‑channel liquid analyzer from Yokogawa FLEXA™ series (OpreX Analyzers product family). It supports pH/ORP, conductivity, inductive conductivity and dissolved‑oxygen measurement for continuous online industrial process monitoring. This loop‑powered field transmitter accepts up to two identical‑type sensors, enables non‑stop measurement during sensor maintenance, and delivers HART communication over standard 4‑20 mA analog outputYokogawa E.... Widely applied in water treatment, chemical processing, pharmaceutical manufacturing and power‑plant water‑quality monitoring.
Detail:
| Item |
Specification |
| Brand |
YOKOGAWA (Yokogawa Electric Corporation) |
| Full Model No. |
FLXA202‑D‑D‑D‑AB‑C1‑NN‑A‑N‑LA‑N‑N N/UM/H8/CD4 |
| Product Series |
FLEXA FLXA202 2‑Wire Dual‑Channel Liquid Analyzer |
| Measurement Types |
pH / ORP, Conductivity / Resistivity, Inductive Conductivity, Dissolved Oxygen |
| Power Supply |
2‑wire loop powered, 24 VDC |
| Output Signal |
4‑20 mA DC + Bi‑directional HART digital communication |
| Enclosure Rating |
IP66, Type 4X |
| Housing Material |
Die‑cast aluminum alloy with epoxy coating |
| Display |
Anti‑glare LCD multi‑line local display |
| Max Sensor Quantity |
2 sensors (same measurement type only) |
| Max Sensor Cable Length |
60 m total (sensor cable plus extension cable) |
| Operating Ambient Temperature |
-20 °C ~ +55 °C |
| Certification |
CE, RCM (General‑purpose AB variant) |
| Mounting |
Wall‑mount / pipe‑mount field installation |
| Measurement Item |
Range & Performance |
| pH Measurement Range |
‑2 ~ 16 pH |
| pH Accuracy |
±0.01 pH (transmitter simulated input) |
| ORP Measurement Range |
‑1500 ~ +1500 mV |
| Conductivity Range |
0‑2000 mS/cm @25 °C reference temperature |
| Conductivity Linearity |
±(0.4 %F.S. +0.3 µS/cm) |
| Temperature Input Range |
‑30 °C ~ +140 °C (sensor‑dependent) |
| Temperature Measurement Accuracy |
±0.3 °C |
| Compatible Sensors |
Yokogawa pH/ORP electrodes, SC series conductivity sensors, ISC40 inductive conductivity sensors, DO sensorsYokogawa E... |
