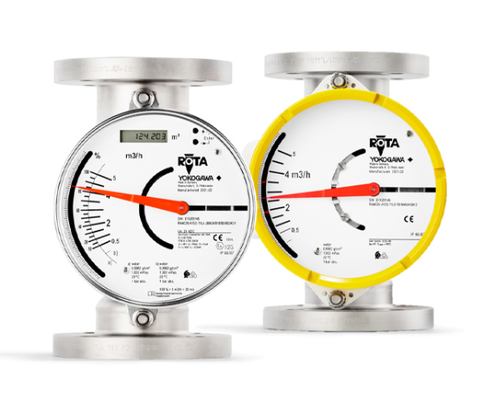

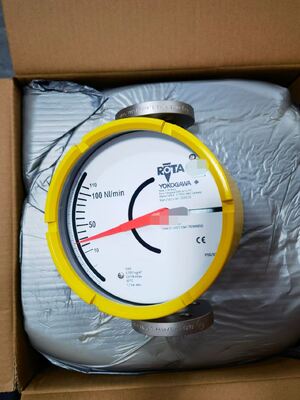

YOKOGAWA RAMC01‑D4SS‑53M1‑T91NNN/SD Metal Short‑Stroke Variable Area Flow Meter
Product Details:
Manufacturer : YOKOGAWA
Product No. : RAMC01‑D4SS‑53M1‑T91NNN/SD
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The YOKOGAWA RAMC01‑D4SS‑53M1‑T91NNN/SD is a metal short‑stroke variable‑area flow meter (rotameter) from YOKOGAWA RAMC product family. Designed for precise flow measurement of liquids, gases and steam in harsh industrial process environments. It features patented float blockage monitoring, robust stainless‑steel wetted components, field‑serviceable modular construction, and supports process‑critical measurement for chemical, energy, oil‑gas and process‑automation sites.
Detail:
| Code Segment |
Definition |
| RAMC01 |
Base model: ½‑inch metal short‑stroke rotameter |
| D4 |
Process connection: Internal thread connection |
| SS |
Wetted material: Stainless steel 1.4404 (AISI 316L) |
| 53 |
Cone size 53, defines primary measuring flow range |
| M1 |
Float type M1 |
| T91 |
Local indicator with electronic transmitter assembly |
| NNN |
No auxiliary limit switch fitted |
| /SD |
Special option suffix for device configuration set |
| Specification Item |
Parameter Value |
| Brand |
YOKOGAWA |
| Full Model No. |
RAMC01‑D4SS‑53M1‑T91NNN/SD |
| Measuring Principle |
Variable‑area (rotameter) short‑stroke metal tube |
| Nominal Pipe Size |
DN15 (1/2 inch) |
| Wetted‑part Material |
1.4404 (AISI 316L Stainless Steel) |
| Process Temperature Range |
-200 ℃ ~ +370 ℃ |
| Max Process Working Pressure |
Up to 100 bar |
| Ambient Operating Temperature |
-40 ℃ ~ +100 ℃ |
| Measuring Accuracy |
±1.6 % FS (VDI/VDE 3513‑2, qG = 50 %) |
| Mounting Requirement |
Vertical pipeline, upward flow direction |
| Electrical Output |
2‑wire 4‑20 mA analog signal |
| Communication |
HART 5 / HART 7 protocol support |
| Enclosure Protection Class |
IP65 / IP67 |
| Supported Media |
Liquids, gases, steam, compatible with corrosive process fluids |
| Approvals |
ATEX, FM, NEPSI explosion‑proof optional |
