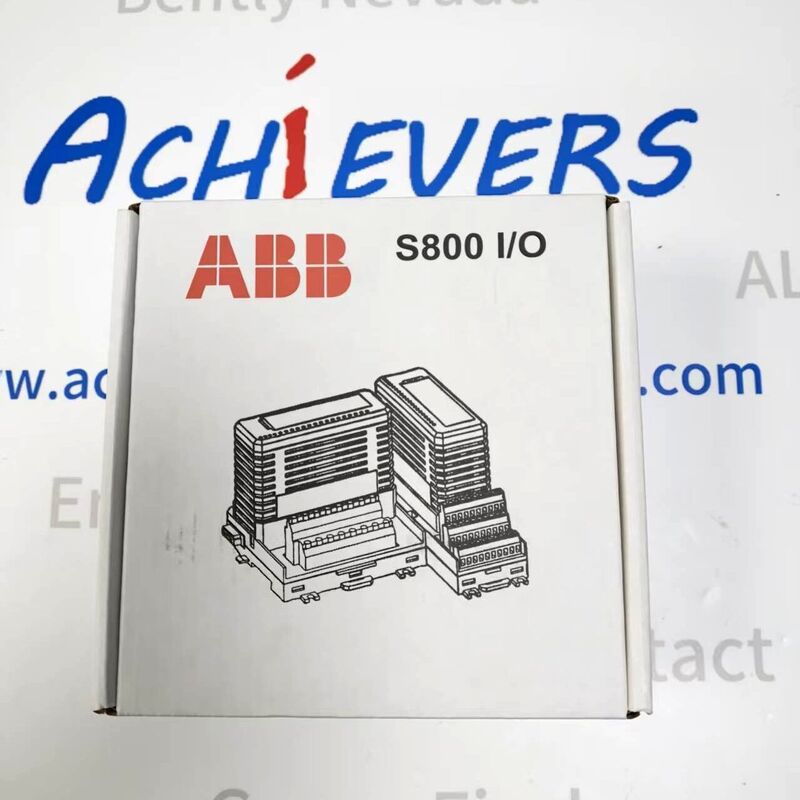

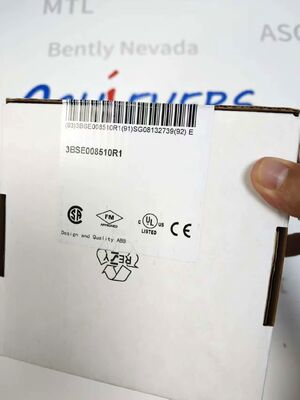

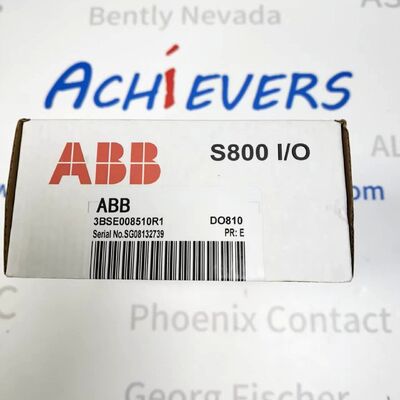

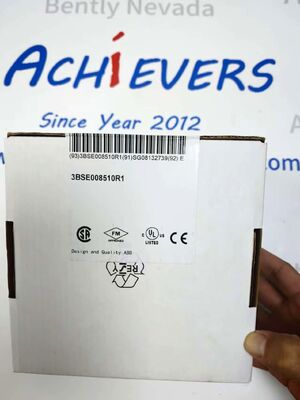

ABB DO810 Digital Output Module
Description:
Manufacturer : ABB
Product No. : DO810
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The ABB DO810 (3BSE008510R1) belongs to ABB S800 I/O series, a 16‑channel digital output module for distributed industrial control systems. It delivers 24 V DC current‑sourcing outputs, split into two electrically isolated groups of 8 channels each. Built‑in short‑circuit, over‑voltage and over‑temperature protection ensures stable performance under harsh factory conditions. Process voltage supervision function detects power loss and sends diagnostic signals via ModuleBus. The OSP function forces outputs to predefined safe status once fault occurs, improving system security for process automation projects.
Detail:
| Item |
Parameter |
| Model |
DO810 |
| Part Number |
3BSE008510R1 |
| Product Category |
S800 I/O Digital Output Module |
| Number of Output Channels |
16 |
| Channel Grouping |
2 isolated groups × 8 channels |
| Output Type |
Current‑sourcing (High‑side driver) |
| Nominal Voltage |
24 V DC |
| Operating Voltage Range |
10‑30 V DC |
| Max Continuous Current per Channel |
0.5 A |
| Module Net Weight |
0.26 kg |
| Compatible Termination Units |
TU810, TU812, TU814, TU830 |
| Specification |
Value |
| Operating Temperature |
-40 °C ~ +70 °C |
| Pollution Degree |
G3 corrosive atmosphere qualified |
| Certifications |
CE, UKCA, DNV, ABS, RoHS, WEEE |
| Safety Standard |
IEC/EN 61010‑1, UL 61010‑1 |
| Hazardous Area Approval |
ATEX / IECEx II 3G Ex nA / Ex ec IIC T4 Gc |
| Cooling Method |
Natural convection |
