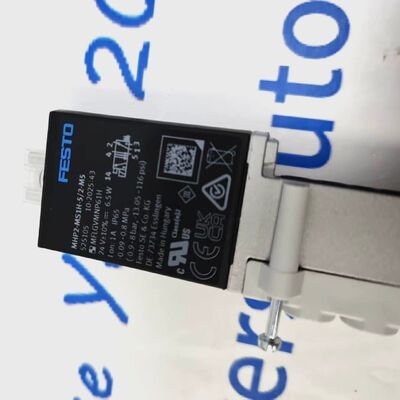

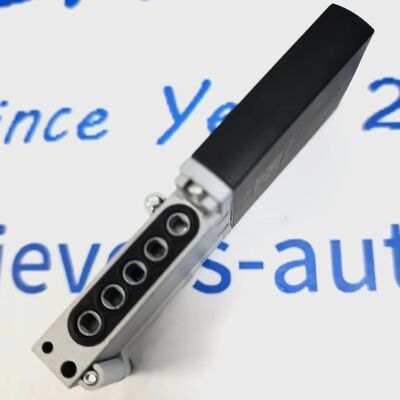

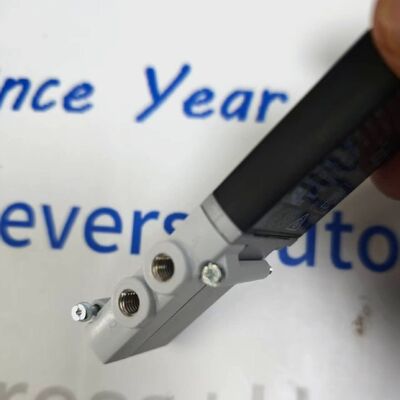

Festo MHP2‑MS1H‑5/2‑M5 High‑Speed Poppet Solenoid Valve
Description:
Manufacturer : Festo
Product No. : MHP2‑MS1H‑5/2‑M5
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The FESTO MHP2‑MS1H‑5/2‑M5 is a compact direct‑acting poppet‑type solenoid valve belonging to the MHP2 series, designed for high‑speed cyclic pneumatic control in automated machinery. With 10 mm construction width and ultra‑fast switching performance up to 300 Hz, this monostable single‑solenoid valve supports standalone installation or manifold group mounting. It delivers reliable pneumatic actuation for compact automation stations, handling compressed‑air media with soft sealing and mechanical spring reset mechanism
Detail:
| Item |
Specification Value |
| Part Number |
MHP2‑MS1H‑5/2‑M5 (Manufacturer ID: 525105)Festo |
| Brand |
FESTO |
| Product Category |
Solenoid Poppet Valve |
| Valve Function |
5/2‑way, monostable (single solenoid, spring return)Festo |
| Actuation |
Direct electrical piloting |
| Construction Width |
10 mm |
| Pneumatic Port Thread |
M5 |
| Nominal Flow Rate |
90 l/min (DIN 1343 standard)Festo |
| Operating Voltage |
24 V DC |
| Operating Pressure |
-0.9 bar ~ 8 bar |
| Switching Time ON |
1.9 ms |
| Switching Time OFF |
1.7 ms |
| Max Switching Frequency |
300 Hz |
| Operating Medium |
Compressed air ISO 8573‑1:2010 [7:4:4] |
| Ambient Temperature |
-5 °C ~ +40 °C |
| Degree of Protection |
IP65 |
| Weight |
70 g |
| Electrical Connection |
2‑pin plug connector |
| Attribute |
Details |
| Housing Material |
Coated die‑cast zinc |
| Seal Material |
NBR / HNBR soft sealing |
| Fastener Material |
Galvanised steel |
| Reset Method |
Mechanical spring |
| Exhaust Feature |
Throttle‑adjustable exhaust port |
| Manual Override |
Non‑detenting push‑type |
| Certifications |
CE, UKCA, c UL us‑Recognised, RCM |
| Compliance |
RoHS, EMC directive compliant |
| UNSPSC Code |
32151605 |
| HS Customs Code |
84812090 |
| ECCN |
EAR99 |
| Mounting |
Single installation or PR‑rail manifold mounting |
Brand
Festo is a German automation company based in Esslingen am Neckar, Germany.[1] Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation. Festo Didactic also offers industrial education and consultation services and is one of the sponsors and partners of the WorldSkills Mechatronics Competitions. Sales subsidiaries, distribution centres and factories of Festo are located in 61 countries worldwide. The company was named after its founders Albert Fezer and Gottlieb Stoll.
