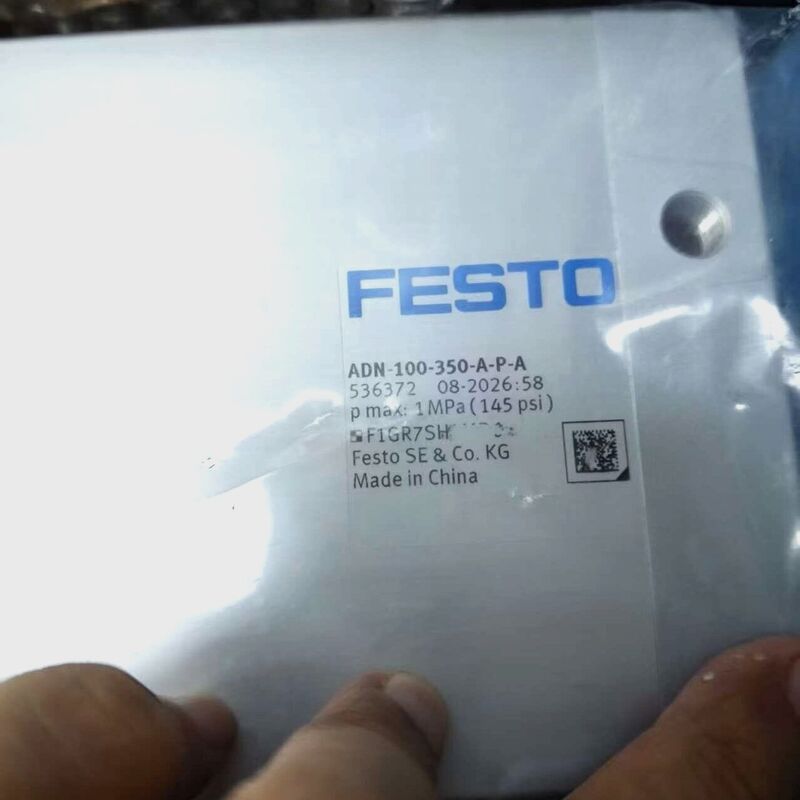

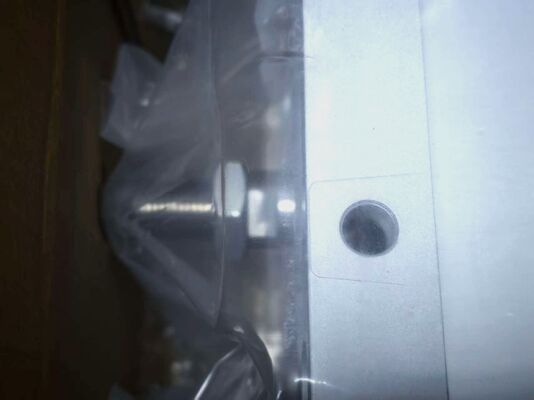

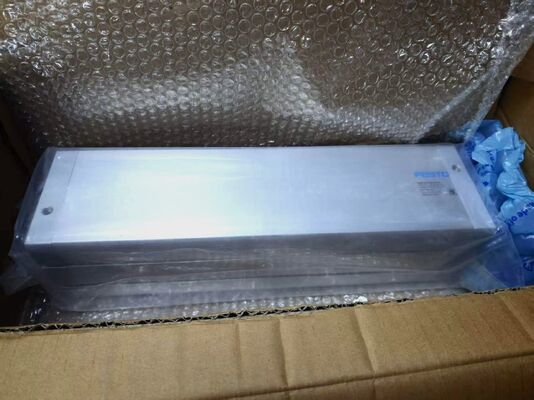

Festo ADN‑100‑350‑A‑P‑A Compact Pneumatic Cylinder
Description:
Manufacturer : Festo
Product No. : ADN‑100‑350‑A‑P‑A
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The FESTO ADN‑100‑350‑A‑P‑A belongs to the ADN compact cylinder series conforming to ISO 21287 standardFesto. This double‑acting short‑profile pneumatic actuator delivers linear motion for machine‑building and automated production systems. This model features 100 mm bore, 350 mm stroke, male piston‑rod thread, elastic cushioning on both ends, and built‑in piston magnet for proximity switch position feedback. Its compact profile saves installation space compared to standard ISO 15552 cylinders, performing clamping, lifting, pushing and positioning tasks under compressed‑air supply in heavy‑duty industrial environments.
Detail:
| Item |
Specification Value |
| Part Number |
ADN‑100‑350‑A‑P‑A |
| Brand |
FESTO |
| Product Type |
Compact Pneumatic Cylinder |
| Operation Mode |
Double‑acting |
| Bore Size |
100 mm |
| Stroke Length |
350 mm |
| Piston‑rod Thread |
M16×1.5 (Male Thread) |
| Cushioning |
Elastic cushioning rings at both ends |
| Position Sensing |
Built‑in magnet for proximity sensor |
| Pneumatic Port |
G1/8 |
| Operating Pressure |
0.6 ‑ 10 bar |
| Theoretical Force @6 bar |
Advance: 4712 N; Return: 4418 N |
| Standard |
ISO 21287 |
| Series |
ADN Compact Cylinder Series |
| Attribute |
Details |
| Cylinder Barrel |
Smooth‑anodised wrought aluminium alloy |
| End Covers |
Die‑cast coated aluminium |
| Piston Rod |
High‑alloy steel |
| Seals |
PU‑TPE‑U elastomer compound |
| Operating Medium |
Compressed air ISO 8573‑1:2010 [7:4:4] |
| Ambient Temperature |
‑20 °C ~ +80 °C |
| Corrosion Resistance Class |
CRC 2 (Moderate corrosion stress) |
| Compliance |
RoHS, CE, UKCA |
| LABS Compatibility |
VDMA 24364‑B1/B2‑L (PWIS‑free) |
| Mounting Position |
Any orientation |
Brand
Festo is a German automation company based in Esslingen am Neckar, Germany.[1] Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation. Festo Didactic also offers industrial education and consultation services and is one of the sponsors and partners of the WorldSkills Mechatronics Competitions. Sales subsidiaries, distribution centres and factories of Festo are located in 61 countries worldwide. The company was named after its founders Albert Fezer and Gottlieb Stoll.
