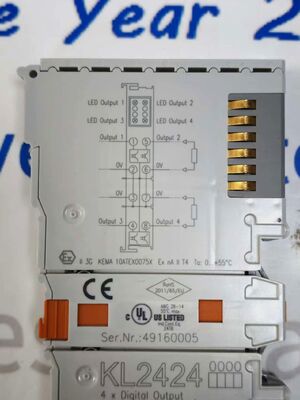

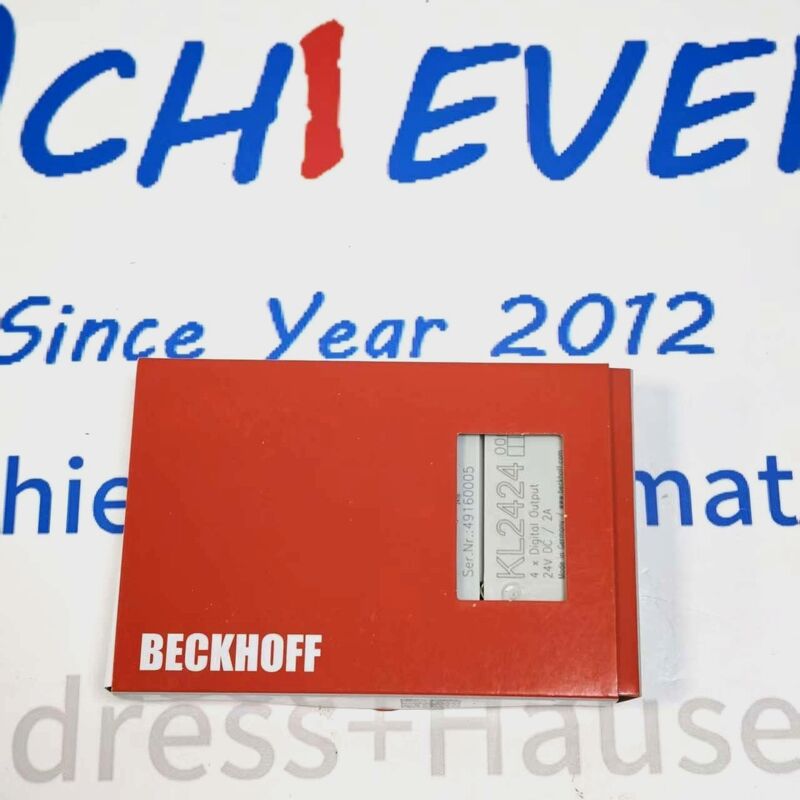

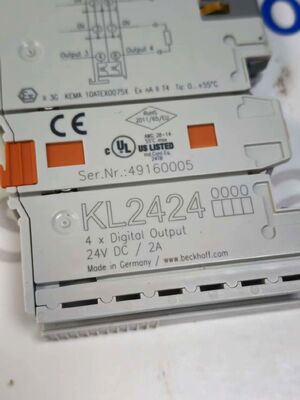

Beckhoff KL2424 4‑Channel Digital Output Bus Terminal
Product Details:
Manufacturer : Balluff
Product No. : KL2424
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Beckhoff KL2424 is a high‑performance digital output bus terminal within the KL2xxx series for EtherCAT and K‑Bus I/O systems. This terminal converts controller‑side binary signals into isolated 24 V DC field‑level output signals to drive actuators, relays, solenoid valves and lamp loads. Each of the four output channels features short‑circuit protection and status LED indication. It adopts 2‑wire connection technology and requires no manual address configuration, supporting fast modular installation on standard DIN‑rail inside control cabinets. Galvanic isolation of 500 V separates K‑Bus logic side and field power circuit to enhance system anti‑interference capability in harsh industrial environments.
Detail:
| Parameter |
Value |
| Part Number |
KL2424 |
| Brand |
Beckhoff |
| Product Type |
Digital Output Bus Terminal |
| Number of Output Channels |
4 |
| Nominal Field Voltage |
24 V DC (-15 % / +20 %) |
| Max Output Current per Channel |
2.0 A (short‑circuit‑proof) |
| Short‑circuit Current |
< 70 A |
| Max Breaking Energy |
< 1.7 J per channel |
| Load Types |
Ohmic, inductive, lamp load |
| Electrical Isolation |
500 V (K‑Bus / field potential) |
| Reverse‑Voltage Protection |
Yes |
| K‑Bus Current Consumption |
Typ. 9 mA |
| Power Contact Current Consumption |
Typ. 30 mA + external load |
| Process Image Bit Width |
4 output bits |
| Configuration Requirement |
No address setting required |
| Connection Technology |
2‑wire |
| Attribute |
Details |
| Dimensions (W × H × D) |
15 mm × 100 mm × 70 mm |
| Weight |
Approx. 70 g |
| Mounting |
35 mm DIN‑rail according to EN 60715 |
| Protection Class |
IP20 |
| Operating Ambient Temperature |
-25 °C … +60 °C |
| Storage Temperature |
-40 °C … +85 °C |
| Relative Humidity |
95 %, non‑condensing |
| Vibration & Shock |
Complies with EN 60068‑2‑6, EN 60068‑2‑27 |
| EMC Standard |
EN 61000‑6‑2, EN 61000‑6‑4 |
| Certifications |
CE, cULus |
