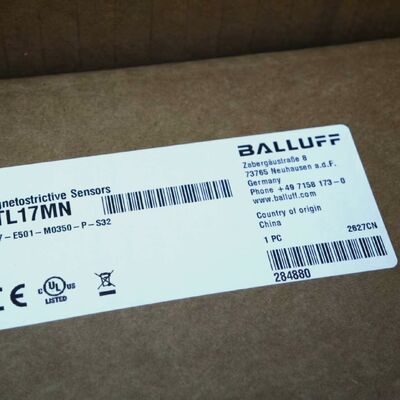

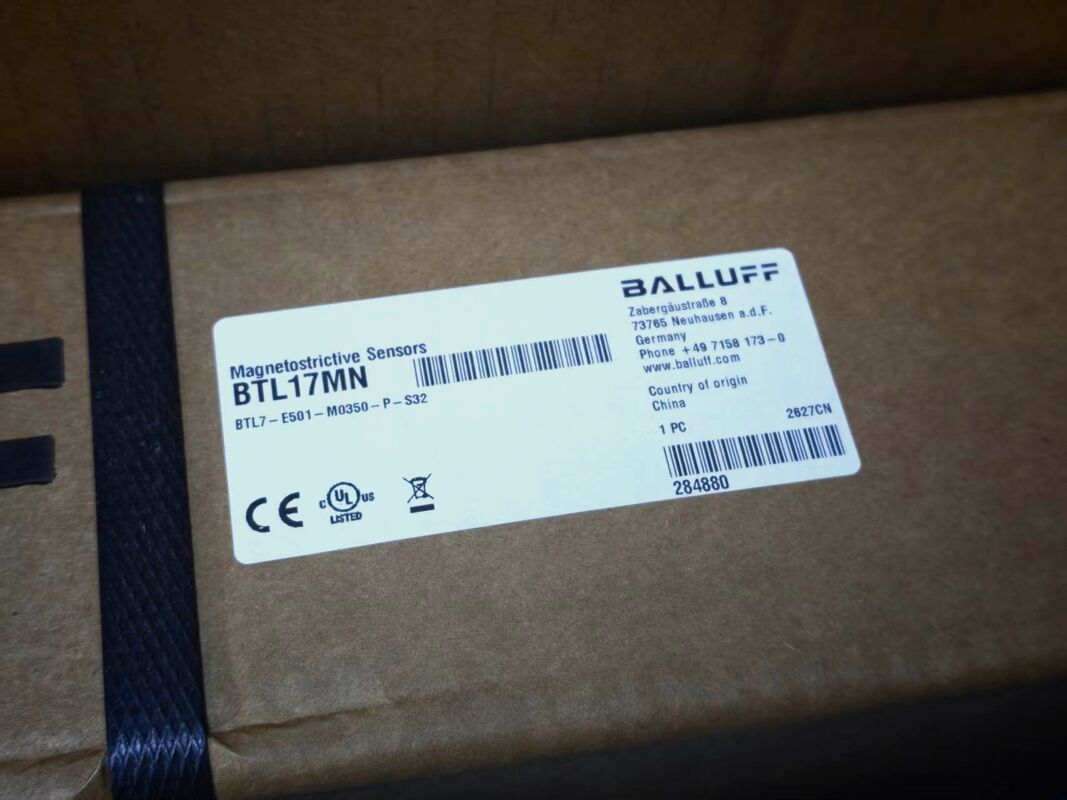

BALLUFF BTL7‑E501‑M0350‑P‑S32 Magnetostrictive Linear Position Sensor
Product Details:
Manufacturer : Balluff
Product No. : BTL7‑E501‑M0350‑P‑S32
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
SEO Meta Title: Balluff BTL7‑E501‑M0350‑P‑S32 | 350 mm 4‑20 mA Profile Linear Position Transducer
SEO Meta Description: Balluff BTL7‑E501‑M0350‑P‑S32 non‑contact magnetostrictive linear position sensor, 350 mm measuring stroke, 4‑20 mA analog current output, profile housing, M16 8‑pin connector for industrial automation and hydraulic cylinder position feedback.
H1: Balluff BTL7‑E501‑M0350‑P‑S32 Magnetostrictive Linear Position Sensor
Detail:
| Parameter |
Value |
| Part Number |
BTL7‑E501‑M0350‑P‑S32 |
| Brand |
Balluff |
| Product Series |
BTL7‑E MICROPULSE+ |
| Product Type |
Magnetostrictive Linear Position Transducer |
| Measuring Stroke |
350 mm |
| Output Interface |
Analog Current 4‑20 mA / 20‑4 mA (factory setting)files.kemp... |
| Supply Voltage |
10 – 30 V DC, ripple ≤0.5 VssManualsLib |
| Max Load Resistance |
≤ 500 Ωfiles.kemp... |
| Repeat Accuracy |
± 5 µm typicalManualsLib |
| Non‑Linearity |
± 50 µm (≤500 mm nominal length)Balluff |
| Housing Type |
P‑form Extruded Profile Housing |
| Housing Material |
Anodized Aluminium |
| Housing Height |
36.8 mm |
| Electrical Connection |
S32, M16 ×0.75, 8‑pin connector IEC 130‑9ManualsLib |
| IP Rating |
IP60 |
| Operating Temperature |
‑40 °C ~ +85 °CManualsLib |
| Storage Temperature |
‑40 °C ~ +100 °C |
| Weight |
Approx. 0.95 kg |
| Attribute |
Details |
| Approvals |
CE, cULus, EAC conformity approved |
| ECLASS 13.0 |
27‑27‑43‑03Balluff |
| UNSPSC Code |
41112100Balluff |
| HS Customs Tariff Code |
90318020Balluff |
| ECCN |
EAR99 |
| RoHS / REACH |
Compliant, documentation available on request |
| Relative Humidity |
< 90 %, non‑condensing |
| Measuring Principle |
Magnetostrictive absolute position measurement |
| Mounting Method |
Surface mounting with mounting clamps |
