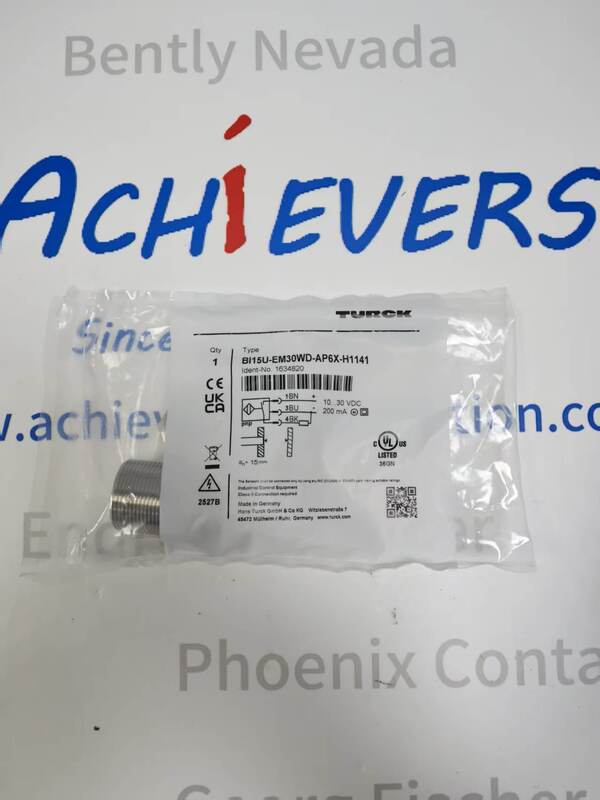

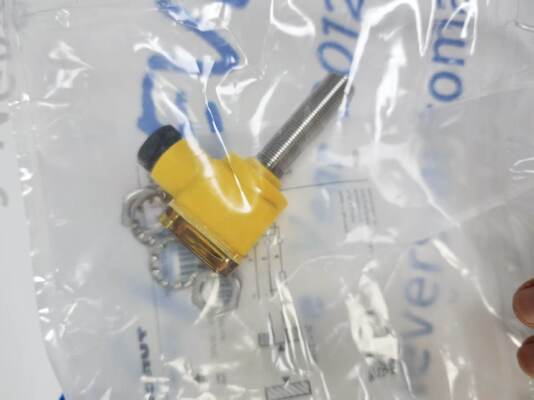

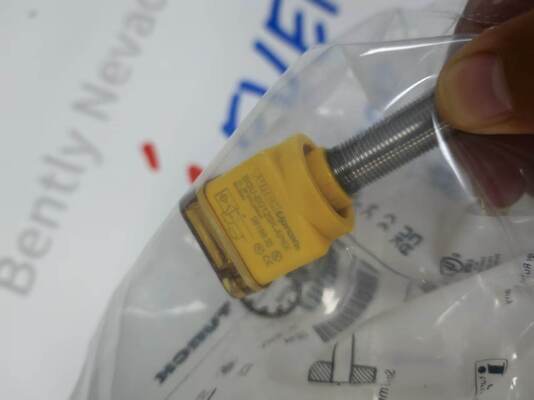

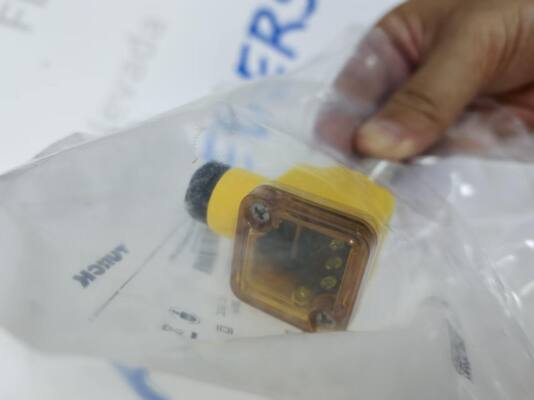

Turck BI15U‑EM30WD‑AP6X‑H1141 Inductive Sensor
Product Details:
Manufacturer :Turck
Product No. :BI15U‑EM30WD‑AP6X‑H1141
https://www.achievers-automation.com More Products
The Turck BI15U‑EM30WD‑AP6X‑H1141 is an uprox+ factor‑1 inductive proximity sensor built for harsh wash‑down industrial environments, especially food‑processing and pharmaceutical production lines. It features flush‑mount M30 threaded housing made of AISI 316L stainless‑steel, stable 15 mm sensing range for all metal targets, PNP normally‑open 3‑wire DC output, and high IP68 / IP69K ingress resistance against high‑pressure cleaning, acid‑alkaline detergents and magnetic‑field interference
Detail:
| Item |
Details |
| Brand |
Turck |
| Model |
BI15U‑EM30WD‑AP6X‑H1141 |
| Product type |
Inductive Proximity Sensor |
| Series |
uprox+ |
| Order ID |
1634820 |
| Housing design |
Threaded barrel M30 × 1.5 |
| Mounting |
Flush mounting |
| Housing material |
Stainless steel 1.4404 (AISI 316L) |
| Active face material |
LCP plastic |
| Connection type |
M12 × 1 connector |
| Weight |
Approx.105 g |
| Special properties |
Wash‑down, factor‑1, magnetic‑field resistant, pressure‑resistant |
| Technical Parameter |
Value |
| Rated switching distance |
15 mm |
| Operating voltage |
10 … 30 V DC |
| Output function |
PNP, Normally Open (NO), 3‑wire |
| Switching frequency |
0.75 kHz |
| Ambient temperature range |
‑40 °C … +100 °C |
| Protection class |
IP68, IP69K |
| Vibration resistance |
55 Hz, 1 mm amplitude |
| Shock resistance |
30 g /11 ms |
| Torque max (housing nut) |
75 Nm |
| Max front‑face pressure |
10 bar |
| Indicator |
Yellow LED switching status |
| Compliance |
Industrial standard for wash‑down automationターク・ジ... |
Brand
![]()
Turck Banner Inductive Proximity Sensors
Inductive sensors are designed for contact-less and wear-free detection. They are the perfect solution for breweries, frozen food, dairies and packaging applications. Resistant to cleaning agents and disinfectants and exceed the protection classes IP68 & IP69K. These sensors are available as standard versions in chrome plated brass blocks or stainless steel housing with LCP front cap and double lip seal for heavy use or sudden changes in temperature. All inductive sensors of the new uprox+ generation operate with highest switching distances, feature an extended temperature range and are easily mounted.
