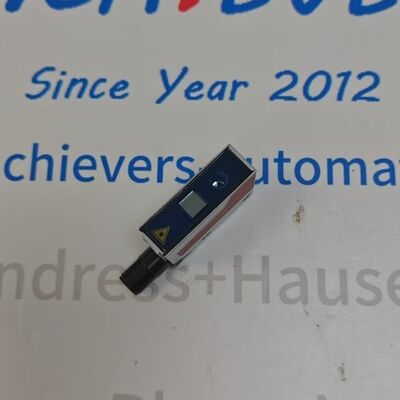

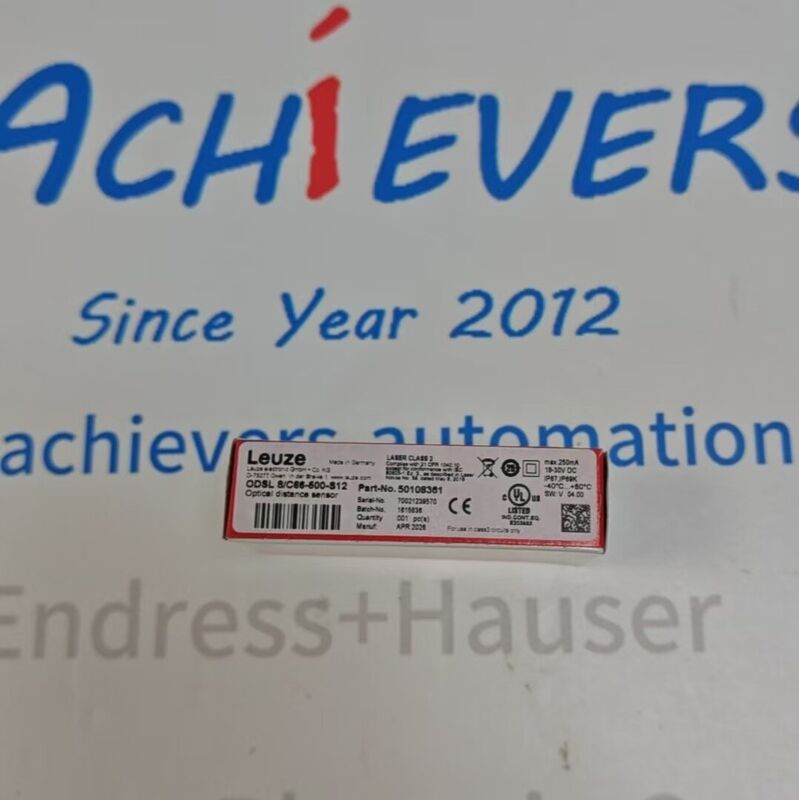

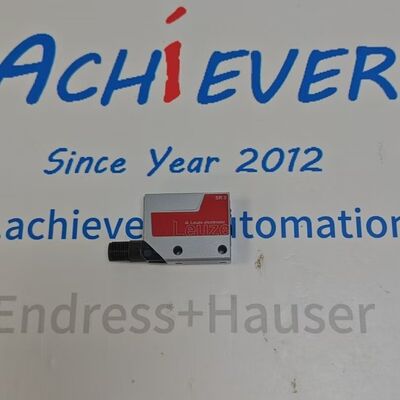

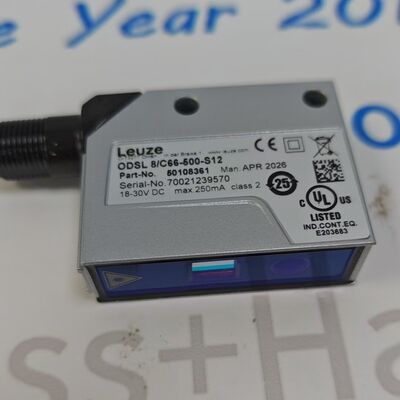

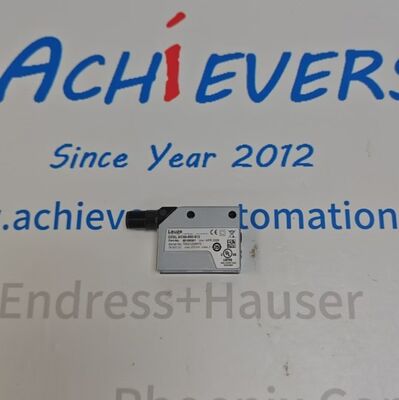

Leuze ODSL 8C66‑500‑S12 Optical Laser Distance Sensor
Product Details:
Manufacturer : Leuze
Product No. : ODSL 8C66‑500‑S12
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Leuze ODSL 8/C66‑500‑S12 (Item No.50108361) belongs to the Leuze Series‑8 compact optical distance‑measuring sensor. It adopts laser triangulation measurement principle, fitted with class‑2 red pulsed laser source. Featuring fast response speed, adjustable resolution and current‑type analog output plus dual push‑pull switching outputs, this industrial‑grade laser sensor suits distance detection, position feedback and object‑positioning tasks for factory automation, packaging machinery and material‑handling equipment.
Detail:
| Parameter |
Specification Value |
| Full Model Number |
ODSL 8/C66‑500‑S12 |
| Manufacturer |
Leuze |
| Manufacturer Article Code |
50108361 |
| Measurement Principle |
Laser Triangulation |
| Measuring Range |
20 mm‑500 mm |
| Laser Source |
Pulsed Red Laser, 630 nm Wavelength |
| Laser Safety Grade |
Class 2 (IEC/EN 60825‑1:2014) |
| Light‑spot Dimension |
2 mm × 6 mm (rectangular spot) |
| Measuring Resolution |
0.1 mm‑0.5 mm adjustable |
| Short‑range Measuring Accuracy |
±2 % |
| Long‑range Measuring Accuracy |
±4 % |
| Short‑term Repeatability (Near‑range) |
1 % |
| Short‑term Repeatability (Far‑range) |
3 % |
| Measuring Response Time |
2 ms‑7 ms |
| Parameter |
Specification Value |
| Working Supply Voltage |
10‑30 VDC, residual ripple ≤15 % |
| Max. Power Consumption |
≤4 W |
| Analog Output |
1‑channel current‑type analog signal |
| Digital Switching Output |
2‑channel push‑pull transistor outputs |
| Adjustment Mode |
Rotary teach‑in switch |
| Connector Type |
90‑degree rotatable metal M12, 5‑pin |
| Housing Material |
Zinc die‑cast metal housing, glass optical cover |
| Outer Dimension (W × H × L) |
15 mm × 48 mm × 38 mm |
| Net Weight |
70 g |
| Ingress Protection Rating |
IP67, IP69K |
| Operating Ambient Temperature |
-40 ℃ ~ +50 ℃ |
| Storage Temperature |
-40 ℃ ~ +70 ℃ |
| Service Life (MTTF) |
114 Years |
