Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor

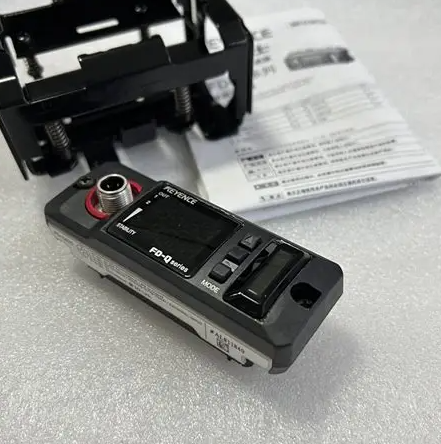

Large Image : Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor

Product Details:

Place of Origin:	China
Brand Name:	KEYENCE
Model Number:	FD-Q10C
Document:	AB-P+F-E+H-IFM-ASCO-YOKOGAW...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate
Packaging Details:	carton
Payment Terms:	T/T,Alipay,Paypal,XT
Supply Ability:	100PC

Contact Now

Detailed Product Description

Measuring Range:	150 Mm	Indicator:	Power Indicator
Operating Temperature:	-25°C To +60°C	Head Mount:	DIN Form B Head Mount
Temperature Range:	-25°C To +60°C	Line Voltage:	200 To 600 Volts AC
Special Features:	Integrated TwinCAT 3 Runtime Environment	Product No:	BSW000R

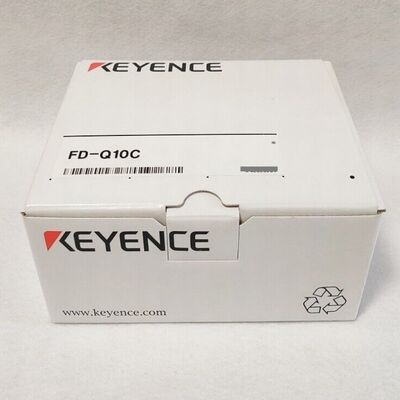

Keyence FD-Q10C Non‑Intrusive Clamp‑On Liquid Flow Sensor

Manufacturer :KEYENCE
Product No. : FD-Q10C

https://www.achievers-automation.com More Products

Description:

The Keyence FD‑Q10C belongs to the FD‑Q non‑intrusive clamp‑on flow‑sensor lineup. It adopts thermal‑sensing detection principle and installs externally on the outer pipe wall without pipe‑cutting, fluid‑contact or pipeline shutdown. This integrated‑body sensor supports both metal and resin pipelines, measuring purified‑water, lubricant oil and industrial chemical solvent. Built‑in LED readout, analogue‑digital output and IO‑Link communication make it suited for automated machinery cooling‑loop inspection and processing‑line fluid surveillance

Detail:

Specification Item	FD‑Q10C Parameter Details
Device Model	FD‑Q10C
Applicable Pipe Outer Diameter	8A (1/4 inch): Ø13‑Ø16 mm; 10A (3/8 inch): Ø16‑Ø18 mm
Compatible Pipe Material	Metal pipe, hard resin pipe
Detectable Liquid Medium	Deionized‑water, machine‑oil, adhesive, industrial chemical and other non‑corrosive process liquids
Pipe‑wall Working‑Temperature Range	0 °C ~ 85 °C, no frost on pipe exterior
Max Rated Flow Rate	20 L/min (8A pipeline), 30 L/min (10A pipeline)
Zero‑cut‑off Flow	1.0 L/min (factory‑default, adjustable)
Selectable Response Speed	0.5 s, 1.0 s, 2.5 s, 5 s, 10 s, 30 s, 60 s
Measurement Repeatability	±2.0%‑±0.15% full‑scale, subject to configured response‑time
Display Configuration	Dual‑row 4‑digit 7‑segment LED, stability‑indicator lamp and status LED, refresh rate 3 Hz
Power Supply	20‑30 VDC Class‑2 power, permitted peak‑to‑peak ripple ≤10 %, consumption current ≤100 mA (load excluded)
Signal Output	Switchable 4‑20 mA / 0‑20 mA analogue signal, NPN/PNP switch output; IO‑Link industrial communication interface
External Input Functions	Accumulated‑flow reset, zero‑flow trigger, zero‑point calibration

Performance Parameter	Technical Specification
Ingress‑protection Grade	IP65, IP67 (IEC60529)
Housing Raw Material	PPS, PES, PBT engineering‑plastic; fastener SUS304 stainless‑steel
Sensor Contact Pad	Special‑purpose elastic rubber
Mounting‑bracket Material	SUS304 stainless‑steel and PA plastic
Net Weight	Approx. 340 g including installation bracket
Operating Ambient‑Temperature	‑10 °C ~ +60 °C
Permitted Humidity	35 %‑85 % RH, non‑condensing environment
Vibration Resistance	10–55 Hz, 1.5 mm peak‑to‑peak amplitude, two‑hour endurance testing for X‑Y‑Z axes
Shock‑resistance Rating	100 m/s²,16‑millisecond pulse, 1000‑time impact test for three orthogonal directions
Built‑in Protection Circuits	Reverse‑polarity power‑supply safeguard, surge‑voltage defence, short‑circuit‑protection for output terminals
