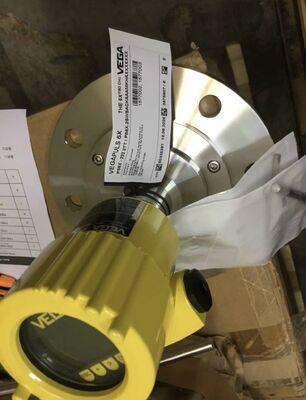

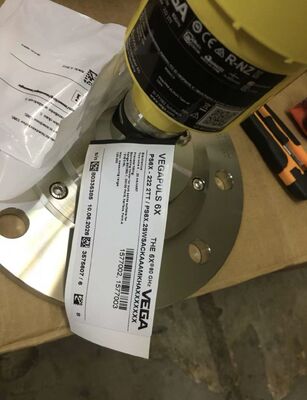

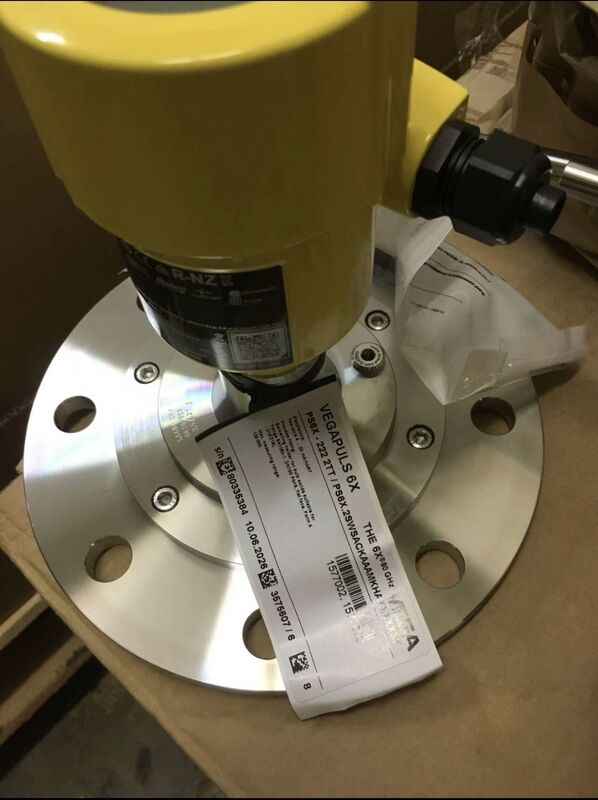

VEGA PS6X.2SWSACKAAAMKHAXXXXXXX radar level transmitter for continuous
Description:
Manufacturer : VEGA
Product No. : PS6X.2SWSACKAAAMKHAXXXXXXX
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The VEGA PS6X.2SWSACKAAAMKHAXXXXXXX is a premium non-contact radar level transmitter from the renowned VEGAPULS 6X series, equipped with advanced 80GHz W-band radar technology. Engineered for high-precision continuous level monitoring, this model delivers reliable measurement results for all types of liquids, powdery and granular bulk solids across complex industrial environments.
Featuring an ultra-narrow beam angle and 120dB dynamic signal range, the VEGA PS6X.2SWSACKAAAMKHAXXXXXXX effectively eliminates measurement interference caused by tank walls, agitators, dust, vapor, and low-dielectric media. It supports stable detection of materials with dielectric constants as low as 1.67, outperforming traditional ultrasonic and low-frequency radar sensors. With robust industrial-grade housing and wide adaptive operating parameters, this transmitter ensures long-term maintenance-free operation in chemical, pharmaceutical, food processing, mining, and energy industries.
Detail:
|
Parameter Category
|
Detailed Specification
|
|
Full Model Number
|
PS6X.2SWSACKAAAMKHAXXXXXXX
|
|
Product Series
|
VEGAPULS 6X High-Frequency Radar Level Transmitter
|
|
Radar Frequency
|
80GHz W-band high frequency
|
|
Measuring Principle
|
Non-contact continuous radar time-of-flight measurement
|
|
Applicable Media
|
Liquids, powders, granular bulk solids, low-dielectric industrial materials
|
|
Minimum Dielectric Constant (εr)
|
≥ 1.67
|
|
Max Measuring Range
|
Up to 120 m (393.7 ft)
|
|
Beam Angle
|
≥ 3° ultra-narrow beam
|
|
Signal Dynamic Range
|
120 dB high sensitivity signal detection
|
|
Process Temperature Range
|
-40 °C to +150 °C (-40 °F to 302 °F)
|
|
Max Process Pressure
|
40 bar (588 psi)
|
|
Ambient Temperature Range
|
-40 °C to +80 °C (-40 °F to 176 °F)
|
|
Output Signal Protocol
|
4–20mA / HART digital communication
|
|
Power Supply
|
12 V DC – 30 V DC (two-wire system)
|
|
Housing Material
|
316 stainless steel industrial precision casting
|
|
Seal Material
|
FKM high temperature and corrosion resistant seal
|
|
Protection Grade
|
IP66 / IP68 / IP69K full industrial protection
|
|
Certifications
|
ATEX, EAC, IECEx industrial explosion-proof and safety certifications
|
Brand
Founded in 1959 and headquartered in Schiltach, Black Forest, Germany, VEGA is a globally leading supplier of level, limit, and pressure measurement instruments. With over 65 years of professional experience in industrial measurement technology, VEGA has built a global network covering more than 80 countries, with subsidiaries and sales partners worldwide and a team of over 1750 employees dedicated to providing high-quality measurement solutions. The company’s product portfolio includes a full range of instruments for level, limit, pressure, and density measurement, as well as supporting software for seamless integration into industrial process control systems. VEGA has long been committed to technological innovation and quality excellence, serving diverse industries such as metallurgy, mining, building materials, petrochemicals, energy, power, chemical engineering, water treatment, food, papermaking, shipbuilding, and machinery manufacturing with reliable products and professional services. In China, VEGA established VEGA (China) Instrument Co., Ltd. in 1989, a wholly-owned subsidiary that is fully responsible for sales, training, and technical support in the Chinese market, further enhancing its localized service capabilities.
