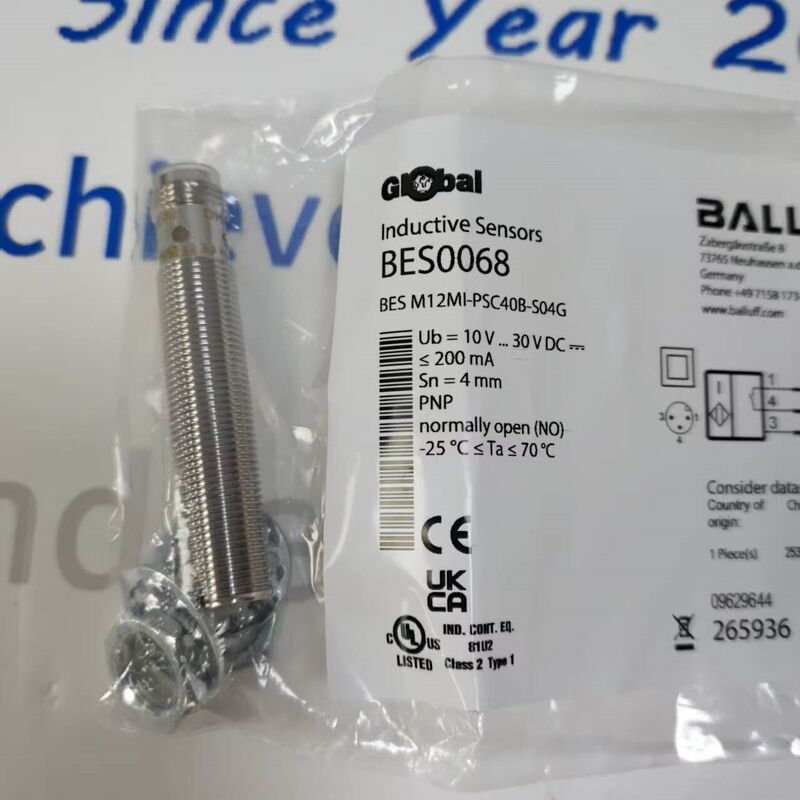

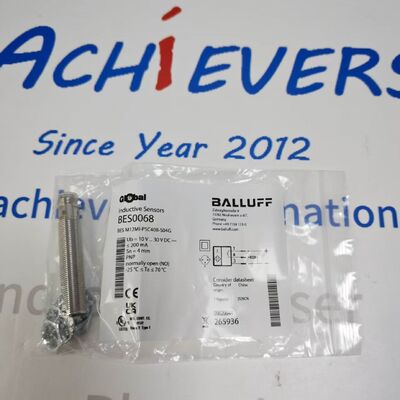

BALLUFF-BES M12MI-PSC40B-S04G Flush Inductive Proximity Sensor
Product Details:
Manufacturer : Balluff
Product No. : BES M12MI-PSC40B-S04G
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
This M12x1 threaded barrel sensor features a fully shielded housing that allows complete flush embedding into metal mounting surfaces without performance attenuation, solving installation space constraints on machine tools, assembly lines and conveyor systems. Equipped with a 3-pin M12 male plug connector, PNP normally open (NO) output and built-in reverse polarity & short-circuit protection, it delivers stable digital switching signals under 10–30 VDC supply.
Detail:
| Specification Item |
Parameter Value |
| Full Model Number |
BES M12MI-PSC40B-S04G |
| Balluff Internal Code |
BES0068 |
| Brand |
BALLUFF |
| Sensor Type |
Inductive proximity sensor |
| Housing Structure |
M12×1 threaded cylindrical barrel |
| Overall Dimensions |
Ø12 mm × 65 mm |
| Mounting Style |
Flush (shielded) |
| Nominal Sensing Distance (Sn) |
4 mm |
| Switching Output |
PNP Normally Open (NO) |
| Connection Interface |
M12×1 male connector, 3-pin |
| Operating DC Voltage |
10 VDC ~ 30 VDC |
| Rated Switching Current |
200 mA |
| Max Switching Frequency |
2500 Hz |
| Voltage Drop (Static Max) |
3 V |
| Off-State Leakage Current |
≤20 µA |
| Tightening Torque Max |
15 N·m |
| Protection Circuits |
Reverse polarity, short-circuit overload |
| Status Indicator |
Built-in LED switching status light |
| Category |
Detailed Specification |
| Housing Main Material |
Nickel-plated brass (CuZn) |
| Sensing Face Material |
PBT engineering plastic |
| Ingress Protection Class |
IP68 (IEC 60529) |
| Ambient Operating Temperature |
-25 °C ~ +70 °C |
| Storage Temperature Range |
-40 °C ~ +80 °C |
| Shock Resistance |
30 g, half-sinus, 11 ms |
| Vibration Resistance |
55 Hz, 1 mm amplitude |
| Detectable Target Material |
Ferrous metal (steel, iron) |
| Repeat Accuracy Tolerance |
≤5% of nominal sensing distance |
| Compliance Certifications |
CE, UKCA, cULus, EAC, RoHS |
| Applicable Standard |
IEC 60947-5-2 |
| Insulation Rated Voltage |
250 V AC |
| Max Load Capacitance |
1 µF |
