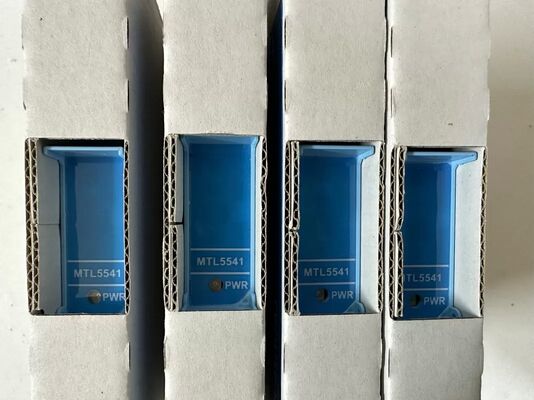

mtl5541 Intrinsically Safe 4–20mA HART Galvanic Isolator
Description:
Manufacturer : MTL
Product No. : MTL5531
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

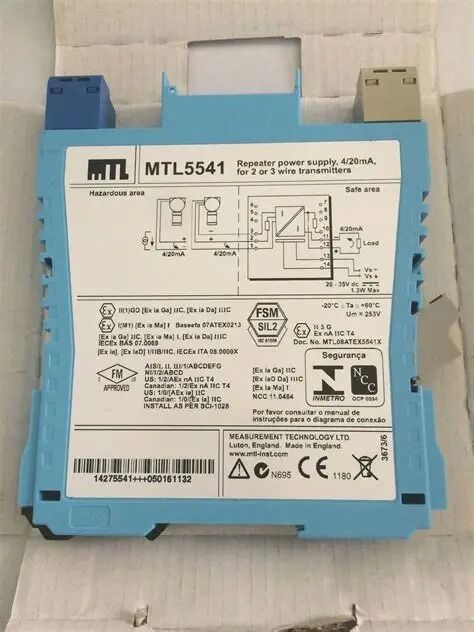

The MTL MTL5541 is a compact single-channel galvanic isolator within the MTL5500 DIN rail series, manufactured by Eaton MTL Instruments. It powers and repeats signals from 2-wire and 3-wire 4–20mA field transmitters installed in explosive hazardous zones, delivering isolated analog output to safe-side DCS, PLC and recording systems while supporting full bi-directional HART digital communication for smart transmitter configuration and diagnosticsEaton.
This unit provides complete galvanic isolation between hazardous field circuit, safe control circuit and 24V DC power supply to eliminate ground loop noise and transient cross-coupling. It supplies a stable 16.5V loop voltage to field transmitters at 20mA signal, with ultra-fast 50µs response time and high transfer accuracy. Fully certified Ex ia intrinsic safety allows direct installation in Zone 0 / Class I Div 1 hazardous locations, and assessed per IEC 61508 for SIL 2 safety instrumented system deployment. The slim 16mm narrow housing enables high-density cabinet stacking for multi-loop process measurement racks across oil & gas, chemical, pharmaceutical and wastewater facilities.
Detail:
| Parameter Item |
Official MTL5541 Datasheet Standard Value |
| Full Model Code |
MTL5541 (T / S variants available) |
| Brand Manufacturer |
MTL Instruments (Eaton Crouse-Hinds) |
| Channel Quantity |
Single channel for 2/3-wire transmitters |
| Hazardous Side Input Range |
0–24 mA (4–20mA nominal measuring window) |
| Transmitter Supply Voltage @ 20mA |
16.5 V DC steady loop power |
| Safe Side Output Signal |
Repeated 0–24 mA (4–20mA standard process signal) |
| Max Safe Side Load Resistance (MTL5541-T) |
0–450 Ω @ 20mA; 0–360 Ω @ 24mA |
| Max Sink Load (MTL5541-S current sink version) |
600 Ω |
| Transfer Accuracy (20 °C ambient) |
Better than ±15 µA |
| Temperature Drift Coefficient |
< 0.8 µA / °C |
| Output Ripple Noise |
< 50 µA peak-to-peak |
| Signal Response Time |
Settles within 10% of final value in 50 µs |
| Digital Communication Support |
Bi-directional HART protocol (terminals 1 & 2) |
| HART Bandwidth Compatibility |
500 Hz – 10 kHz superimposed digital signals |
| Supply Operating Voltage Range |
20 V DC – 35 V DC (nominal 24 V DC) |
| Max Current Consumption (24 V, 20mA signal) |
51 mA |
| Max Internal Power Dissipation |
0.7 W @ 24 V DC |
| Galvanic Isolation Rating |
253 V rms / DC between hazardous and safe circuits |
| Specification Category |
Detailed Technical Data |
| Mounting Standard |
EN 60715 35 mm standard T-section DIN rail |
| Module Outer Dimensions (W × H × D) |
16 mm × 121 mm × 108 mm slim compact housing |
| Single Unit Net Weight |
150 g |
| Housing Material |
Flame-retardant yellow thermoplastic polymer |
| Wiring Termination |
Screw clamp terminals, accepts up to 2.5 mm² cable conductors |
| Status Indicator |
Green LED power supply status light |
| Continuous Operating Ambient Temperature |
-20 °C ~ +60 °C |
| Storage Temperature Range |
-40 °C ~ +80 °C |
| Intrinsic Safety Certifications |
ATEX Ex ia IIC T4–T6, IECEx, FM Class I Div 1 / Div 2 |
| Hazardous Zone Compatibility |
Zone 0, Zone 1, Zone 2; Gas Groups IIA / IIB / IIC |
| Intrinsic Safety Entity Parameters |
Vo=28 V, Io=93 mA, Po=651 mW, negligible internal capacitance |
| Functional Safety Rating |
IEC 61508 assessed, SIL 2 capable simplex SIS architecture |
| Industrial Compliance Standards |
EN 61010-1 safety, EN 61326-1 EMC immunity, RoHS compliant |
| Isolation Test Voltage |
1500 V rms dielectric withstand between hazardous/safe circuits |
Brand
MTL (Measurement Technology Limited) is a British company focusing on industrial automation safety and explosion-proof technology. It was founded in 1955 and is headquartered in Manchester. Currently, MTL is a brand under Eaton Corporation, and is affiliated with Eaton's CrouseHinds product portfolio, focusing on providing intrinsic safety solutions for hazardous industrial environments.
As the world's leading power management company, Eaton further strengthens its competitiveness in the fields of industrial process control, explosion-proof equipment and safety grids by acquiring and integrating MTL's technology and product lines. MTL's product line (such as safety gates, isolation gates, surge protectors, etc.) has now become a core component of Eaton's industrial automation field.
