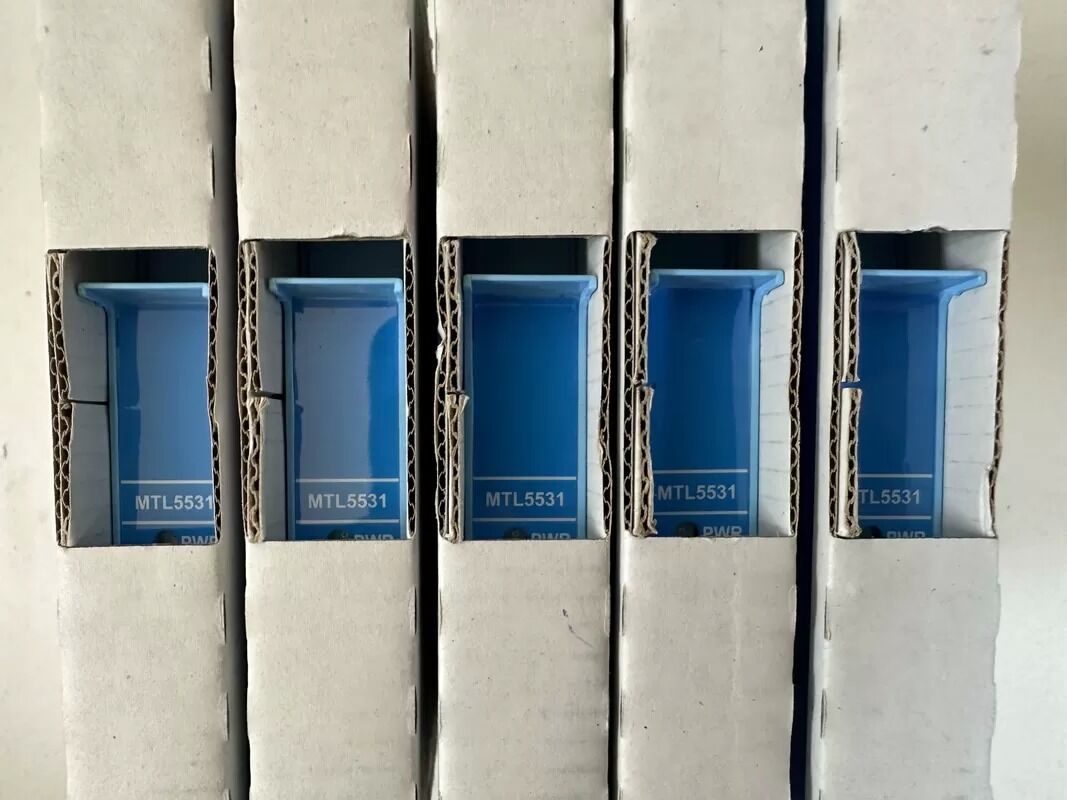

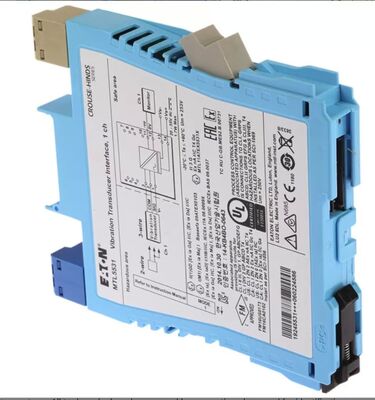

MTL5531 Intrinsically Safe Vibration Transducer Isolator
Description:
Manufacturer : MTL
Product No. : MTL5531
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The MTL MTL5531 is a compact single-channel galvanically isolated vibration signal isolator within the MTL5500 series, manufactured by Eaton MTL Instruments. It interfaces 2-wire current vibration sensors and 3-wire eddy-current probes / accelerometers installed in explosive hazardous zones, reproducing vibration signals to safe-side monitoring PLCs and machine condition systems.
This unit delivers full 3-port galvanic isolation between hazardous sensor circuit, safe monitoring output and 24V DC power supply to eliminate ground loop noise and transient cross-coupling. It supports user-switchable 3.3mA excitation for 2-wire vibration transducers, wide 47kHz signal bandwidth for high-frequency machine vibration signatures, and is certified for Zone 0 / Class I Div 1 hazardous locations. Assessed per IEC 61508, MTL5531 achieves SIL 2 capability for simplex safety instrumented systems, suitable for critical rotating equipment monitoring in oil & gas, petrochemical and power generation plants. A slim 16mm DIN rail housing maximizes cabinet density for multi-point vibration monitoring racks.
Detail:
| Parameter Item |
Official MTL5531 Datasheet Value |
| Full Model Code |
MTL5531 |
| Brand & Manufacturer |
MTL Instruments (Eaton Crouse-Hinds) |
| Channel Configuration |
Single channel vibration transducer interface |
| Supported Hazardous Side Sensors |
2-wire current vibration sensors; 3-wire eddy current probes / accelerometers |
| 2-Wire Transducer Excitation Current |
3.3 mA nominal, hardware switch selectable |
| Hazardous Input Impedance |
10 kΩ (signal terminals 2 & 3) |
| Acceptable Input Signal Voltage Range |
-20 V minimum to -0.5 V maximum |
| DC Transfer Accuracy (+20 °C) |
< ±50 mV |
| AC Transfer Accuracy |
0–1 kHz: ±1%
1–10 kHz: -5% ~ +1%
10–20 kHz: -10% ~ +1% |
| Signal Bandwidth (-3dB typical) |
47 kHz |
| Maximum Phase Delay |
<14 µs |
| Temperature Coefficient |
±50 ppm/°C (10–65 °C)
±100 ppm/°C (-20–10 °C) |
| Safe Side Output Options |
LU voltage output / Li active current output |
| Max Output Load Resistance (Current) |
350 Ω |
| Supply Voltage Operating Range |
20 V DC ~ 35 V DC nominal 24 V DC |
| Max Current Consumption (24 V, 10mA load) |
65 mA |
| Maximum Internal Power Dissipation |
1.33 W |
| Galvanic Isolation Rating |
3-port full isolation, 253 V rms isolation barrier |
| Specification Category |
Detailed Technical Data |
| Mounting Standard |
EN 60715 35 mm standard DIN rail |
| Module Outer Dimensions (W × H × D) |
16 mm × 121 mm × 108 mm slim compact housing |
| Single Unit Net Weight |
110 g (0.11 kg) |
| Housing Material |
Flame-retardant yellow thermoplastic polymer |
| Termination Type |
Screw clamp terminals for shielded instrument cabling |
| Power Indicator |
Green LED for operational power status |
| Continuous Operating Ambient Temperature |
-20 °C ~ +60 °C |
| Storage Temperature Range |
-40 °C ~ +80 °C |
| Intrinsic Safety Certifications |
ATEX Ex ia IIC T4–T6, IECEx, FM Class I Div 1 / Div 2 |
| Hazardous Zone Compatibility |
Zone 0, Zone 1, Zone 2; Gas Groups A–D |
| Intrinsic Safety Entity Parameters |
Ui = 30 V, Ii = 200 mA, Pi = 1.33 W, negligible internal capacitance |
| Functional Safety Rating |
IEC 61508 assessed, SIL 2 capable (simplex architecture, HFT=0) |
| Industrial Compliance Standards |
EN 61010-1, EN 61326-1 industrial EMC, RoHS compliant |
| EMC Immunity Performance |
Criterion A continuous operation under industrial electromagnetic interference |
