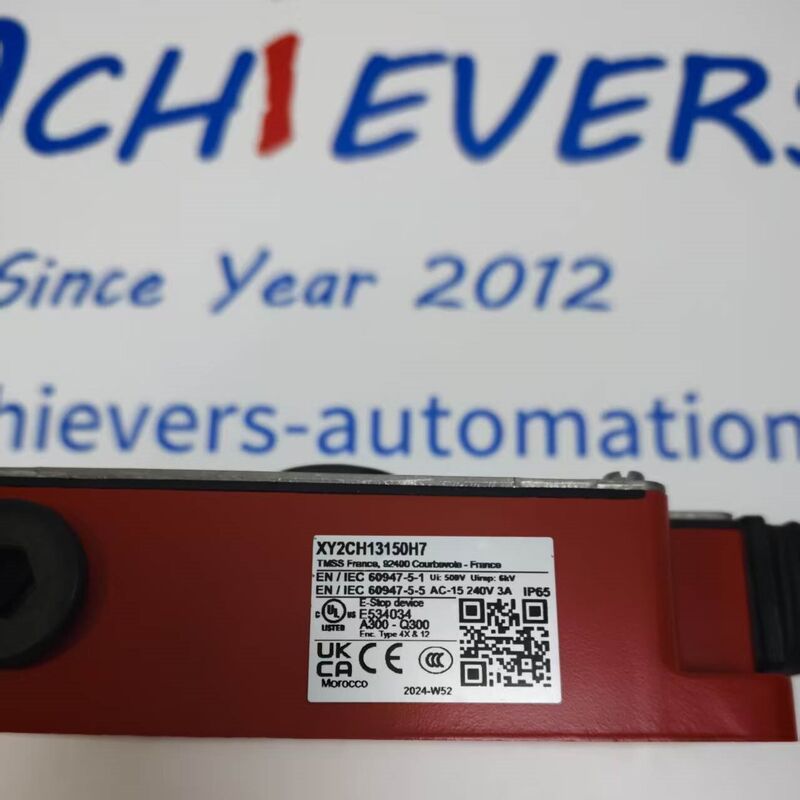

Telemecanique XY2-CH Cable-Operated Emergency Stop Switch
Product Details:
Manufacturer : Telemecanique
Product No. : XY2CH13150H7
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
This safety device complies fully with EN ISO 13850 emergency stop standards and IEC 60947-5-1 low voltage control component regulations. The mechanical latching design locks the switch in tripped status once cable tension triggers shutdown; a dedicated red manual reset knob must be physically rotated to restore normal circuit continuity, eliminating risk of accidental machine auto-restart after an emergency event. Dual independent NC safety contacts enable redundant safety circuit wiring to achieve PL d / Category 3 performance levels required for most automated production equipment.
IP65 sealed construction blocks dust, coolant splashes and moisture ingress. The H7 enclosure upgrade improves thermal stability and anti-corrosion performance versus standard base models. The 15m rated cable span makes this unit ideal for medium-length conveyor sections, packaging lines and single-section processing machinery where a single pull-wire E-stop covers the full operational hazard zone without multiple switch stations. All internal contact and trip mechanism components are engineered for millions of mechanical cycles with consistent trip pull force across full operating temperature range.
Detail:
| Parameter Item |
Standard Spec of Telemecanique XY2CH13150H7 |
| Brand |
Telemecanique (Schneider Electric) |
| Full Model Part Number |
XY2CH13150H7 |
| Product Series |
XY2CH Cable Pull Latching Emergency Stop Switch |
| Contact Configuration |
2 × NC Safety Contacts + 1 × NO Auxiliary Contact |
| Rated Thermal Current (Ith) |
10 A |
| Rated Insulation Voltage (Ui) |
250 V |
| AC Operational Voltage Range |
24 VAC ~ 230 VAC |
| DC Operational Voltage Range |
24 VDC ~ 250 VDC |
| Minimum Trip Pull Force |
80 N |
| Rated Max Wire Rope Length |
15 m |
| Trip Mechanism Type |
Mechanical Latching, Manual Rotary Reset Required |
| Safety Compliance Standards |
EN ISO 13850, IEC 60947-5-1 |
| Achievable Safety Performance Level |
PL d / Category 3 (Dual NC Contact Wiring) |
| Ingress Protection Rating |
IP65 (fully assembled with sealing gland) |
| Ambient Operating Temperature (H7 Variant) |
-30 ℃ ~ +75 ℃ |
| Storage & Transport Temperature |
-40 ℃ ~ +85 ℃ |
| Mechanical Service Life |
≥ 1,000,000 actuation cycles |
| Electrical Service Life (Full Rated Load) |
≥ 100,000 switching cycles |
| Shock Resistance |
IEC 60068-2-27, 30 g peak acceleration |
| Vibration Resistance |
10–150 Hz, 1 mm amplitude per IEC 60068-2-6 |
| Mounting Method |
Surface mounting via integrated molded lugs |
| Net Unit Weight |
445 g |
| Global Certifications |
CE, TÜV Machine Safety, cULus Listed |
| Component Name |
Raw Material Grade |
Functional Description for XY2CH13150H7 |
| Main Outer Enclosure (H7 Variant) |
Reinforced High-Temp PA66 Plastic, UL94 V0 Flame Retardant |
Sealed impact-resistant housing, improved heat and chemical resistance for coolant splash workshop environments |
| Internal Trip Tension Mechanism |
Hot-Dip Galvanized Carbon Steel |
Spring-loaded latching trigger assembly, consistent pull force threshold across temperature range |
| Contact Carrier Sliding Module |
Glass-Filled PBT Insulating Plastic |
Dual isolated contact slide blocks, low friction for repeated mechanical operation |
| Safety NC Contact Terminals |
Nickel-Plated Copper Conductors + PA66 Insulator |
Vibration-resistant screw terminals for redundant safety circuit wiring |
| Auxiliary NO Contact Module |
Tin-Plated Copper Alloy Contacts |
Signal output terminal for fault alarm and PLC status feedback |
| Manual Reset Rotary Knob |
TPE Overmolded Red PA Plastic |
High-visibility safety marking, ergonomic rotation to release latched trip state |
| Trip Compression Spring |
Austenitic Stainless Steel |
Anti-corrosion internal spring maintaining stable 80N trip threshold |
| Wire Rope Cable Entry Gasket |
NBR Oil-Resistant Rubber Seal |
Compression sealing to preserve IP65 rating at cable penetration point |
| Internal Circuit Isolation Divider |
Silicone-Free FR4 Insulating Plate |
Physical separation between dual NC safety contact circuits for redundant safety performance |
| Mounting Lugs |
Integrated Molded PA66 Plastic |
Reinforced structural lugs for secure bolt fastening to metal machine frames |
Brand
TELEMECANIQUE was founded in 1924 by the founding team of the Nanterre Electrical Equipment Factory in France. They initially invented the first contactor and quickly developed into a well-known brand in the field of industrial control and automation.
. In 1928, the company was renamed "La Telemecanique Electrique" and has long been focusing on products such as contactors, circuit breakers, thermal relays, programmable logic controllers (PLC), frequency converters, push button switches and sensors.
