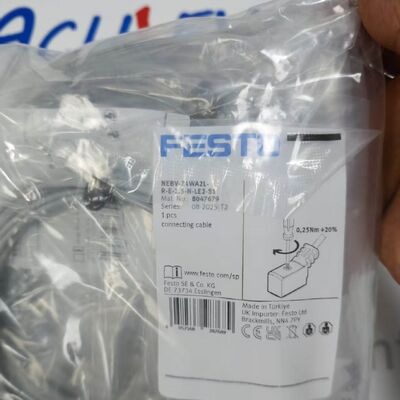

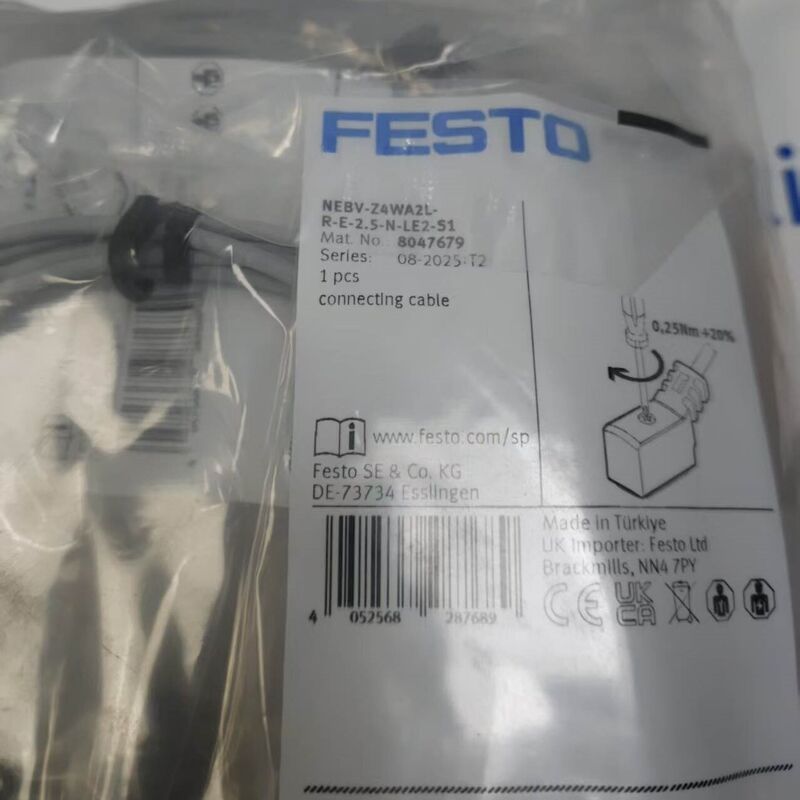

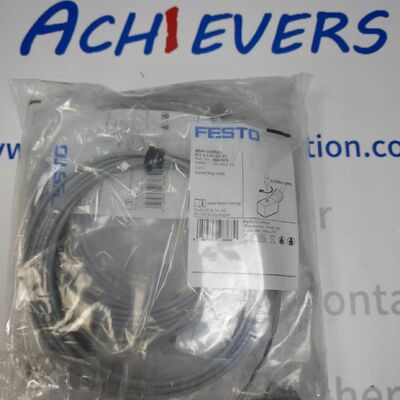

Festo NEBV-Z4WA2L-R-E-2 Solenoid Valve Connecting Cable
Description:
Manufacturer : Festo
Product No. : NEBV-Z4WA2L-R-E-2
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
This cordset features a compact angled ZC metric screw socket that mounts directly onto solenoid valves via central M2 fastening screw, eliminating complex field wiring. A built-in yellow LED displays valve energization status for quick on-site troubleshooting. The 2-core PUR flexible cable is certified for continuous drag chain movement with strict minimum bending radius limits. IP65 ingress protection is achieved only after full valve assembly, blocking workshop dust, coolant and splashing liquid. CRC3 high corrosion resistance grade, silicone-free LABS-free construction meets VDMA24364 standards, compatible with 24VDC industrial pneumatic control circuits across automation, packaging and electronic assembly equipment.
Detail:
| Parameter Item |
Standard Spec of Festo NEBV-Z4WA2L-R-E-2 |
| Brand |
Festo |
| Full Model Code |
NEBV-Z4WA2L-R-E-2 |
| Product Series |
NEBV Prefabricated Solenoid Valve Connecting Cable |
| Socket Pattern |
ZC Rectangular Metric Screw, Angled Outlet |
| Pin Count / Used Cores |
2 pins, fully occupied (2 cores) |
| Fixed Cable Length |
2 m |
| Wire Structure |
2 × 0.14 mm² stranded conductor |
| Outer Cable Diameter |
2.9 mm (Tolerance ±0.1 mm) |
| Nominal Operating Voltage |
DC 24 V |
| Allowed Operating Voltage Range |
DC 20.4 V ~ 26.4 V |
| Surge Withstand Capacity |
2.4 kV |
| Polarity Protection |
Bipolar Reverse Polarity Protection (R suffix) |
| Status Indicator |
Integrated Yellow LED for valve energization signal |
| Controller End Termination |
E = Open Bare Wire Flying Leads |
| Cable Compatibility |
Suitable for Energy Chain Drag Chain Movement |
| Minimum Dynamic Bending Radius |
≥29 mm |
| Ingress Protection Rating |
IP65 (Only when fully assembled to valve) |
| Ambient Operating Temperature |
-10 ℃ ~ +50 ℃ |
| Pollution Degree (Mounted State) |
3 |
| Connector Mating Durability |
50 insertion/extraction cycles |
| Corrosion Resistance Class |
CRC 3 (High Corrosion Stress) |
| LABS / PWIS Compliance |
VDMA24364-B1/B2-L (Silicone-Free) |
| Net Unit Weight |
43 g |
| Certifications |
CE EMC Compliant, RoHS Directive Compliant |
| Protective Earth Conductor |
Not Equipped |
| Component Name |
Raw Material Grade |
Functional Description for NEBV-Z4WA2L-R-E-2 |
| Socket Housing Body |
TPE-U (PU) Thermoplastic Elastomer |
Black compact molded housing, impact-resistant, integrated LED light window |
| Cable Outer Sheath |
TPE-U (PUR) Polyurethane |
Gray flexible sheath, oil/coolant resistant, long service life in drag chains |
| Internal Wire Insulation |
PP Polypropylene |
Low capacitance insulation, stable 24VDC signal transmission |
| Contact Pin Terminals |
Copper Alloy, Tin-Plated |
Low contact resistance, anti-oxidation for repeated mating cycles |
| Fastening Screw for Valve Mount |
Stainless Steel |
M2 central lock screw, anti-rust for long-term workshop operation |
| Built-in LED Indicator Chip |
Industrial Yellow SMD LED |
Low power consumption, clear visibility under factory lighting |
| Internal Protective Circuit Board |
FR4 Thin PCB + SMD Passive Components |
Realize bipolar reverse polarity blocking function |
| Molded Cable Strain Relief |
Integrated TPE-U Overmolding |
Eliminate wire fatigue breakage at angled cable outlet joint |
| Bare Wire Terminal Insulation Sleeve |
Heat-Shrink PP Tube |
Isolate exposed copper strands on controller open wire ends |
