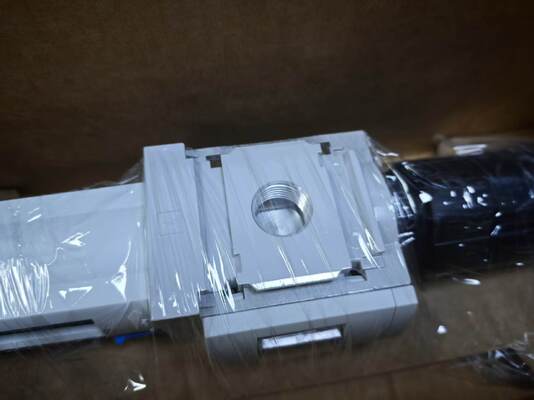

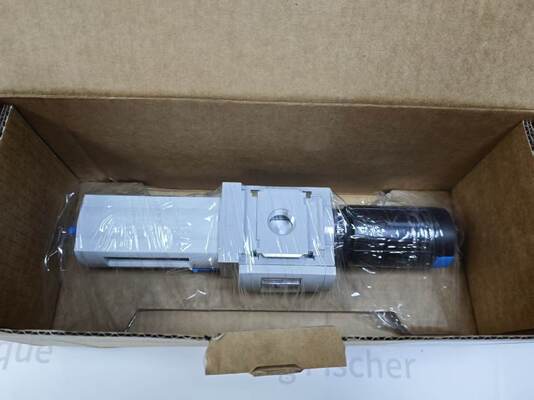

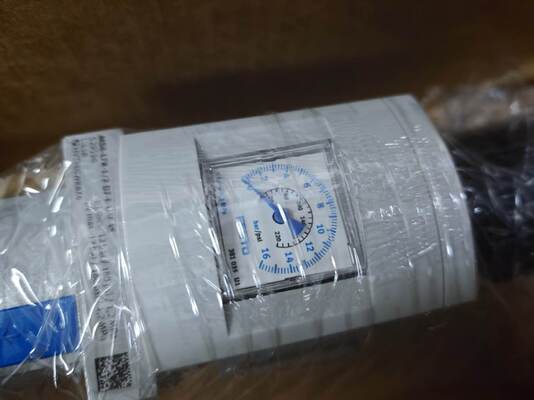

Festo MS6-LFR-12-D6-C-R-M-AS Modular Filter Regulator
Description:
Manufacturer : Festo
Product No. :MS6-LFR-12-D6-C-R-M-AS
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Festo MS6-LFR-12-D6-C-R-M-AS belongs to Festo MS modular compressed air preparation system, an all-in-one filter + pressure regulator combined unit for industrial pneumatic circuit purification and stable pressure controlFesto
Detail:
| Parameter Item |
Standard Spec of Festo MS6-LFR-12-D6-C-R-M-AS |
| Brand |
Festo |
| Full Model Code |
MS6-LFR-12-D6-C-R-M-AS (Catalog Order No.: 529176) |
| Product Series |
MS Modular Compressed Air Service Unit |
| Unit Function |
Integrated Filter + Pressure Regulator (LFR) |
| Module Size |
MS6 (62mm grid mounting dimension) |
| Pneumatic Port Thread |
G1/2 Female (Port 1 Inlet / Port 2 Outlet) |
| Pressure Regulation Grade |
D6 |
| Adjustable Output Pressure Range |
0.3 ~ 7 bar (0.03 ~ 0.7 MPa) |
| Max Inlet Operating Pressure |
20 bar (2.0 MPa) |
| Minimum Operating Inlet Pressure |
0.8 bar |
| Filtration Precision Grade |
C = 5 μm PE filter cartridge |
| Condensate Drain Type |
M = Manual Rotary Drain |
| Filter Bowl Variant |
R = Transparent PC bowl + plastic safety guard |
| Adjustment Knob Type |
AS = Lockable rotary knob with positioning detents |
| Standard Nominal Flow Rate (DIN 1343) |
5600 l/min |
| Max Pressure Hysteresis |
0.25 bar (0.025 MPa) |
| Max Condensate Storage Volume |
19 ml |
| Minimum Condensate Separation Efficiency |
>75% |
| Operating Medium |
Filtered Compressed Air / Inert Gas |
| Output Air Quality Class |
ISO 8573-1:2010 [6:4:4] |
| Ambient & Medium Operating Temperature |
-10 ℃ ~ +60 ℃ |
| Storage Temperature Range |
-10 ℃ ~ +60 ℃ |
| Corrosion Resistance Class |
CRC 2 (Moderate Corrosion Stress) |
| LABS / PWIS Compliance |
VDMA24364-B1/B2-L (Silicone-Free) |
| Total Net Weight |
875 g |
| Required Mounting Position |
Vertical ±5° only |
| Certifications |
RoHS Compliant, cULus Recognized |
| Component Name |
Raw Material Grade |
Functional Description for MS6-LFR-12-D6-C-R-M-AS |
| Main Housing Body |
Die-Cast Aluminum Alloy |
High rigidity integrated flow channel, anti-corrosion coated surface, modular stacking interface |
| 5μm Filter Cartridge |
Polyethylene (PE) Porous Filter Media |
Captures solid particles ≥5μm, high condensate interception rate, reusable after cleaning |
| Filter Bowl Container |
Transparent Polycarbonate (PC) |
Visible condensate liquid level observation, impact-resistant plastic material |
| Bowl Safety Guard |
Reinforced Plastic PA |
Full surrounding protection to prevent bowl rupture hazards under high pressure |
| Regulator Diaphragm & Internal Seals |
NBR Nitrile Rubber |
Bidirectional air tightness, stable pressure sensing, wide temperature tolerance |
| Adjustment Knob Assembly |
PA / POM Composite Plastic |
AS lockable detent structure, manual pressure fine-tuning |
| Manual Drain Valve Core |
POM Acetal Polymer |
Rotary switch structure for condensate drainage, air-tight closing design |
| Internal Flow Separator Disc |
POM Plastic |
Separate water droplets from compressed air before filtration stage |
| Fastening Screws & Fasteners |
Galvanized Anti-Rust Carbon Steel |
Lock filter bowl, regulator module and main housing as one assembly |
| Secondary Venting Valve Component |
TPE Soft Seal + POM Valve Core |
Rapid exhaust of residual outlet pressure when inlet air is cut off |
