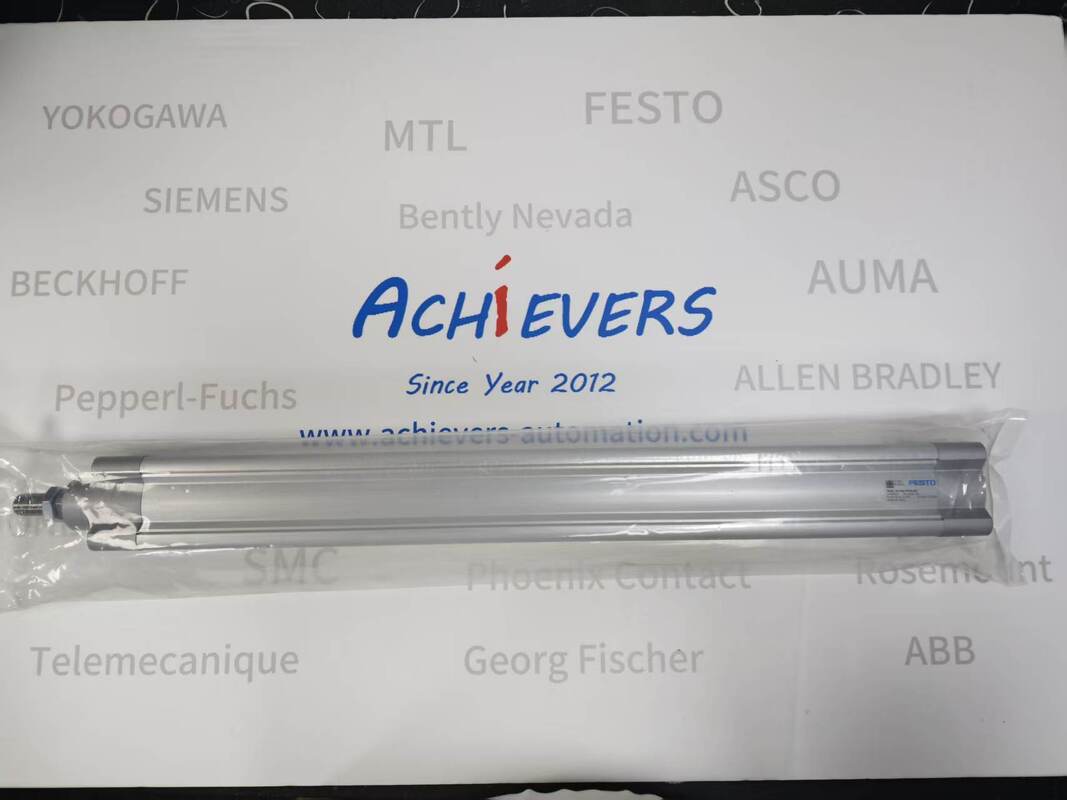

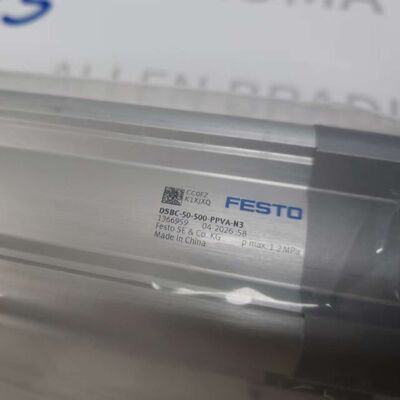

Festo DSBC-50-500-PPVA-N3 ISO 15552 Standard Pneumatic Cylinder
Description:
Manufacturer : Festo
Product No. : DSBC-50-500-PPVA-N3
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
This actuator adopts single-ended external M16×1.5 piston rod thread design, triple-sided integrated sensor grooves for contactless proximity switch installation to detect full-stroke piston positions. Dual-end adjustable PPV pneumatic cushioning delivers precise impact buffering for long 500mm stroke reciprocation, limiting end-position impact energy to 1 J with 22mm standard cushion travel length. Classified CRC2 moderate corrosion resistance, LABS-free construction conforming to VDMA24364-B1/B2-L, compatible with cleanroom Class 5 environments per ISO 14644-1Festo. Wide pressure and temperature adaptability supports continuous operation on automated production lines, material handling gantries, heavy clamping and long linear positioning systems.
Detail:
| Parameter Item |
Standard Specification of Festo DSBC-50-500-PPVA-N3 |
| Brand |
Festo |
| Full Model Code |
DSBC-50-500-PPVA-N3 |
| Manufacturer Order No. |
1366959 |
| Product Series |
DSBC ISO 15552 Standard Profile Cylinder |
| Bore Diameter |
50 mm |
| Rated Standard Stroke |
500 mm |
| Operation Mode |
Double Acting (Air-powered extend & retract) |
| Cushion Type |
PPVA: Adjustable Pneumatic Cushion, Both Ends |
| Cushion Travel Length |
22 mm |
| Max End Position Impact Energy |
1 J |
| Piston Rod Thread Size |
M16 × 1.5 External Male Thread |
| Air Port Connection Thread |
G1/4 |
| Operating Pressure Range |
0.04 ~ 1.2 MPa (0.4 ~ 12 Bar / 5.8 ~ 174 PSI) |
| Proof Test Pressure |
1.8 MPa |
| Operating Medium |
Filtered Compressed Air ISO 8573-1:2010 [7:4:4] |
| Ambient Operating Temperature |
-20 ℃ ~ +80 ℃ |
| Theoretical Extend Force @ 6 Bar |
1178 N |
| Theoretical Retract Force @ 6 Bar |
990 N |
| Moving Mass (0mm Stroke Base) |
365 g |
| Additional Moving Mass per 10mm Stroke |
25 g |
| Basic Weight (0mm Stroke) |
1190 g |
| Corrosion Resistance Class |
CRC 2 (Moderate Corrosion Stress) |
| LABS / PWIS Compliance |
VDMA24364-B1/B2-L (Silicone-Free) |
| Cleanroom Suitability |
ISO 14644-1 Class 5 |
| Conforming Standard |
ISO 15552 |
| Position Detection Support |
Compatible with Festo proximity sensors (3-side barrel slots) |
| Component Name |
Raw Material Grade |
Functional Description for DSBC-50-500-PPVA-N3 |
| Cylinder Barrel |
Wrought Aluminum Alloy, Smooth Hard Anodized |
Extruded profile with triple sensor grooves, anti-wear inner wall, lightweight high rigidity for 500mm long stroke |
| Piston Rod |
High-Alloy Steel, Hard Chrome Plated |
Low friction surface, high straightness, resist bending under long-stroke lateral loads |
| Piston |
Anodized Wrought Aluminum Alloy |
Integrated dual-direction TPE-U sealing structure, balanced mass for stable reciprocation |
| Piston Main Seal |
TPE-U (PU) Polyurethane |
Bidirectional air tightness, low wear for millions of cycle operations |
| Piston Rod Wiper Seal |
TPE-U (PU) |
Block dust, coolant and particulate contamination entering internal barrel chamber |
| Cushion Boss & Cushion Piston |
POM Acetal Plastic |
Low-friction adjustable pneumatic cushion core component, control air exhaust flow for buffering |
| Front & Rear End Covers |
Die-Cast Coated Aluminum Alloy |
Integrated port bosses, mounting threaded holes, sealed air chamber separation |
| Mounting Fastening Screws / Nuts |
Galvanized Carbon Steel |
Anti-rust tie rod fasteners to lock barrel and end covers into integrated assembly |
| Internal Bearing Bushing |
POM Polymer Composite |
Self-lubricating guide sleeve to reduce piston rod friction noise |
| Buffer Cushion Seal |
TPE-U (PU) |
Seal cushion air chamber to maintain stable adjustable buffering performance |
