AirTAC SDA25X40 Compact Thin Pneumatic Cylinder
Product Details:
Manufacturer : AirTAC
Product No. : SDA25X40
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

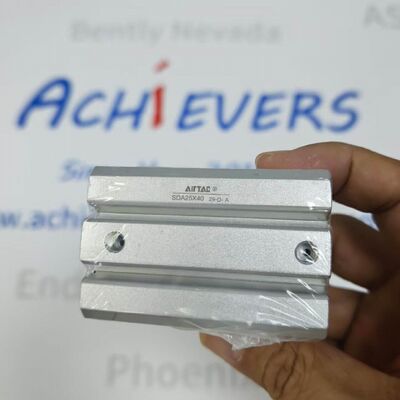

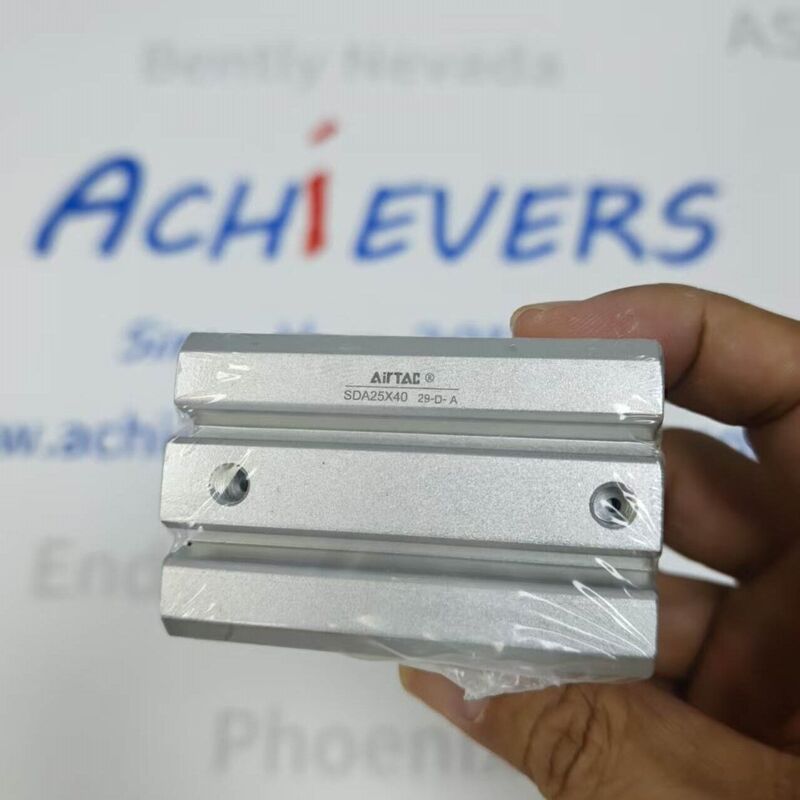

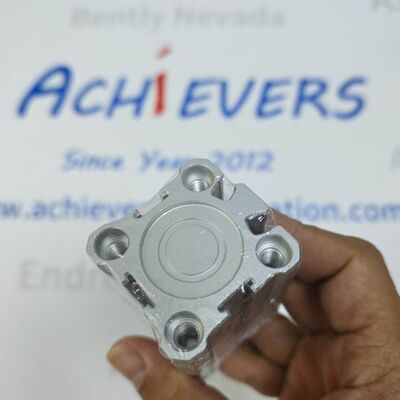

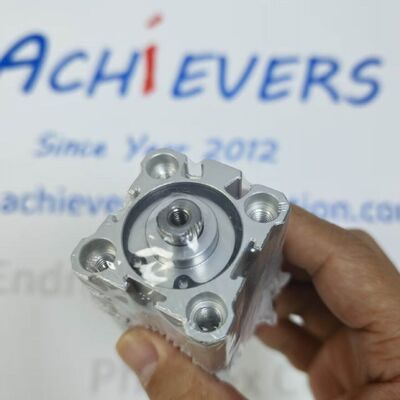

The AirTAC SDA25X40 belongs to AirTAC classic SDA ultra-thin compact pneumatic cylinder series, standard double-acting design with fixed 25mm bore and 40mm rated stroke. Adopting integrated riveting connection for cylinder barrel & rear cover, piston & piston rod, the whole machine features ultra-flat slim outline to drastically save installation space for narrow mechanical layouts. The cylinder barrel reserves full-circumferential magnetic sensor slots, supporting external reed switches for stroke position feedback without extra machining. Built-in TPU bumper cushions eliminate reciprocating impact noise and protect internal components during high-frequency cycling. This model is widely deployed for clamping, lifting, pushing and positioning linear motion in automated assembly, packaging, electronic testing and light processing equipment. Standard SDA25X40 base model does not come with built-in permanent magnet; magnetic variants carry suffix S (SDA25X40S).
Detail:
| Parameter Item |
Standard Spec of AirTAC SDA25X40 |
| Official Brand |
AirTAC |
| Full Model Code |
SDA25X40 |
| Product Series |
SDA Ultra-Thin Compact Pneumatic Cylinder |
| Bore Diameter |
25 mm |
| Rated Standard Stroke |
40 mm |
| Action Mode |
Double Acting (Push & Pull Air Drive) |
| Built-in Magnet |
Not Equipped (Magnet version: SDA25X40S) |
| Working Medium |
Filtered Compressed Air (40μm precision filter required) |
| Standard Operating Pressure Range |
0.15 ~ 1.0 MPa (1.5 ~ 10 Bar / 22 ~ 145 PSI) |
| Hydrostatic Proof Test Pressure |
1.5 MPa (15 Bar / 215 PSI) |
| Operating Ambient Temperature |
-20 ℃ ~ +70 ℃ |
| Piston Reciprocating Speed |
30 ~ 500 mm/s |
| Air Port Thread Size |
PT1/8 (Optional M5×0.8 / G1/8 / NPT1/8) |
| Internal Cushion Type |
Fixed TPU Bumper Cushion (Non-adjustable) |
| Stroke Tolerance |
+1.0 / 0 mm |
| Lubrication Requirement |
Non-lube compatible |
| Component Name |
Raw Material Grade |
Functional Description for SDA25X40 |
| Cylinder Barrel |
Extruded Aluminum Alloy, Hard Anodized Inner Wall |
Rolled inner surface reduces friction, anti-corrosion, slim integrated forming |
| Piston Rod |
Medium Carbon Steel, Hard Chrome Plated |
Low wear, high straightness, stable linear output |
| Piston Seal Assembly |
NBR Nitrile Rubber (Bidirectional Heterogeneous Seal) |
Dual-direction air tightness, internal grease storage for long-cycle operation |
| Front & Rear End Covers |
Die-Cast Aluminum Alloy |
Integrated mounting through holes, sealed air chamber separation |
| Shock Absorbing Bumper Pad |
TPU Thermoplastic Polyurethane |
Absorb impact during piston limit travel, reduce metal collision noise |
| Magnetic Sensor Groove |
Integral Barrel Molding (Aluminum) |
Full-circle slot for reed switch clamping, no secondary processing |
| Internal Fastening Rivets |
Anti-rust Coated Carbon Steel |
Rivet lock barrel, cover and piston assembly to avoid loose structure |
| External Mounting Boss |
Cast Aluminum Alloy |
Multi-direction mounting holes for horizontal/vertical installation |
