AirTAC F-M20X150F High-Precision Male Straight Pneumatic Fitting
Product Details:
Manufacturer : AirTAC
Product No. : TN16X40S
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

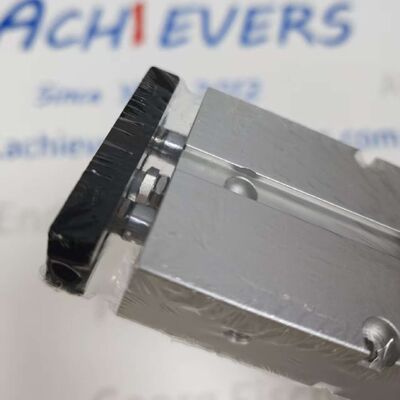

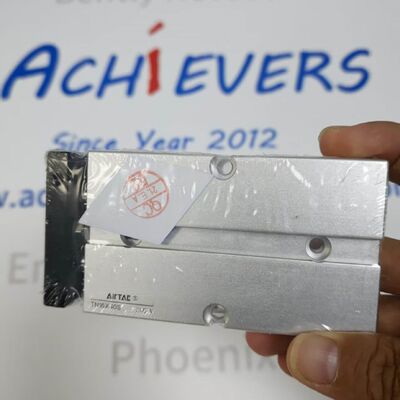

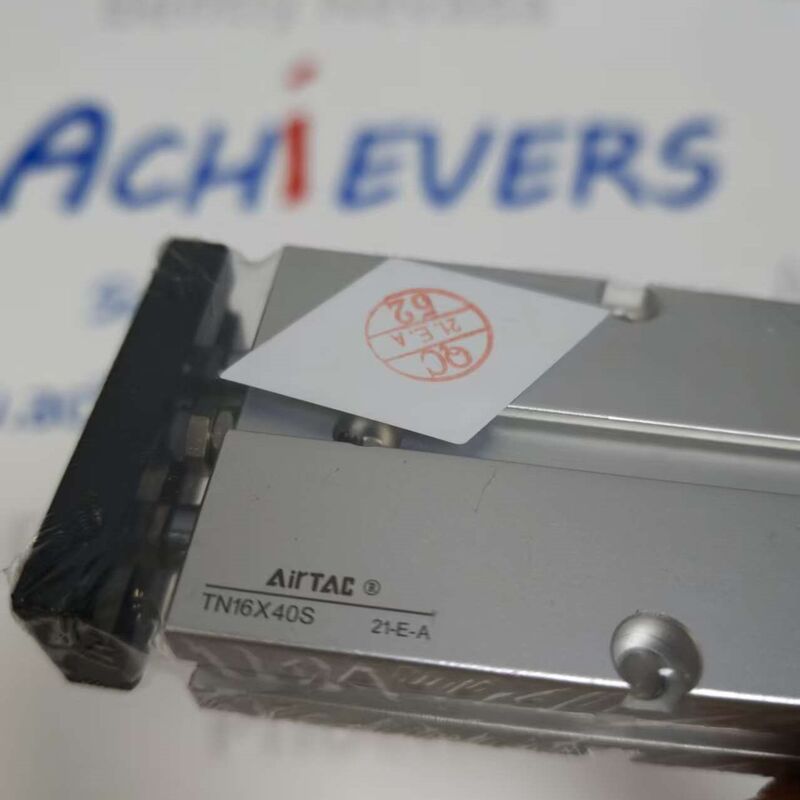

The AirTAC TN16X40S is a standard twin-rod guided pneumatic cylinder under AirTAC TN series, designed as double acting with integrated permanent magnet for magnetic sensor installation. The dual parallel piston rod structure delivers superior anti-bending, anti-torsion and lateral load resistance compared to single rod cylinders. Adopting embedded body mounting layout, three-sided mounting holes on the fixed support plate support multi-angle installation to save mechanical layout space. Front adjustable rubber bumpers buffer impact during reciprocating movement and allow minor stroke fine-tuning. Model suffix "S" stands for magnet equipped, which is the standard factory configuration for all AirTAC TN bore 16 cylinders. Widely matched with automated assembly lines, packaging machinery, material conveying jigs, semiconductor testing equipment and light industrial pneumatic actuating systems.
Detail:
| Parameter Item |
Standard Value of AirTAC TN16X40S |
| Brand |
AirTAC |
| Full Model |
TN16X40S |
| Product Series |
TN Twin Rod Guided Cylinder |
| Bore Size |
16 mm |
| Rated Stroke |
40 mm |
| Actuating Type |
Double Acting (Push & Pull by Compressed Air) |
| Magnet Configuration |
With Built-in Permanent Magnet (Suffix S) |
| Working Medium |
Filtered Compressed Air (40μm filter element required) |
| Standard Operating Pressure |
0.15 ~ 1.0 MPa (1.5 ~ 10 Bar) |
| Proof Test Pressure |
1.5 MPa (215 PSI) |
| Operating Ambient Temperature |
-20 ℃ ~ +70 ℃ |
| Piston Reciprocating Speed Range |
30 ~ 500 mm/s |
| Air Port Thread Size |
M5 × 0.8 |
| Standard Cushion Type |
Adjustable Front Rubber Bumper Cushion |
| Non-rotating Tolerance |
≤ 0.3° |
| Allowable Lateral Side Load |
Medium (Dual Rod Reinforced Structure) |
| Component Name |
Raw Material |
Functional Description for TN16X40S |
| Cylinder Barrel |
High-density Extruded Aluminum Alloy |
Anti-corrosion, lightweight, high structural rigidity |
| Dual Piston Rod |
S45C Carbon Steel, Hard Chrome Plated |
Wear-resistant, low friction, anti-torsion support |
| Piston Seal Ring |
NBR Nitrile Rubber |
Air tightness, wear resistance for long cycle life |
| Front & Rear End Cover |
Die-cast Aluminum Alloy |
Integrated mounting hole layout, sealed air chamber |
| Adjustable Bumper Pad |
TPU Thermoplastic Polyurethane |
Shock absorption, stroke fine adjustment |
| Built-in Magnet |
Permanent Ferrite Magnet |
Trigger magnetic position sensors for stroke feedback |
| Guide Support Plate |
Cast Aluminum Alloy |
Three-sided mounting holes for multi-position installation |
| Fastening Screws |
Carbon Steel Anti-rust Coating |
Fix barrel, end cover and guide plate as integrated unit |
Brand
