SICK WTB26I-39721122ZZZ W26 Background Suppression Photoelectric Sensor
Product Details:
Manufacturer : Sick
Product No. : WTB26I-39721122ZZZ
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required,supporting professional procurement and long-term cooperation.

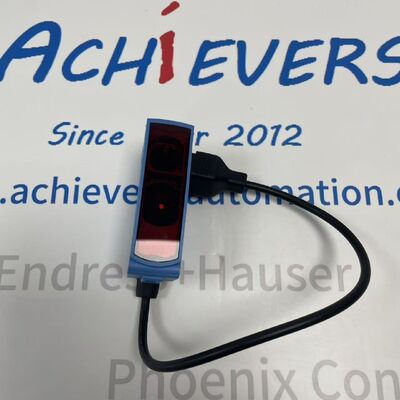

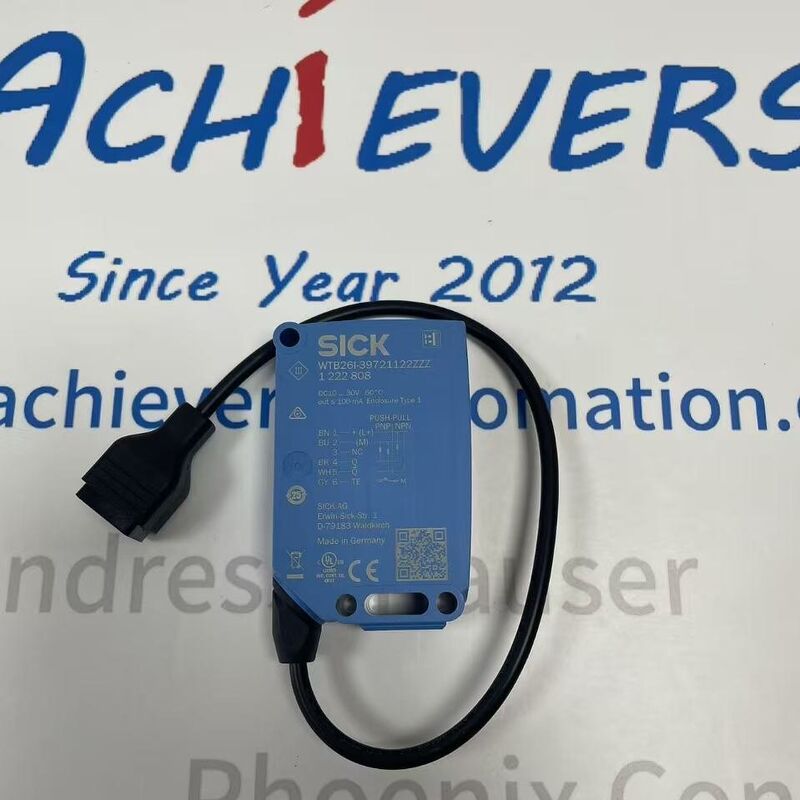

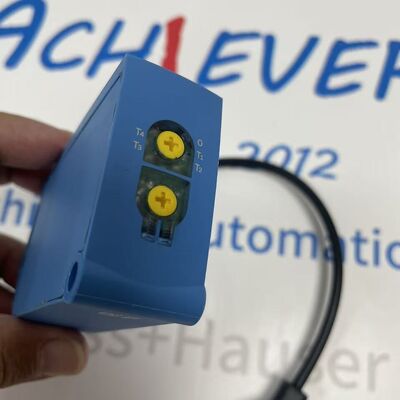

The SICK WTB26I-39721122ZZZ is a high-performance compact diffuse photoelectric sensor with advanced background suppression technology, belonging to SICK’s industry-proven W26 sensor series. Designed for precise object detection in complex industrial environments, this sensor delivers reliable switching output regardless of interfering background surfaces, effectively eliminating false triggers caused by reflective walls, conveyor frames, and metallic structures.
Description:
|
Technical Item
|
Parameter Value
|
|
Product Model
|
WTB26I-39721122ZZZ
|
|
Manufacturer
|
SICK
|
|
Manufacturer Part Number
|
1222808
|
|
Sensor Principle
|
Diffuse reflection with background suppression
|
|
Light Source
|
Infrared LED (850 nm, risk-free group)
|
|
Min. Trigger Sensing Distance
|
30 mm
|
|
Max. Switching Sensing Distance
|
2000 mm
|
|
Adjustable Threshold Range
|
180 mm – 2000 mm
|
|
Recommended Optimal Range
|
200 mm – 800 mm
|
|
Output Type
|
Push-pull (PNP / NPN switchable)
|
|
Switching Mode
|
Selectable Light-On / Dark-On
|
|
Operating Voltage Range
|
10 V DC – 30 V DC
|
|
Residual Ripple
|
≤ 5 Vss
|
|
No-Load Current Consumption
|
≤ 30 mA (@24 V DC)
|
|
Max Output Current
|
100 mA per channel
|
|
Response Time
|
≤ 500 µs
|
|
Max Switching Frequency
|
1000 Hz
|
|
Timing Function Range
|
0 ms – 30000 ms (on/off delay & pulse mode)
|
|
Protection Functions
|
Reverse polarity, overload, short-circuit protection
|
|
MTTFD Value
|
507 Years
|
|
LED Service Life (@25°C)
|
100,000 Hours
|
|
Physical & Environmental Item
|
Parameter Value
|
|
External Dimensions (W × H × D)
|
24.6 mm × 82.5 mm × 53.3 mm
|
|
Net Weight
|
Approx. 100 g
|
|
Housing Material
|
VISTAL® high-performance industrial plastic
|
|
Lens Material
|
PMMA plastic
|
|
Connection Type
|
298 mm fixed cable with 6-pin Q6 DC-coded plug connector
|
|
Cable Specifications
|
PVC sheath, 0.14 mm² wire cross-section, Ø4.8 mm diameter
|
|
Max Mounting Torque
|
1.3 Nm
|
|
Ingress Protection Rating
|
IP65 (IEC 60529)
|
|
Operating Temperature Range
|
-40 °C to +60 °C
|
|
Storage Temperature Range
|
-40 °C to +75 °C
|
|
Vibration Resistance
|
10 Hz – 2000 Hz, 0.5 mm amplitude / 10 g (EN 60068-2-6)
|
|
Shock Resistance
|
50 g mechanical shock (EN 60068-2-27)
|
|
Relative Humidity
|
35% – 95% (Non-condensing)
|
|
Compliance Standards
|
EN 60947-5-2, CE, ECOLAB, SIRIC Certified
|
|
Indicator Lights
|
Green (power status), Yellow (signal reception), BluePilot dual blue adjustment indicators
|
BRAND
SICK is a German brand founded in 1946, named after its founder, Dr. Erwin Sick. The company's headquarters is located in Waldkirch, a city in southwestern Germany. SICK is one of the international leading manufacturers in sensor technology and analytical instrumentation systems and holds a significant position in the field of industrial automation.
SICK's product range includes various types of sensors, encoders, switches, connectors, cables, photoelectric sensors, servo encoders, fiber optic sensors, laser scanners, safety switches, proximity sensors, and more. Additionally, it produces gas analyzers, flow sensors, and inclination sensors. These devices are widely used across various industries, such as packaging, food and beverage, machine tools, automotive manufacturing, logistics, airport facilities, electronics, and textiles.
