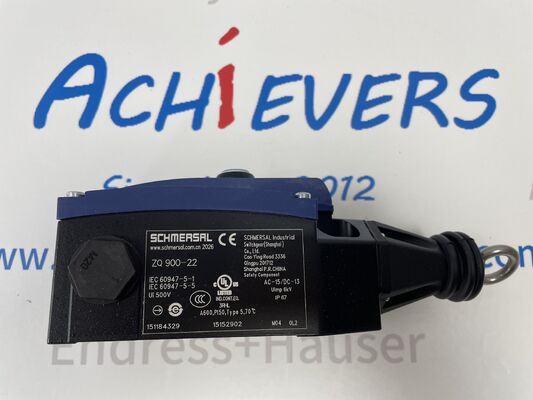

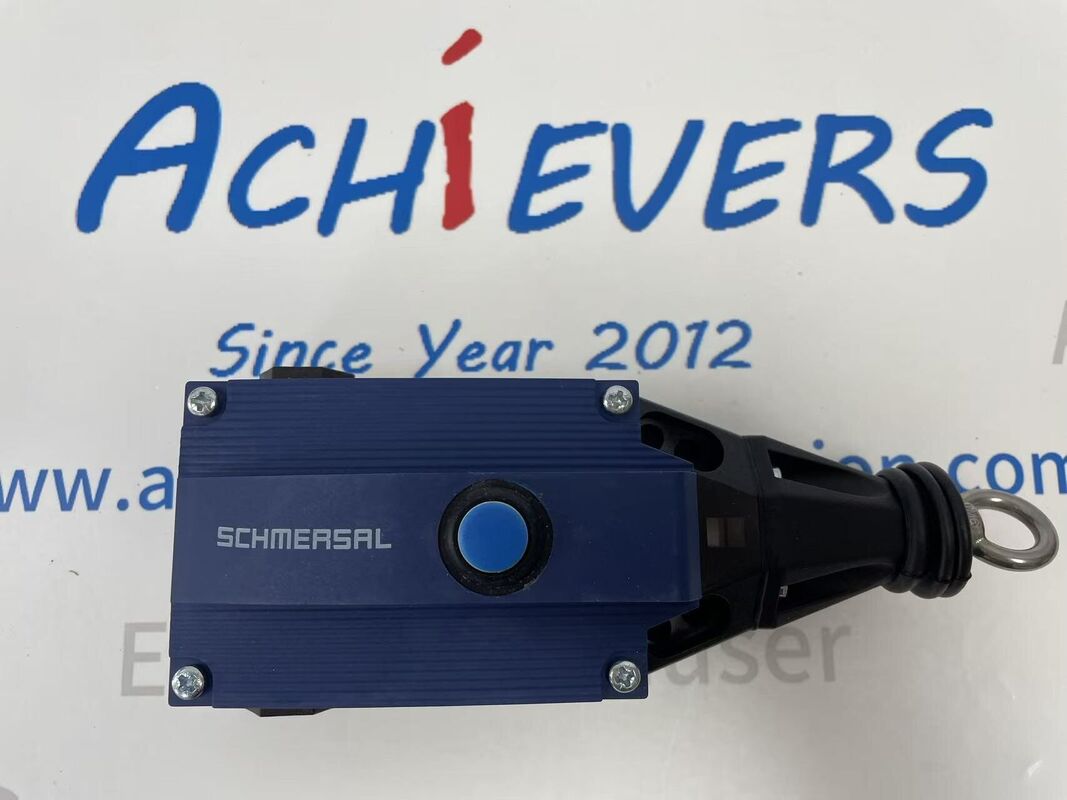

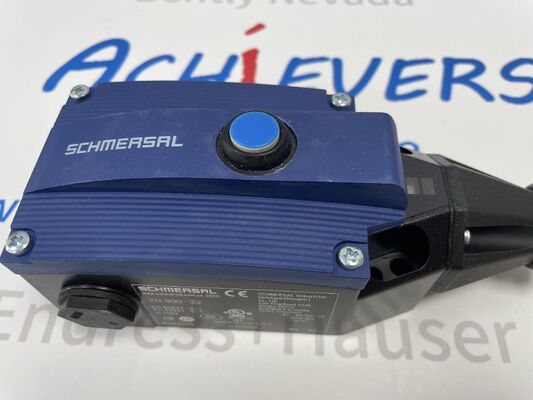

Schmersal ZQ 900-22 Heavy-Duty Emergency Pull Wire Safety Switch
Description:
Manufacturer : Schmersal
Product No. :ZQ 900-22
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Schmersal ZQ 900-22 is a robust industrial emergency pull wire safety switch designed for long-distance machine emergency stop protection in large-scale automated production systems. Manufactured by Schmersal, a global leader in machine safety technology, this pull rope switch delivers reliable manual emergency shutdown functionality for extended machinery zones that cannot be fully covered by standard emergency stop buttons.
Detail:
|
Technical Item
|
Parameter Value
|
|
Product Model
|
ZQ 900-22
|
|
Manufacturer
|
Schmersal
|
|
Manufacturer Item Code
|
101184329
|
|
Product Type
|
Emergency Pull Wire Safety Switch
|
|
Contact Configuration
|
2 NO (Auxiliary) / 2 NC (Safety)
|
|
Switching Principle
|
Snap-action mechanical switching
|
|
Contact Material
|
Silver alloy
|
|
Rated Insulation Voltage (Ui)
|
500 V
|
|
Rated Impulse Withstand Voltage (Uimp)
|
6 kV
|
|
Thermal Test Current
|
6 A
|
|
AC Utilization Category
|
AC-15, 230 V AC / 4 A
|
|
DC Utilization Category
|
DC-13, 24 V DC / 1 A
|
|
Max Support Wire Length
|
75 m
|
|
B10D Value (NC Contact)
|
100,000 operations
|
|
Minimum Mechanical Lifespan
|
1,000,000 operations
|
|
Safety Standard Compliance
|
EN ISO 13850, EN ISO 13849-1, EN IEC 60947-5-1, EN IEC 60947-5-5
|
|
Certifications
|
CCC, cULus
|
|
Mission Time
|
20 Years
|
|
Physical & Environmental Item
|
Parameter Value
|
|
Housing Material
|
Zinc die-cast (painted finish)
|
|
Cover Material
|
Glass-fiber reinforced thermoplastic
|
|
Ingress Protection Rating
|
IP65, IP67
|
|
External Dimensions (L × W × H)
|
69.7 mm × 71.5 mm × 220.3–236.3 mm
|
|
Net Gross Weight
|
1440 g
|
|
Cable Entry Ports
|
3 × M20 × 1.5 threaded entries
|
|
Terminal Type
|
Screw terminals
|
|
Applicable Cable Cross-Section
|
0.75 mm² – 2.5 mm²
|
|
Operating Temperature Range
|
-25 °C to +70 °C
|
|
Relative Humidity Range
|
30% – 95% (Non-condensing)
|
|
Operation Mode
|
One-side pull operation
|
|
Reset Method
|
Manual release push button reset
|
|
Structural Features
|
Anti-twist towing eye, external watertight collar, position indicator
|
