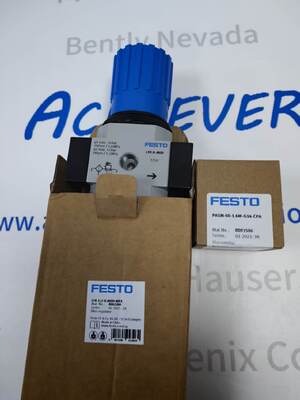

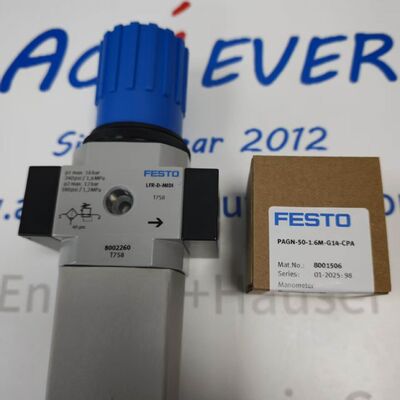

Festo PAGN-50-1.6M-G14-CPA EN 837-1 Flanged Panel Mount Pressure Gauge
Description:
Manufacturer : Festo
Product No. : PAGN-50-1.6M-G14-CPA
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Festo PAGN-50-1.6M-G14-CPA is a precision industrial flanged pressure gauge manufactured in compliance with EN 837-1 international standards. As a reliable member of the Festo PAGN series pressure measurement components, this unit delivers accurate visual pressure monitoring for standard pneumatic systems, industrial automation equipment, and fluid control circuits.
Designed with a 50 mm nominal dial size and dual-scale display (MPa outer scale / bar inner scale), the Festo PAGN-50-1.6M-G14-CPA supports a 0–1.6 MPa (0–16 bar) measuring range. It adopts a classic Bourdon tube sensing structure, ensuring stable and repeatable pressure detection with a standard 2.5 accuracy class. The integrated G1/4 rear pneumatic port and dedicated panel-flange mounting structure enable fast, space-saving installation on control panels, valve manifolds, and pneumatic stations.
Detail:
|
Technical Item
|
Parameter Value
|
|
Product Model
|
PAGN-50-1.6M-G14-CPA
|
|
Manufacturer
|
Festo
|
|
Compliance Standard
|
EN 837-1
|
|
Certification
|
CPA Approved
|
|
Dial Nominal Size
|
50 mm
|
|
Measuring Range
|
0–1.6 MPa / 0–16 bar / 0–232 psi
|
|
Measurement Accuracy Class
|
2.5
|
|
Sensing Structure
|
Bourdon tube mechanical structure
|
|
Pneumatic Connection
|
G1/4 rear-centered port
|
|
Mounting Type
|
Flanged panel mounting
|
|
Display Mode
|
Dual-scale (MPa outer, bar inner)
|
|
Alternating Load Factor
|
0.66
|
|
Applicable Media
|
Inert gases, neutral fluids (excludes acetylene, oxygen)
|
|
Material & Environmental Item
|
Parameter Value
|
|
Wetted Parts Material
|
Brass (corrosion-resistant)
|
|
Housing Material
|
ABS industrial plastic (black)
|
|
Dial Cover Material
|
SAN transparent material
|
|
Mounting Ring / Screw Material
|
Steel
|
|
Protection Rating
|
IP43
|
|
Operating Ambient Temperature
|
-20 °C to +60 °C
|
|
Medium Temperature Range
|
-20 °C to +60 °C
|
|
Storage Temperature Range
|
-40 °C to +70 °C
|
|
Environmental Compliance
|
RoHS compliant, VDMA24364-B1/B2-L compliant
|
|
Net Weight
|
100 g
|
