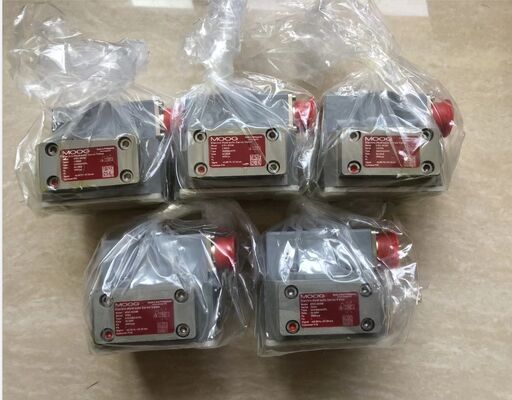

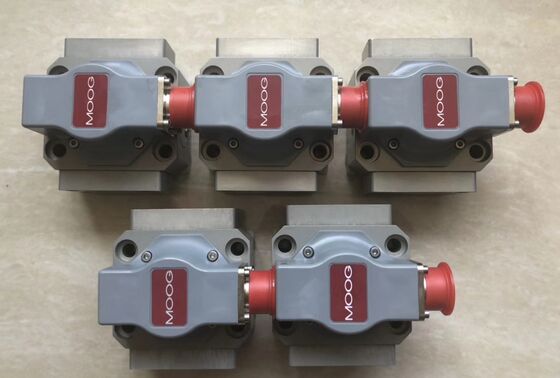

MOOG G761-3033B Electro-Hydraulic Servo Valve
Product Details:
Manufacturer : MOOG
Product No. : G761-3033B
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

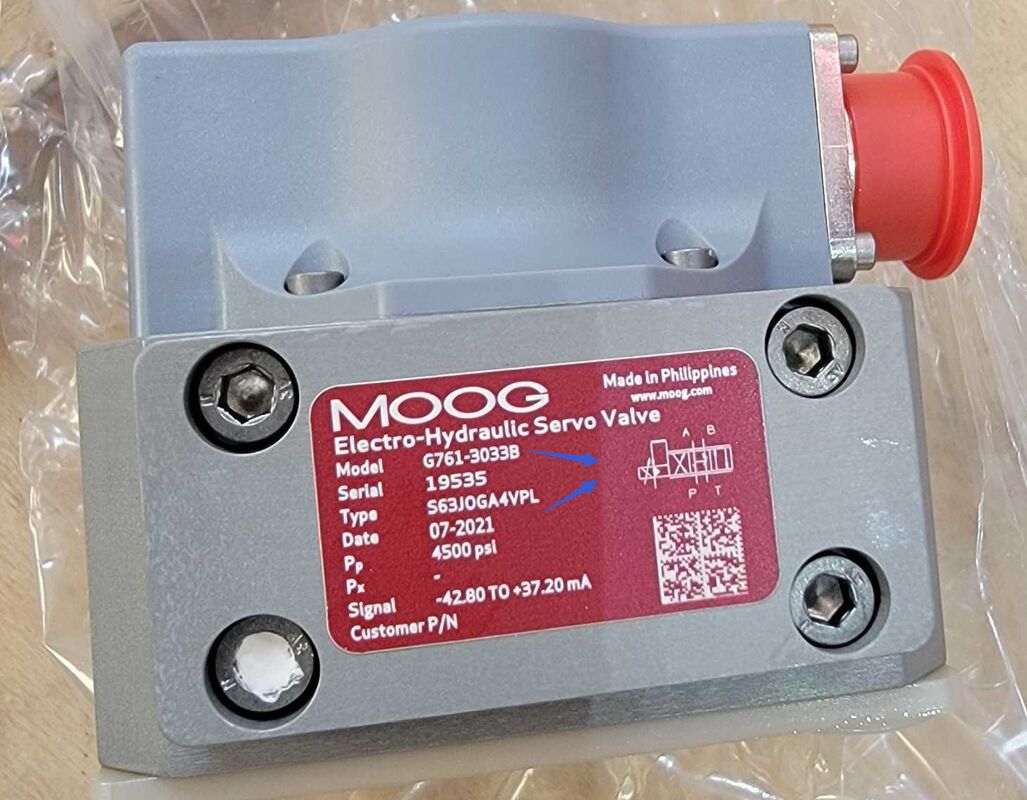

The MOOG G761-3033B is a high-performance two-stage electro-hydraulic servo valve, part of MOOG’s renowned G761 Series, specifically designed for applications requiring precise flow and pressure regulation in harsh industrial environments. Equipped with advanced dry torque motor and dual-nozzle flapper pilot stage technology, combined with a cross spool output stage and cantilever spring rod mechanical feedback, this servo valve delivers superior dynamic response, low hysteresis, and excellent anti-pollution capability for optimal control accuracy. The G761-3033B boasts a robust design with an anodized aluminum alloy body, field-replaceable pilot stage disc filter, and fail-safe function, making it ideal for critical industrial systems that demand reliability and high dynamic performance. As a key product in MOOG’s portfolio, it leverages over 70 years of MOOG’s expertise in servo valve design and manufacturing, ensuring consistent performance in harsh industrial environments, particularly in energy power and metallurgical applications.
Detail:
|
Parameter
|
Specification
|
|
Product Model
|
MOOG G761-3033B
|
|
Product Series
|
MOOG G761 Series Electro-Hydraulic Servo Valve
|
|
Valve Type
|
Two-stage electro-hydraulic servo valve, T-type cross-throttle four-way flow control valve
|
|
Pilot Stage
|
Dry torque motor-driven symmetrical dual-nozzle flapper valve, mechanical feedback via cantilever spring rod
|
|
Max Operating Pressure (P/A/B/X Ports)
|
315 bar (4,500 psi)
|
|
Rated Flow (@ 35 bar pressure drop)
|
4–63 L/min (1.06–16.64 gpm), depending on pressure drop
|
|
Operating Temperature Range (Oil)
|
-29°C to +135°C (-20°F to +275°F)
|
|
Mounting Standard
|
ISO 4401, T-type oil circuit layout
|
|
Seal Material
|
Fluororubber (FKM)
|
|
Parameter
|
Specification
|
|
Frequency Response
|
High frequency response range, suitable for dynamic load regulation
|
|
Rated Electrical Signal
|
Analog voltage/current (configurable), rated current 40 mA (single coil)
|
|
Coil Resistance
|
80 Ω (single coil)
|
|
Hysteresis
|
Low hysteresis, ensuring high control precision
|
|
Filter Requirement
|
NAS 1638 Class 8 (oil cleanliness), 5μm filter precision
|
|
Special Function
|
Fail-Safe function, auto-resets to safe position on power failure
|
|
Maintenance Feature
|
Field-replaceable pilot stage disc filter
|
|
Certifications
|
CE, ISO 9001, RoHS, WEEE
|
Brand:
Founded in 1951, MOOG initially focused on the design and supply of aircraft and missile components. With the development of technology, MOOG's motion control technology has been widely used in many markets and application fields such as civil aircraft cockpits, power generation turbines, Formula One racing cars, and medical infusion systems. Company founder William C. Moog was an inventor and entrepreneur. He successfully developed the electro-hydraulic servo valve in 1951, marking the start of MOOG's innovation in the motion control industry.
Company Introduction:
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
