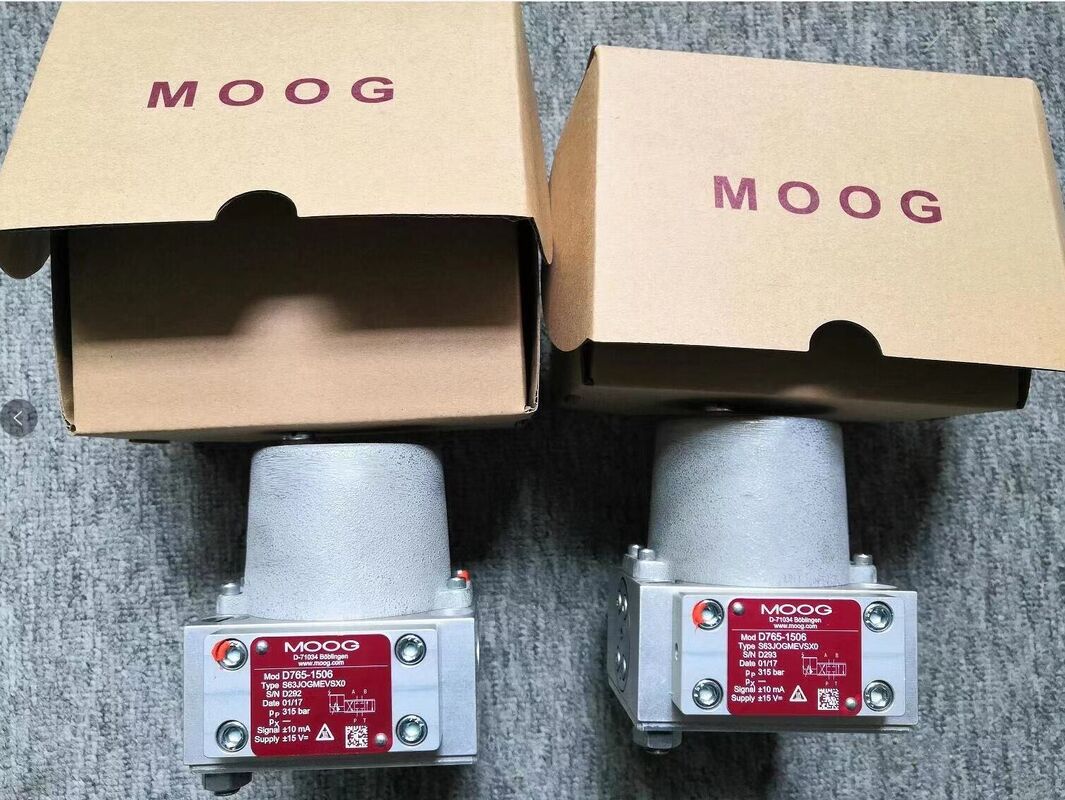

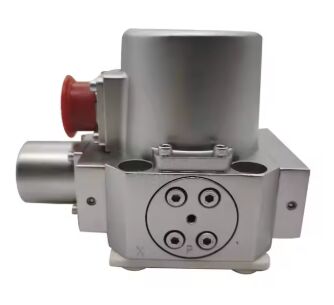

MOOG D765-1506 Electro-Hydraulic Servo Valve
Product Details:
Manufacturer : MOOG
Product No. : D765-1506
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The MOOG D765-1506 is a high-performance two-stage electro-hydraulic servo valve, part of MOOG’s renowned D765 Series, specifically designed for applications requiring precise flow and pressure regulation in medium to large flow industrial systems. Equipped with advanced dry torque motor and dual-nozzle flapper pilot stage technology, this servo valve delivers superior dynamic response, low hysteresis, and excellent linearity for optimal control accuracy. The D765-1506 boasts a robust design with anodized 6061-T6 aluminum alloy body, integrated LVDT position feedback, and modular construction for easy maintenance, making it ideal for critical industrial systems that demand reliability and high dynamic performance. As a key product in MOOG’s portfolio, it leverages over 70 years of MOOG’s expertise in servo valve design and manufacturing, ensuring consistent performance in harsh industrial environments, particularly in aerospace and heavy industrial applications.
Detail:
|
Parameter
|
Specification
|
|
Product Model
|
MOOG D765-1506
|
|
Product Series
|
MOOG D765 Series Electro-Hydraulic Servo Valve
|
|
Valve Type
|
Two-stage electro-hydraulic servo valve with dual-nozzle flapper pilot stage
|
|
Pilot Stage
|
Dry torque motor, dual-nozzle flapper, with LVDT position feedback
|
|
Max Operating Pressure (P/A/B/X Ports)
|
315 bar (4,500 psi)
|
|
Max Operating Pressure (T Port)
|
210 bar (3,045 psi)
|
|
Rated Flow (@ 70 bar pressure drop)
|
30 L/min (7.9 gpm)
|
|
Operating Temperature Range
|
-20°C to +60°C (ambient); 0°C to +60°C (oil)
|
|
Mounting Standard
|
ISO 4401-07 (Cetop 07)
|
|
Parameter
|
Specification
|
|
Step Response Time (0→90% spool stroke)
|
6–12 ms (at 3,000 psi system pressure)
|
|
Frequency Response
|
120–200 Hz (at -3 dB phase lag, depending on flow)
|
|
Rated Electrical Signal
|
±10 V or ±10 mA; 4-20 mA (jumper selectable)
|
|
Hysteresis
|
≤ 0.5%
|
|
Linearity
|
≤ 2%
|
|
Filter Requirement
|
NAS 1638 Class 7 (oil cleanliness)
|
|
Protection Rating
|
IP65 (with matching connector)
|
|
Certifications
|
CE, ISO 9001, RoHS, WEEE
|
