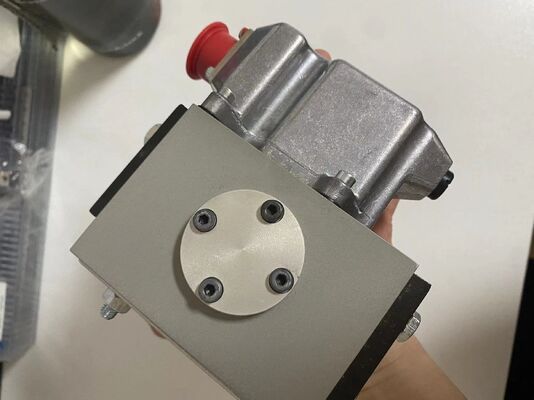

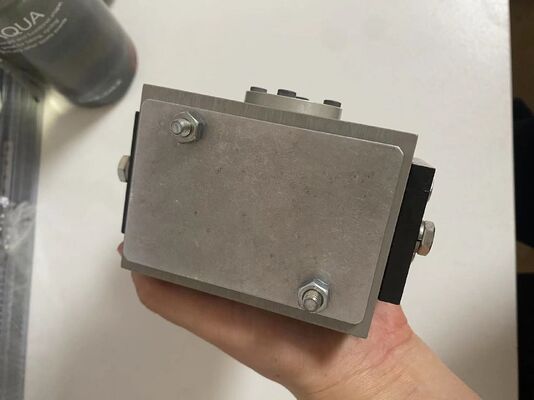

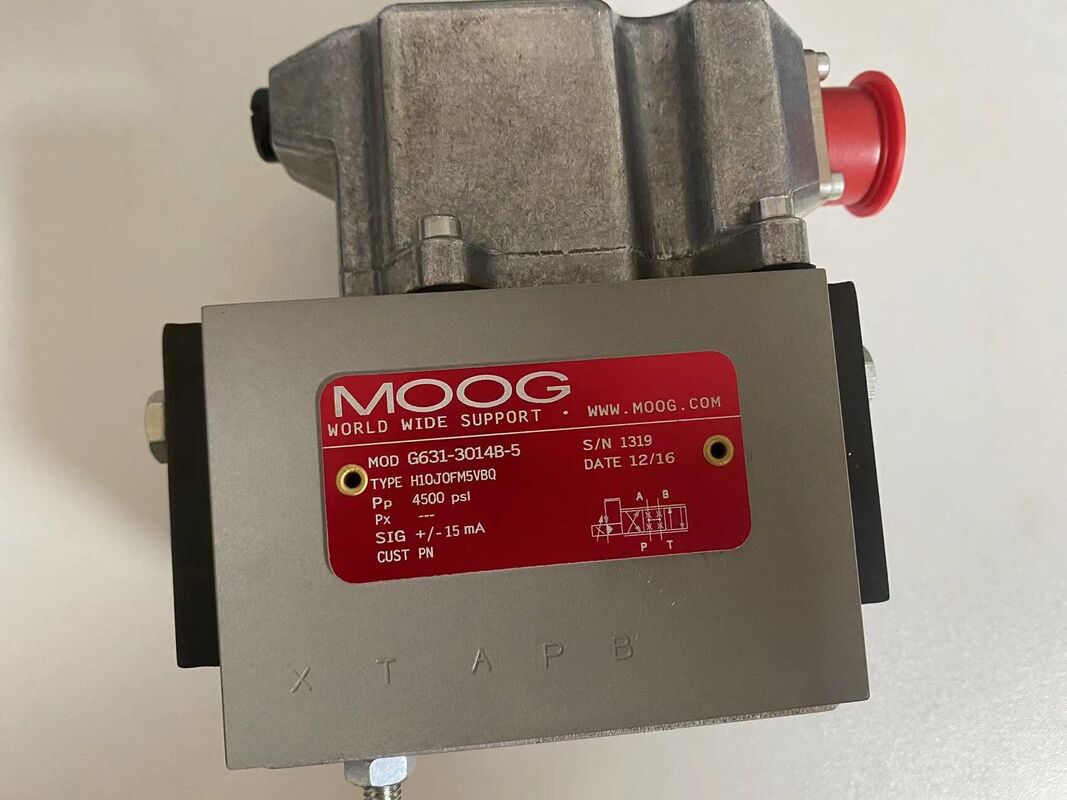

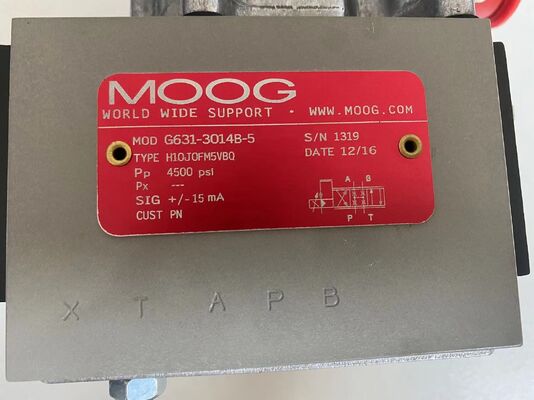

MOOG G631-3014B-5 Electro-Hydraulic Servo Valve
Product Details:
Manufacturer : MOOG
Product No. : G631-3014B-5
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The MOOG G631-3014B-5 is a high-performance electro-hydraulic servo valve, part of MOOG’s renowned 631 Series, specifically designed for applications requiring precise flow and pressure regulation. Equipped with advanced two-stage flow control with mechanical feedback (MFB) technology, this servo valve features a low-friction dual-nozzle pilot stage driven by a dry torque motor, delivering high resolution and low hysteresis for optimal control accuracy. The G631-3014B-5 boasts a robust design with a compact body, integrated fail-safe positioning, and field-replaceable first-stage filter discs for easy maintenance, making it ideal for critical industrial systems that demand reliability and high dynamic response. As a key product in MOOG’s portfolio, it leverages over 70 years of MOOG’s expertise in servo valve design and manufacturing, ensuring consistent performance in harsh industrial environments.
Detail:
|
Parameter
|
Specification
|
|
Product Model
|
MOOG G631-3014B-5
|
|
Product Series
|
MOOG 631 Series Electro-Hydraulic Servo Valve
|
|
Valve Type
|
Two-stage electro-hydraulic servo valve with mechanical feedback (MFB)
|
|
Pilot Stage
|
Symmetrical double-nozzle flapper, driven by dry torque motor
|
|
Max Operating Pressure
|
315 bar (4,500 psi)
|
|
Rated Flow (@ 35 bar pressure drop)
|
10 L/min (2.5 gpm)
|
|
Operating Temperature Range
|
-40°C to +135°C (-40°F to +275°F)
|
|
Mounting Standard
|
ISO 4401-05-05-0-94
|
|
Parameter
|
Specification
|
|
Step Response Time (100%)
|
18 ms (at 3,000 psi system pressure)
|
|
Frequency Response
|
75 Hz (at 90° phase lag)
|
|
Rated Electrical Signal
|
30 to 150 mA (single coil)
|
|
Hysteresis
|
< 3.0%
|
|
Valve Weight
|
2.2 kg (4.9 lbs)
|
|
Vibration Resistance
|
30 g, 3-axis, 10 Hz to 2 kHz (IEC standard)
|
|
Shock Resistance
|
30 g, 3-axis (IEC 60068-2-27)
|
|
Certifications
|
CE, ISO 9001, RoHS, WEEE
|
Brand:
Founded in 1951, MOOG initially focused on the design and supply of aircraft and missile components. With the development of technology, MOOG's motion control technology has been widely used in many markets and application fields such as civil aircraft cockpits, power generation turbines, Formula One racing cars, and medical infusion systems. Company founder William C. Moog was an inventor and entrepreneur. He successfully developed the electro-hydraulic servo valve in 1951, marking the start of MOOG's innovation in the motion control industry.
