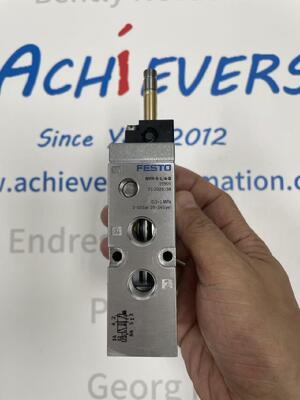

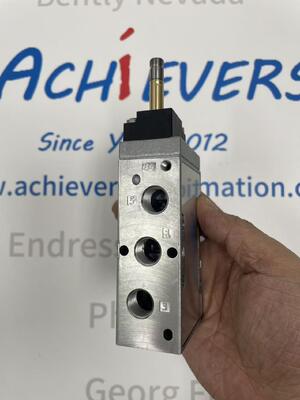

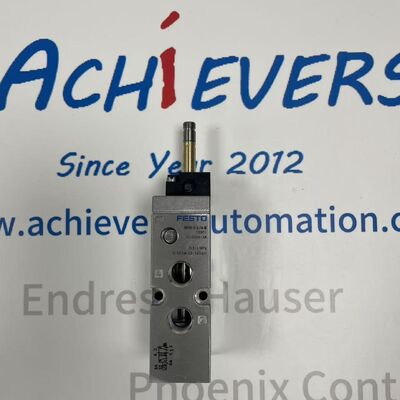

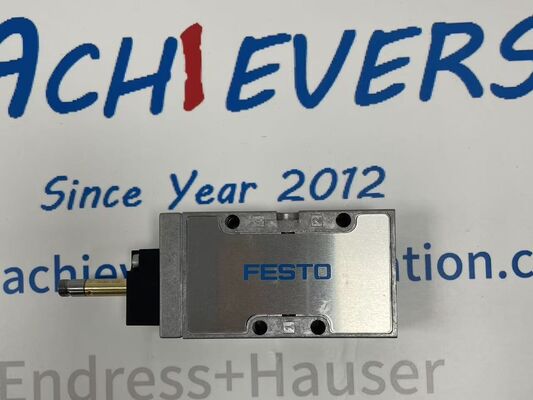

Festo MFH-5-14-B monostable (spring-return) 5/2-way solenoid valve
Description:
Manufacturer : Festo
Product No. : MFH-5-14-B
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Festo MFH-5-1/4-B is a monostable (spring-return) 5/2-way solenoid valve belonging to Festo’s MFH series, a trusted line of tiger classic solenoid valves with armature tubes for F-series coils. This valve adopts a poppet seat design with soft sealing, ensuring leak-proof performance and efficient flow control. It supports both lubricated and unlubricated compressed air operation (with lubrication required if initiated) and features a non-detenting pushbutton manual override for emergency operation. The compact design of the Festo MFH-5-1/4-B allows flexible installation via through-hole mounting or integration on Festo PR manifold rails, simplifying system layout and maintenance in control panels.
Detail:
|
Specification Category
|
Details
|
|
Product Model
|
Festo MFH-5-1/4-B (Order No. 15901)
|
|
Manufacturer
|
Festo SE & Co. KG
|
|
Product Type
|
5/2-Way Monostable Solenoid Valve
|
|
Series
|
Festo MFH Series (Tiger Classic)
|
|
Valve Function
|
5/2-Way, Single Solenoid with Spring Return
|
|
Pneumatic Connection
|
G1/4 (Ports 1, 2, 3, 4, 5)
|
|
Operating Pressure Range
|
0.2 – 1.0 MPa (2 – 10 bar)
|
|
Standard Nominal Flow Rate
|
1300 l/min (standardized to DIN 1343)
|
|
Pilot Operation
|
Internal Pilot
|
|
Electrical Connection
|
Festo “F” Series Coil (Sold Separately)
|
|
Parameter Type
|
Specifications
|
|
Housing Material
|
Die-Cast Aluminum
|
|
Seal Materials
|
NBR, TPE-U (PU)
|
|
Overall Width
|
32 mm
|
|
Grid Dimension
|
33 mm
|
|
Nominal Diameter
|
7 mm
|
|
Net Weight
|
300 g (approx.)
|
|
Operating Temperature Range
|
Ambient: -5 °C to +40 °C; Medium: -10 °C to +60 °C
|
|
Storage Temperature Range
|
-40 °C to +60 °C
|
|
Maximum Switching Frequency
|
3 Hz
|
|
Switching Times
|
Open: 12 ms; Closed: 36 ms
|
|
Degree of Protection
|
IP20
|
|
Corrosion Resistance Class
|
CRC 1 (Low Corrosion Stress)
|
Brand
Festo is a German automation company based in Esslingen am Neckar, Germany.[1] Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation. Festo Didactic also offers industrial education and consultation services and is one of the sponsors and partners of the WorldSkills Mechatronics Competitions. Sales subsidiaries, distribution centres and factories of Festo are located in 61 countries worldwide. The company was named after its founders Albert Fezer and Gottlieb Stoll.
