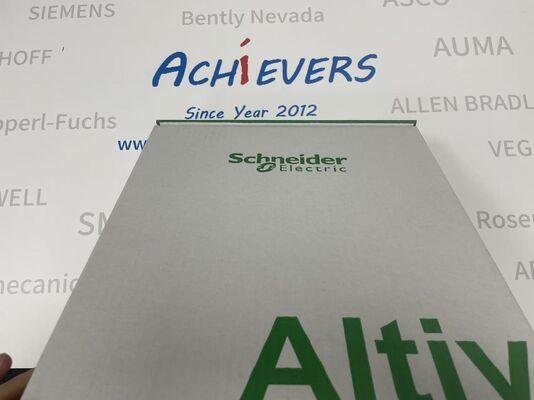

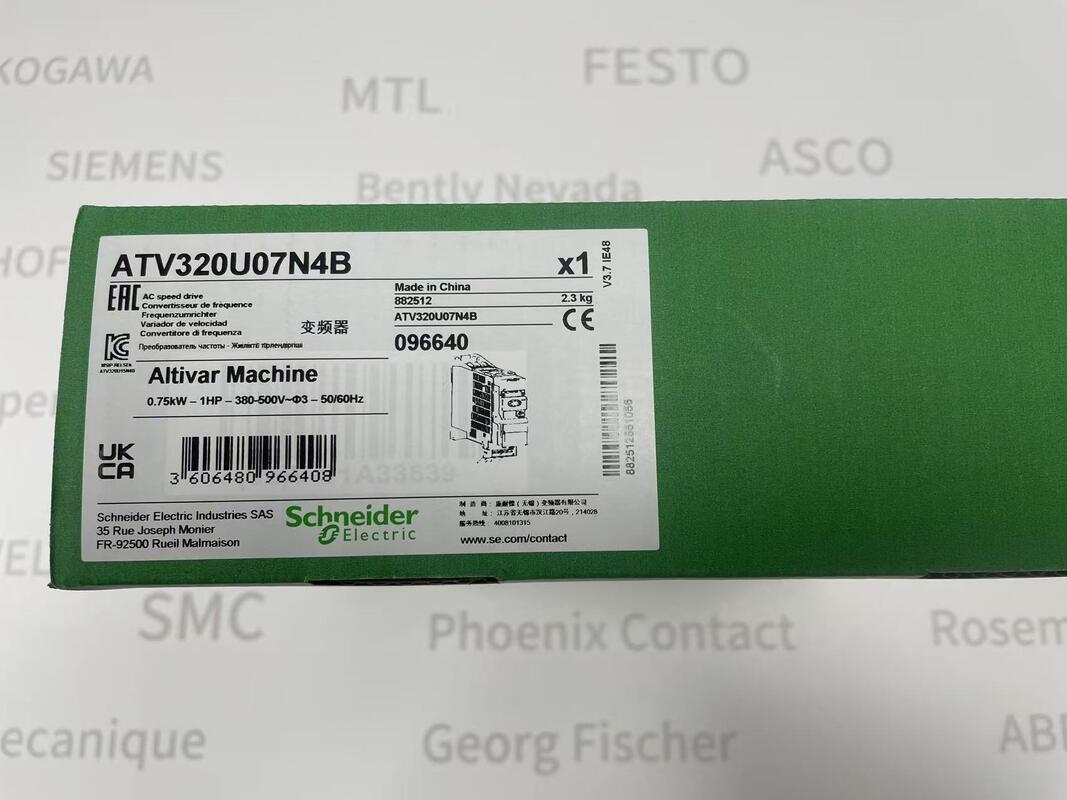

Schneider Electric ATV320U07N4B high-performance variable speed drive
Product Details:
Manufacturer :Schneider
Product No. : ATV320U07N4B
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Schneider ATV320U07N4B is a high-performance variable speed drive (VSD) belonging to Schneider Electric’s Altivar Machine ATV320 series, specifically engineered to meet the precise motor control needs of modern industrial applications. Designed for reliability, energy efficiency, and easy integration, this drive delivers consistent performance across a wide range of industrial sectors, making it an ideal choice for OEMs and end-users seeking optimized motor operation.
As a core product of Schneider Electric, the ATV320U07N4B combines robust construction with advanced control features, ensuring seamless compatibility with both asynchronous and synchronous motors. Its compact design and flexible configuration options allow for easy installation in cabinet environments, while integrated safety functions and communication protocols enhance operational safety and system connectivity.
Detail:
|
Specification
|
Details
|
|
Product Model
|
Schneider ATV320U07N4B
|
|
Product Series
|
Schneider Altivar Machine ATV320
|
|
Product Type
|
Variable Speed Drive (VSD)
|
|
Rated Motor Power (Heavy Duty)
|
0.75 kW / 1 HP
|
|
Supply Voltage
|
3-phase, 380 - 500 V AC (-15% to +10% tolerance)
|
|
Supply Frequency
|
50 - 60 Hz (-5% to +5% tolerance)
|
|
Nominal Output Current (Heavy Duty)
|
2.3 A at 4 kHz
|
|
Line Current
|
3.6 A at 380 V AC; 2.7 A at 500 V AC (Heavy Duty)
|
|
Output Frequency Range
|
0.1 - 599 Hz
|
|
IP Protection Rating
|
IP20 (conforming to EN/IEC 61800-5-1 and IEC 60529)
|
|
EMC Filter
|
Integrated, Class C2
|
|
Mounting Mode
|
Cabinet Mount (Book Format)
|
|
Category
|
Features & Specifications
|
|
Motor Control Profiles
|
Voltage/frequency ratio (2-point, 5-point), flux vector control without sensor (standard and energy-saving), quadratic U/F, sensorless vector control for synchronous motors
|
|
Safety Functions
|
STO (Safe Torque Off), SLS (Safe Limited Speed), SS1 (Safe Stop 1), SMS (Safe Maximum Speed), GDL (Guard Door Locking), SIL 3 compliant
|
|
Communication Protocols
|
Built-in Modbus Serial and CANopen; optional cards for EtherCAT, Profinet, Ethernet/IP, Profibus DP V1, DeviceNet, Ethernet Powerlink
|
|
I/O Interfaces
|
7 discrete inputs (including STO, 24 V DC; DI5 programmable as pulse input 0-30 kHz), 3 discrete outputs (open collector), 3 analog inputs (10-bit resolution), 1 software-configurable analog output (10-bit resolution)
|
|
Relay Outputs
|
Configurable relay logic (R1A: 1 NO, R1B: 1 NC, R1C, R2A: 1 NO, R2C); maximum switching current 3 A (250 V AC, resistive load) and 5 A (250 V AC for R2A/R2C)
|
|
Environmental Operating Conditions
|
Ambient temperature: -10 to +50 °C (without derating); +50 to +60 °C (with derating); robust design with IEC 60721-3-3 Class 3C3 coated PCBs for harsh environments
|
|
Regulation & Control
|
Adjustable PID regulator, automatic motor slip compensation, configurable acceleration/deceleration ramps, DC injection braking, transient overtorque (170-200% of nominal torque)
|
|
Certifications
|
CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1/2, IEC 60204-1, IEC 61000, IEC 61158, IEC 61508, IEC 61784, NOM 117, RCM, UL
|
