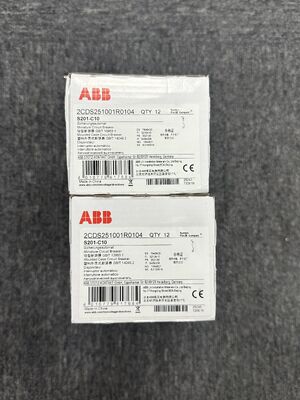

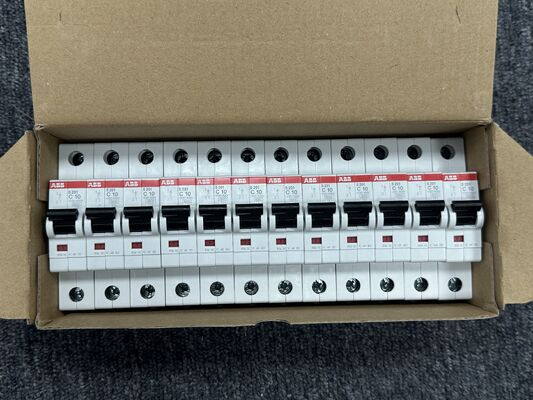

ABB S201-C10 High-Reliability Miniature Circuit Breaker for Low-Voltage Protection
Description:
Manufacturer : ABB
Product No. : S201-C10
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The ABB S201-C10 is a high-performance miniature circuit breaker (MCB) engineered by ABB, a global leader in low-voltage electrical products and industrial automation solutions. As a core product in ABB’s S200 series, the S201-C10 is designed to provide reliable overload and short-circuit protection for electrical circuits in residential, commercial, and industrial applications. With its compact design, thermal-magnetic tripping mechanism, and excellent breaking capacity, the ABB S201-C10 ensures safe and stable operation of electrical systems, minimizing downtime and protecting equipment from damage, making it a trusted choice for engineers, electricians, and system integrators worldwide.
Detail:
|
Parameter
|
Specification
|
|
Product Model
|
ABB S201-C10
|
|
Product Series
|
ABB S200 Series Miniature Circuit Breakers (MCBs)
|
|
Product Type
|
Miniature Circuit Breaker (MCB)
|
|
Number of Poles
|
1 Pole
|
|
Tripping Characteristic
|
C-Type
|
|
Rated Operational Voltage
|
230V / 400V AC; 60/110V DC
|
|
Rated Current (Iₙ)
|
10 A
|
|
Operating Temperature Range
|
-25°C to 55°C (No Condensation)
|
|
Storage Temperature Range
|
-40°C to 70°C
|
|
Enclosure Protection
|
IP20 / IPXXB
|
|
Weight
|
Approx. 125g
|
|
Technical Category
|
Details
|
|
Tripping Mechanism
|
Thermal-Magnetic (Overload: Thermal; Short-Circuit: Electromechanical)
|
|
Tripping Range
|
Thermal: 1.13-1.45A; Magnetic: 3-5A
|
|
Rated Short-Circuit Capacity (Iₙₙ)
|
6 kA (230/400V AC)
|
|
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
|
10 kA (230V AC)
|
|
Rated Service Short-Circuit Breaking Capacity (Ics)
|
7.5 kA (230V AC)
|
|
Rated Impulse Withstand Voltage (Uimp)
|
4 kV (Sea Level: 6.2 kV; 2000m Altitude: 5 kV)
|
|
Mounting Style
|
DIN Rail Mounting (35mm Standard DIN Rail)
|
|
Dimensions (W×H×D)
|
17.5mm × 88mm × 69mm
|
|
Compliance Standards
|
IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
|
|
Terminal Type
|
Screw Connection (Finger-Safe, Bi-Directional)
|
Brand
ABB Group is a Swedish-Swiss multinational electrical engineering corporation. Incorporated in Switzerland as ABB Ltd., and headquartered in Zurich, it is dual-listed on the the Nasdaq Nordic exchange in Stockholm, Sweden, and the SIX Swiss Exchange in Zurich. ABB was ranked 340th in the Fortune Global 500 list of 2020 and has been a global Fortune 500 company for 24 years.
