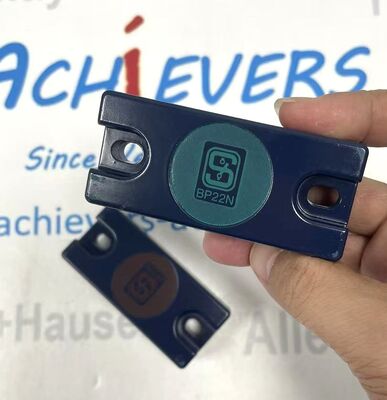

Schmersal BP 22 N (S) high-performance actuating magnet specifically engineered
Description:
Manufacturer : Schmersal
Product No. :BP 22 N (S)
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

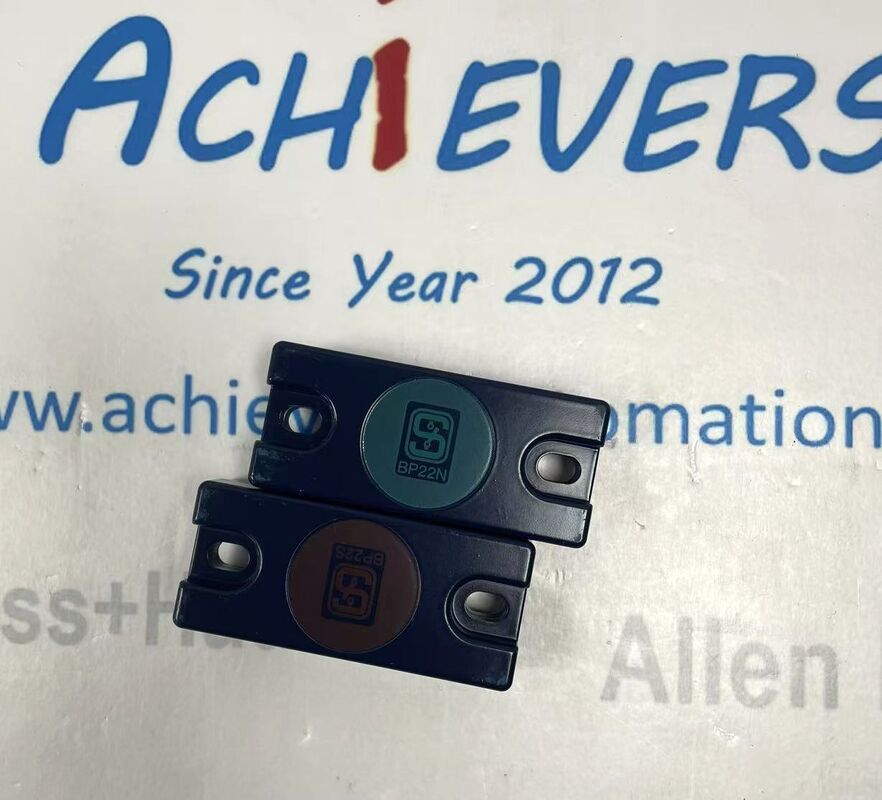

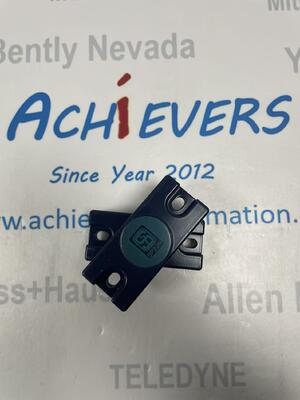

The Schmersal BP 22 N (S) is a high-performance actuating magnet specifically engineered for seamless integration with non-contact magnetic switches, delivering reliable position detection in demanding industrial environments. As a key accessory in Schmersal’s comprehensive safety and control product lineup, this actuating magnet combines robust construction, stable magnetic performance, and wide environmental adaptability, making it an essential component for precision sensing applications across various industrial sectors. Designed to work in tandem with Schmersal’s magnetic switches (such as the BN series), the BP 22 N (S) ensures consistent actuation and long-term operational stability, adhering to the rigorous quality standards that Schmersal is globally renowned for.
Detail:
|
Parameter Category
|
Specification Details (BP 22 N / BP 22 S)
|
|
Ordering Information
|
BP 22 N Article Number: 101168152; BP 22 S Article Number: 101168153; EAN Code: 4030661221236 (BP 22 N), 4030661221243 (BP 22 S); ETIM 7.0: EC002545
|
|
Magnetic Properties
|
BP 22 N: Non-magnetic (passive actuation); BP 22 S: Permanent magnet, Magnetic Flux Density: ≥ 120 mT (at 10 mm distance); Magnet Material: Neodymium Iron Boron (NdFeB)
|
|
Mechanical Dimensions
|
Diameter: 22 mm; Length: 30 mm; Mounting Thread: M8 x 1; Gross Weight: 45 g (BP 22 N), 48 g (BP 22 S)
|
|
Environmental Conditions
|
Operating Temperature Range: -40 °C to +120 °C; Protection Rating: IP67; Vibration Resistance: 10-2000 Hz, 10 g; Shock Resistance: 50 g (11 ms)
|
|
Material & Construction
|
Housing Material: Stainless Steel (1.4301); Surface Treatment: Polished; Mounting Type: Threaded Mounting (M8)
|
|
Compatibility
|
Compatible with Schmersal Magnetic Switches: BN 20 Series, BN 30 Series, BN 40 Series; Actuation Distance: Up to 50 mm (depending on matching switch model)
|
Brand
Schmersal is a German industrial low-voltage switch and machine control component company headquartered in Wuppertal, Germany, founded in 1945. After years of technological and product innovation, the company has developed into a global group company with approximately 1,300 employees worldwide and annual sales of 170 million euros. In addition, Shanghai Schmersal Electric Co., Ltd. is a leading domestic professional supplier of material conveying automation and monitoring. It was established in 1999 and is headquartered in the southern area of Shanghai Jinqiao Processing Zone. It is mainly engaged in product solutions and services of sensing technology, sensing measurement and control systems, and material conveying systems.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, Endress+Hauser, MTL, Allen-Bradley, Pepperl+Fuchs, YOKOGAWA,Rosemount, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, Honeywell, Siemens and etc. If you have any request, please do not hesitate to contact us.
