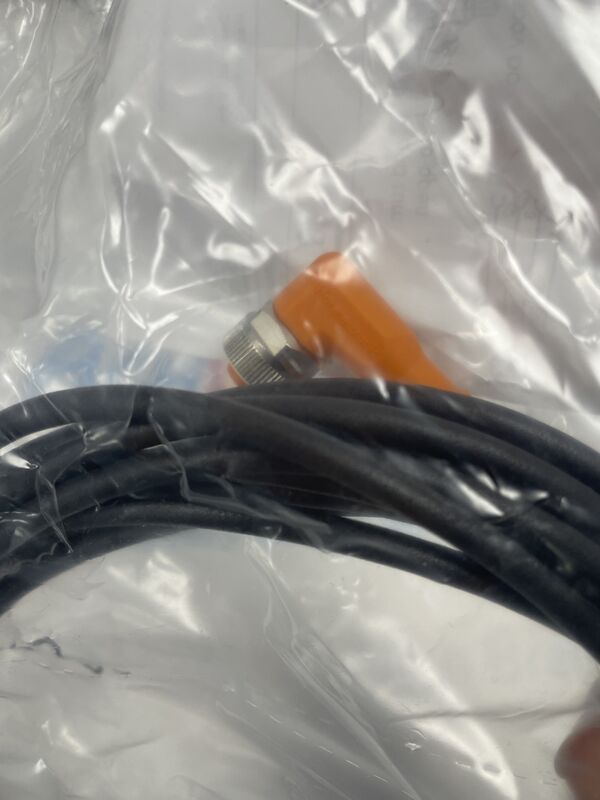

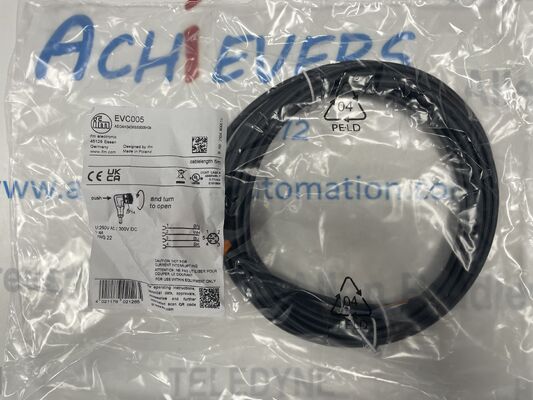

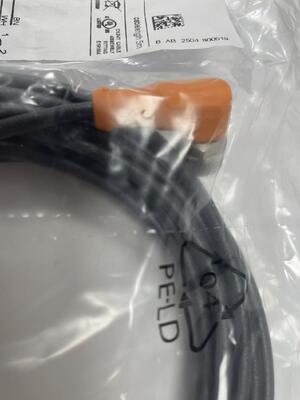

IFM EVC005 high-performance M12 sensor cable engineered by ifm Electronic
Product Details:
Manufacturer : IFM
Product No. :EVC005
https://www.achievers-automation.com More Products
The ifm EVC005 is a high-performance M12 sensor cable engineered by ifm Electronic, designed to deliver reliable signal and power transmission in harsh industrial environments. As a core component of ifm’s sensor connectivity product line, this 4-pole angled female cable features a halogen-free, high-flex PUR jacket, gold-plated contacts, and a vibration-resistant locking mechanism—ensuring durability against oils, coolants, weld slag, and extreme mechanical stress. With IP65/IP67/IP68/IP69K protection ratings and compatibility with drag chain applications, the EVC005 is optimized for factory automation, robotics, and process control systems requiring stable, long-lasting sensor connections. It complies with CULUS and RoHS standards, meeting global industrial requirements for safety and environmental sustainability.
Description:
|
Basic Information
|
Product Model
|
ifm EVC005 (Part Number: ADOAH040MSS0005H04)
|
|
|
Product Type
|
M12 Sensor Cable (Angled Female Socket)
|
|
|
Compliance Standards
|
CULUS, RoHS, DIN EN 60512-5-2
|
|
Electrical Specifications
|
Rated Voltage
|
≤250 V AC / ≤300 V DC
|
|
|
Maximum Current Load
|
4 A (total)
|
|
|
Number of Poles/Conductors
|
4 poles; 4 conductors (4 x 0.34 mm² / 22 AWG)
|
|
|
Contact Material
|
Gold-plated
|
|
|
Protection Class
|
II
|
|
Cable & Connector Details
|
Cable Length
|
5 m
|
|
|
Cable Diameter
|
4.3 mm (outer)
|
|
|
Jacket Material
|
PUR (Polyurethane)
|
|
|
Jacket Properties
|
Halogen-free, silicone-free, oil/coolant resistant
|
|
|
Jacket Color
|
Black
|
|
|
Connector Type
|
M12 angled female socket (A-coded)
|
|
|
Connector Body Material
|
TPU (Thermoplastic Polyurethane)
|
|
|
Coupling Nut Material
|
Nickel-plated brass
|
|
|
Sealing Material
|
FKM (Viton)
|
|
Mechanical Performance
|
Tightening Torque
|
0.6–1.5 Nm
|
|
|
Drag Chain Suitability
|
Yes (≥5 million bending cycles)
|
|
|
Minimum Bending Radius
|
10 x cable diameter (flexible use)
|
|
|
Travel Speed
|
Max. 3.3 m/s (horizontal travel)
|
|
|
Torsional Strain
|
±180°/m
|
|
|
Dimensions (W×H×D)
|
26.5 mm × 15.5 mm × 36.5 mm
|
|
|
Weight
|
154.9 g
|
|
Environmental Ratings
|
Protection Class
|
IP65, IP67, IP68, IP69K
|
|
|
Operating Temperature (Static)
|
-25°C to 90°C (CULUS: -25°C to 75°C)
|
|
|
Operating Temperature (Moving)
|
-25°C to 90°C (CULUS: -25°C to 75°C)
|
|
|
Storage Temperature
|
-25°C to 55°C
|
|
|
Storage Humidity
|
10–100% (per IEC 60721-3-1 Class 1K22)
|
