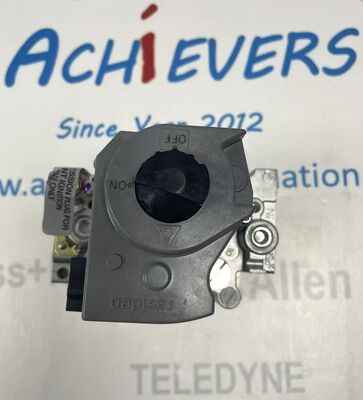

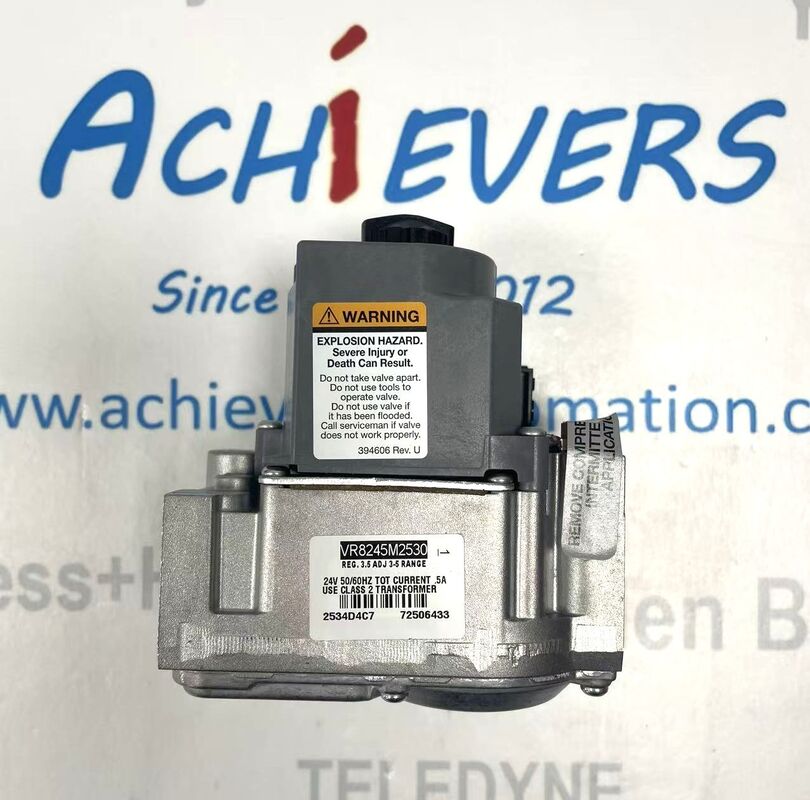

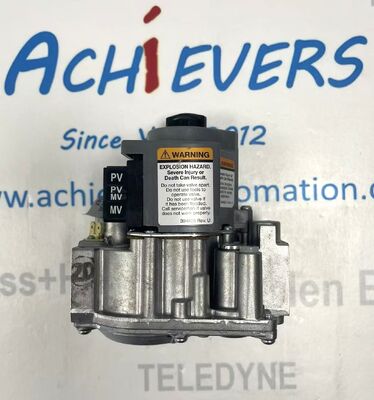

Honeywell VR8245M2530 Universal Electronic Ignition Gas Control Valve
Manufacturer : Honeywell
Product No. : VR8245M2530
https://www.achievers-automation.com More Products
Description:
The Honeywell VR8245M2530 is a high-reliability universal electronic ignition gas control valve engineered for 24 VAC gas-fired appliances. As a core component of Honeywell’s gas control product line, it integrates multiple safety and control functions, supporting three ignition types (Direct Spark Ignition/DSI, Hot Surface Ignition/HSI, Intermittent Pilot/IP) to replace a wide range of legacy gas control valves. Designed with compact dimensions and flexible mounting capabilities, this single-stage gas valve delivers stable gas flow regulation and reliable safety shutoff, making it ideal for residential and light commercial heating systems, furnaces, and other gas-fired equipment. Its compliance with UL and CSA safety standards ensures long-term operational safety and performance consistency.
Detail:
|
Basic Information
|
Product Model
|
Honeywell VR8245M2530
|
|
|
Product Type
|
Single-stage universal electronic ignition gas control valve
|
|
|
Compliance Standards
|
UL Component Recognized (M CCZ 2, MH 5323); CSA International (112395)
|
|
Fuel & Capacity
|
Compatible Fuels
|
Natural gas (NG); LP gas (with included conversion kit)
|
|
|
Capacity (NG)
|
20,000 – 200,000 BTUH (150 cu ft/hour at 1 inch WC pressure drop)
|
|
|
Pressure Rating
|
1/2 psi (3.5 kPa)
|
|
|
Pressure Regulator Setpoint
|
3.5 inch WC (0.9 kPa)
|
|
Connections
|
Inlet/Outlet Size
|
1/2" NPT (straight-through body pattern)
|
|
|
Pilot Gas Outlet
|
Compression fitting for 1/4" OD tubing
|
|
|
Pressure Tapping
|
1/8" NPT with plug
|
|
|
Included Fittings
|
1/2" × 3/8" reducer bushing; natural-to-LP conversion kit
|
|
Electrical Specifications
|
Operating Voltage
|
24 VAC
|
|
|
Frequency
|
50 Hz / 60 Hz
|
|
|
Electrical Connections
|
1/4" quick-connect male terminals
|
|
Physical & Mounting Traits
|
Dimensions (H×W×D)
|
5 3/8" × 4 1/16" × 2 11/16" (135 mm × 104 mm × 69 mm)
|
|
|
Weight
|
Approximately 2 pounds (0.91 kg)
|
|
|
Mounting Method
|
0–90° rotation from upright position (supports vertical/upright mounting)
|
|
|
Protection & Design
|
Internal inlet screen (contaminant filtration); compact, space-saving profile
|
|
Operational Characteristics
|
Ignition Types Supported
|
Direct Spark Ignition (DSI), Hot Surface Ignition (HSI), Intermittent Pilot (IP)
|
|
|
Operating Temperature Range
|
-40°C to 79°C (-40°F to 175°F)
|
|
|
Opening Characteristic
|
Standard opening
|
