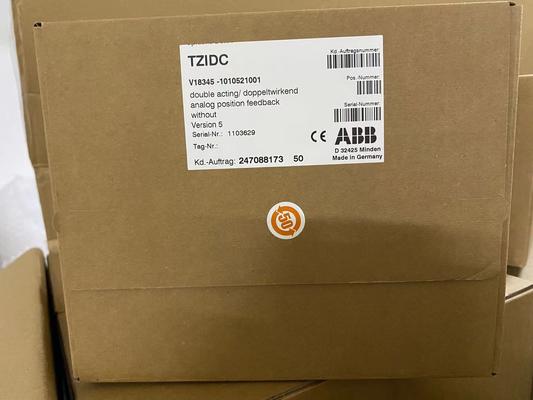

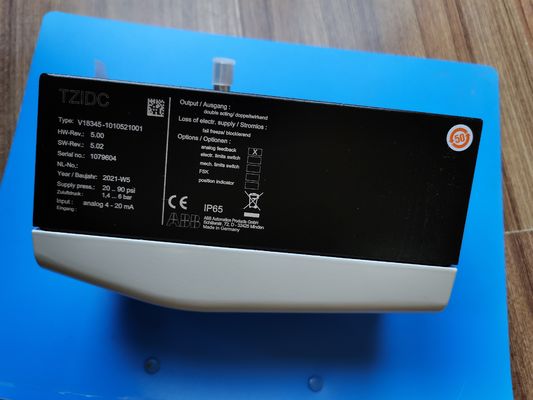

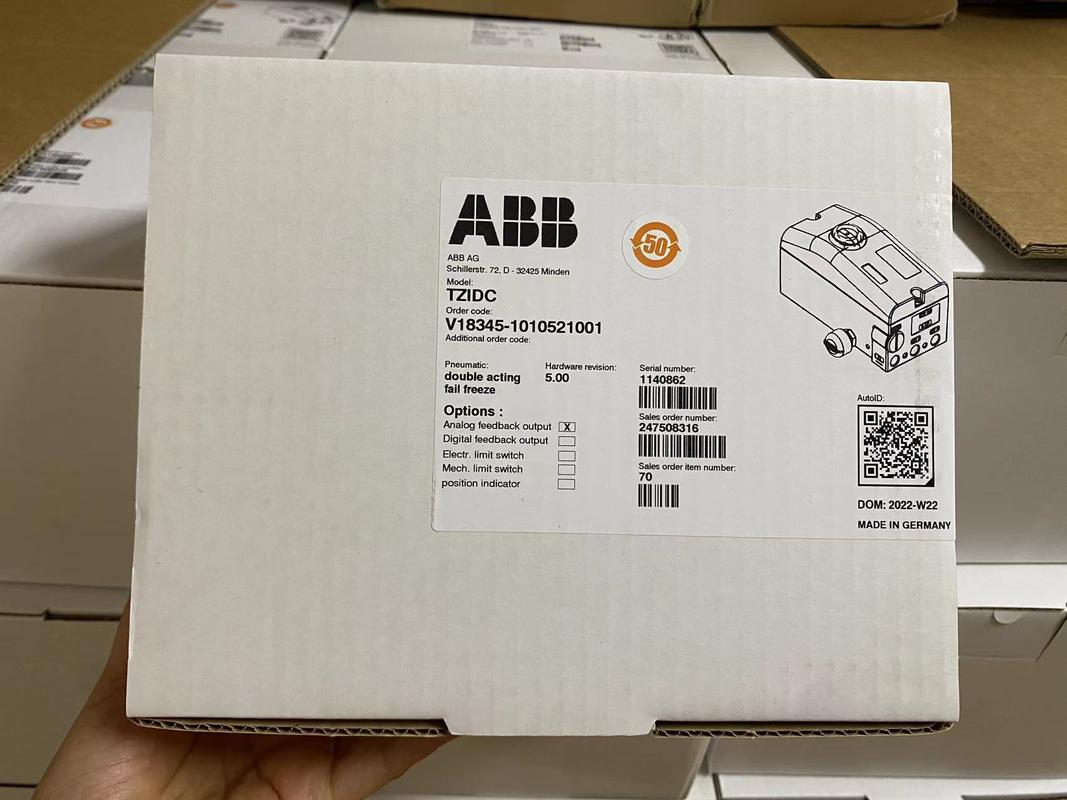

The ABB V18345-1010521001 is a microprocessor-based electro-pneumatic smart positioner engineered to precisely regulate the stroke of pneumatic linear and rotary control valve actuators. This specific variant features double-acting pneumatic output, standard HART 7 digital communication, built-in LCD local operator panel, and plug-in 4–20mA analog position feedback module.
Detail:
| Parameter Item |
Technical Specification |
| Full Part Number |
V18345-1010521001 |
| Manufacturer |
ABB |
| Product Line |
TZIDC Digital Smart Valve Positioner |
| Control Signal Input |
4–20mA DC two-wire, HART 7 protocol |
| Supply Power Range |
11 VDC ~ 30 VDC, Max loop impedance 485Ω @ 20mA |
| Pneumatic Actuator Mode |
Double Acting (Dual air output ports) |
| Rated Supply Air Pressure |
1.4 bar ~ 8 bar (20–116 psi) |
| Max Air Output Capacity |
≥13.5 kg/h |
| Static Air Consumption |
≤0.03 kg/h under steady holding state |
| Position Feedback Module |
Built-in 4–20mA analog position feedback |
| Local Operation Interface |
LCD digital display + physical setting buttons |
| Actuator Compatibility |
Linear stroke 20–150mm; Rotary 0–125° travel |
| Mounting Standard |
NAMUR linear / VDI/VDE 3845 rotary actuator mounting |
| Housing Material |
Varnished Die-Cast Aluminum Alloy |
| Electrical Cable Port |
1/2-14 NPT internal thread |
| Pneumatic Air Connection |
1/4-18 NPT female thread |
| Overall Dimension |
100mm × 80mm × 42mm |
| Net Weight |
1.1 kg |
| Position Control Accuracy |
≤ ±0.5% Full Scale |
| Step Response Time |
< 1 second for full stroke travel |
| Specification Item |
Technical Value |
| Operating Ambient Temperature |
-40 °C ~ +85 °C |
| Storage Temperature Range |
-40 °C ~ +85 °C |
| Ingress Protection Grade |
IP65, NEMA 4X |
| Vibration Resistance |
Up to 10g, 10–80Hz with <1% position drift |
| Shock Resistance |
30g peak impact per IEC 60068-2-27 |
| Built-in Diagnostic Functions |
Valve friction monitoring, air supply fault, travel deviation alert, NAMUR NE 107 fault reporting |
| Supported Flow Characteristic Curves |
Linear, Equal Percentage, Quick Opening, Custom User Curve |
| Functional Safety Rating |
SIL 2 certified per IEC 61508 |
| Hazardous Area Certification |
Standard non-explosion-proof version; ATEX/IECEx variants available separately |
| Global Compliance Certifications |
CE, cULus, RoHS compliant |
| Anti-Corrosion Class |
CRC 2 for standard industrial workshop atmosphere |
| Allowed Supply Air Medium |
Dry, filtered compressed air ISO 8573-1 Class 3 |
| Communication Functions |
Remote parameterization, valve data logging, diagnostic upload via HART handheld / DCS |
| Auto-Commissioning Feature |
One-click auto zero/span calibration for all actuator stroke ranges |
