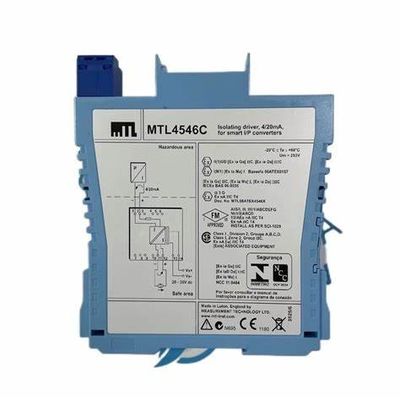

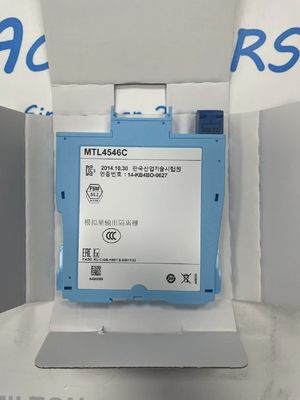

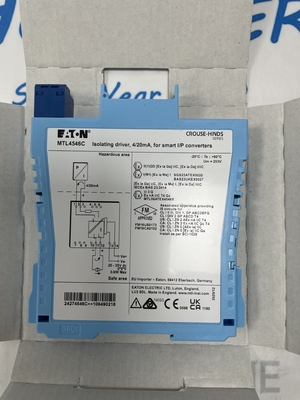

MTL4546C Intrinsically Safe Isolators Contact Us Now
Product Details:
Manufacturer : MTL
Product No. : MTL4546C
https://www.achievers-automation.com More Products
Description:
MTL4546/C/Y – MTL5546/Y ISOLATING DRIVER for 4–20mA HART® valve positioners with line fault detection The MTLx546 accepts a 4/20mA floating signal from a safe-area controller to drive a current/pressure converter (or any other load up to 800Ω) in a hazardous area. For HART valve positioners, the module also permits bi-directional transmission of digital communication signals. Process controllers with a readback facility can detect open or short circuits in the field wiring: if these occur, the current taken into the terminals drops to a preset level. The MTL4546C and the MTLx546Y are very similar to the MTLx546 except that they provide open circuit detection only (i.e. no short-circuit detection).
Detail:
| Working range |
4 to 20mA |
| Digital signal bandwidth |
500Hz to 10kHz |
| Maximum load resistance |
800Ω (16V at 20mA) |
| Minimum load resistance |
90Ω (short-circuit detection at < 50Ω) |
| Output resistance |
> 1MΩ |
| Under/over range capability |
Under range = 1mA Over range = 24mA (load ≤ 520Ω) |
| Input and output circuit ripple |
< 40µA peak-to-peak |
| Transfer accuracy at 20°C |
Better than 20µA |
| Temperature drift |
< 1.0µA/°C |

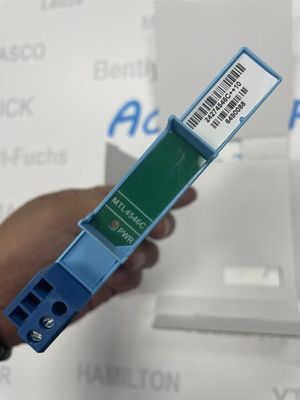

| LED indicator |
Green: power indication |
