Eaton T0-2-15679/EA/SVB
Product Details:
Manufacturer : Eaton
Product No. : T0-2-15679/EA/SVB
https://www.achievers-automation.com More Products
Description:

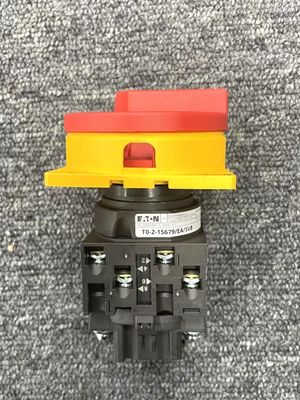

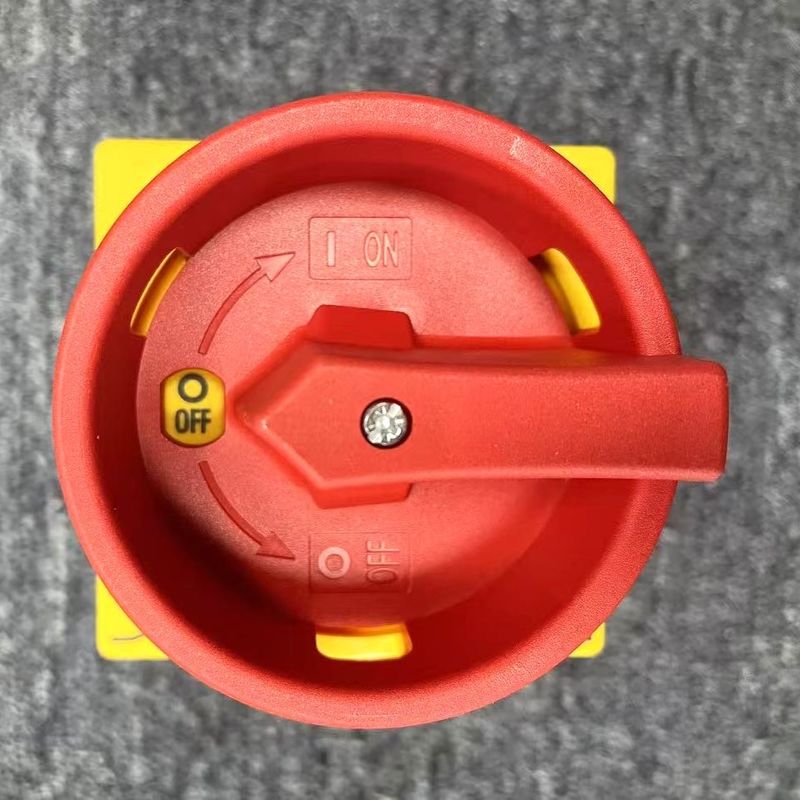

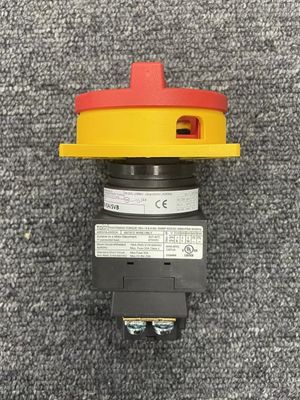

Eaton Moeller® series T0 Main switch, T0, 20 A, flush mounting, 2 contact unit(s), 3 pole, 1 N/O, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position
| Product Length/Depth |
111 mm |
| Product Height |
74 mm |
| Product Width |
65 mm |
| Product Weight |
0.142 kg |
| Certifications |
CE |
|
CSA-C22.2 No. 94 |
|
UL |
|
UL File No.: E36332 |
|
IEC/EN 60947-3 |
|
UL 60947-4-1 |
|
CSA File No.: 012528 |
|
IEC/EN 60204 |
|
IEC/EN 60947 |
|
UL Category Control No.: NLRV |
|
CSA-C22.2 No. 60947-4-1-14 |
|
VDE 0660 |
|
CSA |
|
CSA Class No.: 3211-05 |
| Catalog Notes |
Rated Short-time Withstand Current (Icw) for a time of 1 second |
| Product Category |
Main switch |
| Features |
Version as main switch |
|
Version as emergency stop installation |
|
Version as maintenance-/service switch |
| Actuator color |
Red |
| 10.10 Temperature rise |
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating |
Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility |
Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function |
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance |
Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures |
Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat |
Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects |
Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation |
UV resistance only in connection with protective shield. |
| 10.2.5 Lifting |
Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact |
Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions |
Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies |
Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances |
Meets the product standard's requirements. |
| 10.5 Protection against electric shock |
Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components |
Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections |
Is the panel builder's responsibility. |
| 10.8 Connections for external conductors |
Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength |
Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage |
Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material |
Is the panel builder's responsibility. |
| Fitted with: |
Red rotary handle and yellow locking ring |
| Operating frequency |
1200 Operations/h |
| Pollution degree |
3 |
| Climatic proofing |
Damp heat, constant, to IEC 60068-2-78 |
|
Damp heat, cyclic, to IEC 60068-2-30 |
| Rated impulse withstand voltage (Uimp) |
6000 V AC |
| Rated operational power star-delta at 500 V, 50 Hz |
7.5 kW |
| Rated operational power star-delta at 690 V, 50 Hz |
5.5 kW |
| Rated permanent current at AC-21, 400 V |
20 A |
| Rated uninterrupted current (Iu) |
20 A |
| Static heat dissipation, non-current-dependent Pvs |
0 W |
| Switching power at 400 V |
5.5 kW |
| Voltage per contact pair in series |
60 V |
| Rated operational power at AC-3, 500 V, 50 Hz |
5.5 kW |
| Device construction |
Built-in device fixed built-in technique |
| Rated short-time withstand current (Icw) |
320 A, Contacts, 1 second |
|
0.32 kA |
| Electrical connection type of main circuit |
Screw connection |
| Design |
15679 |
| Mounting position |
As required |
| Actuator type |
Door coupling rotary drive |
