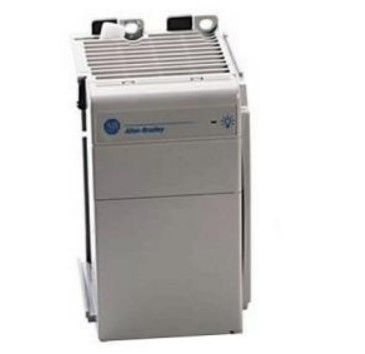

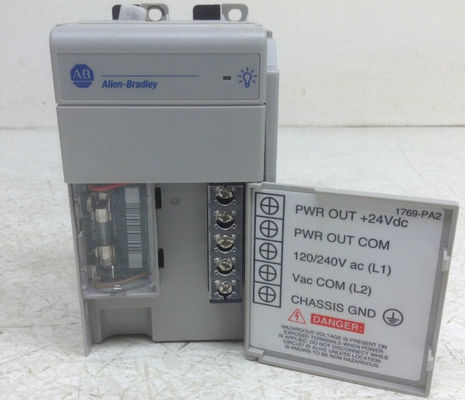

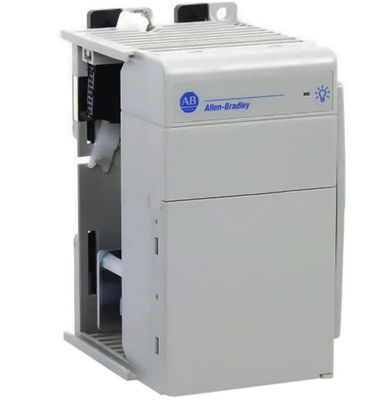

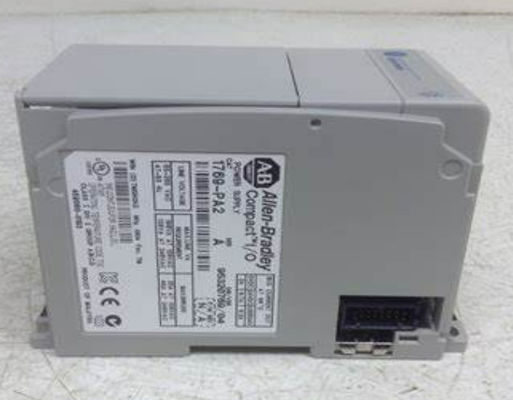

1769-PA2 ALLEN BRADLEY CompactLogix AC 2A/0.8A Power Supply
The Allen-Bradley 1769-PA2 is a 1769 CompactLogix Power Supply. This Power Supply has an input voltage range of 85 - 265VAC, operating at a nominal input of 120V/220V AC. It has a Current capacity of 2.0A at 5.0V and 0.8A at 24VDC.
The Allen-Bradley 1769-PA2 is a CompactLogix I/O power supply. This power supply is primarily used as I/O power supply, installed in a CompactLogix assembly or to an expansion I/O bank. It provides power to the modules attached on both direction of the module installed to a system in consideration to the required Power Supply distance rating.
This power supply has a dimension of 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) and an approximate weight of 525 g (1.16 lb). As standard to CompactLogix platform, this power supply module also support installation to a DIN or directly to a mounting plate.
This power supply is UL Listed for Class 1, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S. and Canada. See UL File E10314, Australian Radiocommunications Act, compliant with: AS/NZS CISPR 11; Industrial Emissions and European Union 2004/108/EC EMC Directive compliant.
The 1769-PA2 is a 1769 CompactLogix Power supply, manufactured by Allen-Bradley. This power supply has a current capacity of 0.8A at 24 VDC.
Technical Specifications
| Manufacturer |
Rockwell Automation / Allen-Bradley |
| Brand |
Allen-Bradley |
| Part Number/Catalog No. |
1769-PA2 |
| Product Type: |
I/O Power Supply |
| Module Type |
AC Power Supply Module |
| Product Line |
CompactLogix |
| Input Voltage range: |
85…265V AC |
| Input Power |
120 Volts AC |
| Input frequency range: |
47…63 Hz |
| Shipping Weight |
2 pounds |
| Power supply distance rating: |
8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module. |
| Power consumption: |
100VA @ 120V AC; 130VA @ 240V AC |
| Shipping Dimensions |
8 x 8 x 5 inches |
| Power dissipation: |
8 W @ 60 °C (140 °F) |
| Shipping Dimensions |
8 x 8 x 5 inches |
| Current capacity @ 5V DC: |
2.0 A |
| Enclosure Type Rating |
None (Open Style) |
| Wire Type |
Copper-90 degrees |
| Current capacity @ 24V DC: |
0.8 A |
| Solid Wire Size |
22 to 14 AWG |
| Inrush current, max: |
25 A @ 132V AC |
| Fuse type: |
Littelfuse 02153.15MXP; Wickmann 19195-3.15A |
| Stranded Wire Size |
22 to 16 AWG |
| UPC |
10662468992951 |
| Dimensions (HxWxD), approx.: |
118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) height including mounting tabs is 138 mm (5.43 in.) |
| Weight: |
525 g (1.16 lb) |
| Wire size: |
14 AWG (2.5 mm2 ) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max |
| Certifications: |
c-UL-us; CE; C-Tick |
