Product Details:
Payment & Shipping Terms:
|
| Manufacture: | Allen Bradley | Model: | 22F-D2P5N103 |
|---|---|---|---|
| Input Phase: | 3-Phase | Input Voltage: | 340-528 VAC |
| Amperage: | 2.5 | Wattage: | 0.75 Kilowatt |
| Enclosure Type: | Open- IP20 | Output Voltage: | 0-460VAC |
| Highlight: | PowerFlex 4m AC Drive,0.75 kW PowerFlex 4m AC Drive,1 HP PowerFlex 4m AC Drive |
||
Product Details:
Manufacturer : ALLEN BRADLEY
Product No. : 22F-D2P5N103
Product Family : PowerFlex 40P

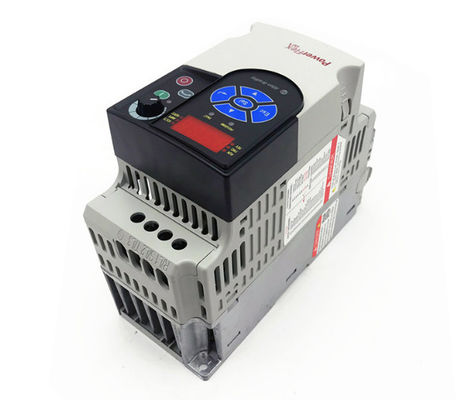

The Allen-Bradley 22F-D2P5N103 is a PowerFlex4M AC Drive. It is a compact PowerFlex drive, but it provides significant motor speed control in a compact and economical package. The 22F-D2P5N103 meets the needs of a broad range of applications with the simple programming and configuration and feed-through wiring. The 22F-D2P5N103 drive is a 3-phase 480 Volt AC input voltage drive, with input frequency of 50-60 Hertz applicable ofr use with AC motors rates 2.5 A, and 0.75 kW or 1 HP motors.
The 22F-D2P5N103 has 5 I/O terminals, compatible for 24 Volt DC control logic which can be set for either source or sink. It is a Frame A-Size drive and supports DIN rail and panel mounting for easy installation. It has an IP20, NEMA /UL enclosure that allows protection against solid objects up to 12 millimeters in size. The 22F-D2P5N103 comes with a 4-digit display keypad and 10 additional LED indicators for user control. It can be effectively used in a noisy environment over long distances because it has RS-485 communication parts.
The 22F-D2P5N103 drive has various features such as robust overload protection and speed regulation for its complete speed range. Zero stacking allows it to use less panel space between drives. The removable MOV ensures reliable operation even for ungrounded systems. A relay pre-charge limits the current inrush and the settable DIP switch provides control wiring flexibility. The 22F-D2P5N103 also provides Volts/Hertz control performance, IR and slip compensation. Programming it with the popular Logix platform saves development time.
With premiere integration option, drive parameters may be directly read and written via communication link, utilizing the embedded RS485 communication interface or by installing optional communication adapters such as Ethernet I/P, DeviceNet and Profibus.
The 22F-D2P5N103 is a 340-528VAC, 3-phase powered equipment, with output voltage of 0-460VAC, 3-Phase, output current of 2.5 Amperes and Power output applicable for motors rated 0.75kW (1.0 HP). This device is basically used for low capacity motors however, the accuracy and efficiency remain the similar to larger drives as this drive features the standard capability of the PowerFlex 523 family.
Technical Specifications
| Part Number/Catalog No. | 22F-D2P5N103 |
| Series | PowerFlex |
| Module Type | PowerFlex 4M Drive |
| Amperage | 2.5 |
| Wattage | 0.75 Kilowatt |
| Enclosure Type | Open- IP20 |
| Input Power | 480 Volts AC |
| Phase | Three-Phase |
| Filter | Without CE Compliant Filter |
| Horsepower | 1 Horsepower |
| Communication | RS-485 |
| Indicators | 10 LEDs |
| UPC | 820919785177 |
| UNSPSC | 39122001 |
| Optional communication protocols: | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Output Power: | 0.75 kW (1.0 HP) |
| Output Current: | 2.5 A |
| Output Voltage: | 0-460VAC |
| Input Current: | 3.5 A |
| Input Phase: | 3-Phase |
| Input Voltage: | 340-528 VAC |
| Product Family: | PowerFlex 40P |
| Manufacturer: | Rockwell Automation / Allen-Bradley |
| I/O: | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation: | Panel Mount |
| Brand | Allen-Bradley |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Built-in communication port: | RS485 |
