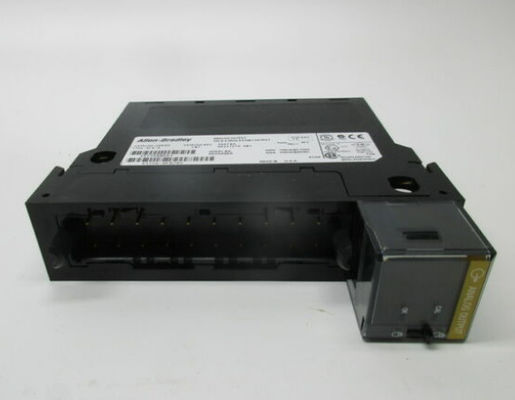

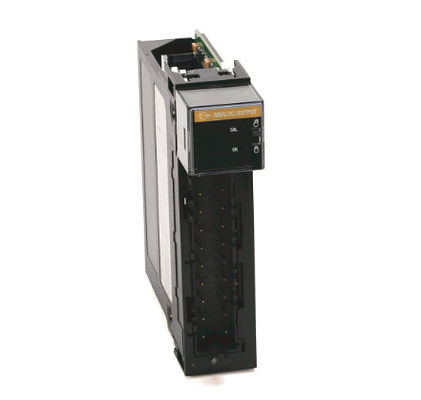

1756-OF8 ALLEN BRADLEY ControlLogix 8 Pt A/O I or V Module ± 10V 0…20 mA

Product Details:
Manufacturer : ALLEN BRADLEY
Product No. : 1756-OF8
Product Type : ControlLogix 8 Pt A/O I or V Module

The 1756-OF8 Voltage/Current Output Analog Module by AB is a module with 8 voltage or current analog outputs and it is fitted into any slot of the ControLogix Chassis. It has an output rating of either ± 10 Volts or 0 to 20 mA with a signal resolution of 15-bits across 21 mA and 15 bits across 10.4 Volts and it has a backplane current of 210 mA at 24 Volts DC and 150 mA at 5.1 Volts DC with a total power rating of 5.8 Watts. The module has a voltage or current output range of either -10 to 10V or 4 to 20 mA and the maximum power consumption of its circuit is 5.8 Watts. The 1756-OF8 offers a Circuit Detection feature with over-voltage protection at 24 Volts DC and a short-circuit protection by electronically limiting the current to 21mA or less.

The 1756-OF8’s voltage or current settling time is 2 milliseconds and it has a calibration accuracy of 0.05%, and a module calibration interval of 12 months. When operational, it has an offset drift of 50 ppm/degrees Celsius and 0.1 ppm/degrees Celsius and temperature-dependent gain drift of 25 ppm/degrees Celsius and 50 ppm/degrees Celsius (current). The module has a scan time of 12 milliseconds for floating point and 8 milliseconds for integer and has an overall module error of 0.15% (in voltage mode) and 0.3% (in current mode). The1756-OF8 module has an isolation voltage of 250 Volts using reinforced insulation tested 1350 Volts AC for 2 seconds between the output channels and the backplane. It has a T4A (North America), T4 (ATEX), and T4 (IEC) temperature codes and comes in an open-style enclosure. The 1756-OF8’s operational temperature ranges between 0 and 60 degrees Celsius and it is designed to maintain its function at a shock rate of 30G and a vibration of 2G at 10 to 500 Hertz.
